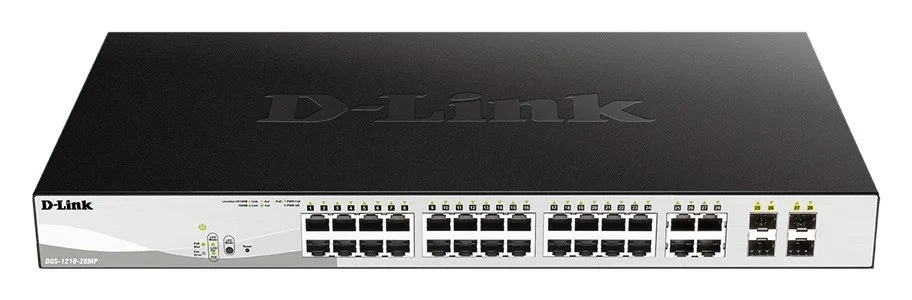

D-Link Switch DGS-1210-28MP 24GE PoE+ 4SFP

D-Link Switch DGS-1210-28MP 24GE PoE+ 4SFP

Description:

DGS-1210 Series Gigabit Managed Smart+ Switches

• L2 management and security with L3 capabilities
• CLI and web interface
• Static and MSTP routes
• PoE option
• Dual images and configurations
• Lifetime-Limited warranty upon registration

CLI command line via Telnet

Support for a compact command line interface for system configuration and management.

Static routing

Segregation of L3 traffic between switches, regardless of VLAN segemntation.

Fibre optic uplink ports

Ideal for connecting distributed devices while maintaining gigabit throughput.

PoE

The DGS-1210+ switch family includes switches with a large PoE power budget for easy installation of IP phones, wireless access points and IP cameras.

Dual software images and configuration files

Perform firmware updates and configuration testing without any risk.

Surveillance Mode Interface

D-Link’s easy-to-use Surveillance Mode interface allows you to instantly recognise the topology of installed cameras.

Limited lifetime

Register your product to benefit from the Lifetime Limited Warranty.

Advanced L2 management with L3 static routes

Advanced network management options for the DGS-1210 Smart+ family of switches are available via the CLI console or a browser-based graphical user interface. This gives your business the ability to use VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routes, dual software images and dual configuration files.

With powerful security features in the form of IGMP snooping, access control lists, port security tools and the D-Link Safeguard Engine, which protects the network from malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ switch family is a versatile tool for network edge and access environments.

Fibre optic Uplink ports

Network expansion to suit the needs of any business is possible with fibre uplink ports with advanced management and security features.

D-View 7: free network design and management system

D-Link’s free Network Assistant (DNA) system provides information on all connected devices and speeds up initial configuration. The free D-View 7 network management system comes with a licence for 25 nodes and 2 probes and full access to management tools. An optional licence upgrade allows for expanded network and analysis capabilities.

Energy saving

D-Link’s DGS-1210+ family of switches with D-Link Green technology enables energy savings without affecting performance or functionality.

Surveillance Mode

Select Surveillance Mode in the graphical user interface to take advantage of easy-to-use monitoring features that also allow you to easily manage your surveillance network. The devices that make up the security system are automatically detected and grouped in a dedicated Auto Surveillance VLAN, so that surveillance traffic is secured and is transmitted unhindered.

Switch class: SMART
Application: Medium and large companies
Switch layer: L2
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 28
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): 24
Number of PoE+ ports: None
Number of COMBO ports: 4
Number of SFP ports: 4
Number of SFP+ ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 56 Gigabity na sek.
Forwarding rate: 41.7 Mpps
Memory buffer: 4.1 MegaBajt
MAC address table size: 8000
Support for Jumbo frames: Yes
Jumbo frame size: 10 Kilobajt
Stackability: No
Number of VLAN groups: 256
VLAN:

• 802.1Q
• VLAN Group
• Max. 256 static VLAN groups
• Configurable VID from 1 – 4094
• Asymmetric VLAN
• Auto Voice VLAN
• Max. 10 user-defined OUI
• Max. 8 default OUI
• Auto Surveillance VLAN

Supported protocols and standards:

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
• IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• IEEE 802.3x Flow Control
• IEEE 802.3af/at compliance (for PoE ports)

QoS:

• 802.1p Quality of Service
• 8 queues per port
• Queue Handling
• Strict
• Weighted Round Robin (WRR)
• Bandwidth Control
• Port-based (ingress/egress, min granularity 10/100/1000 is 16
• Kbps)
• QoS based on:
• 802.1p priority queues
• DSCP
• MAC address
• EtherType
• IP address
• Protocol type
• ToS
• IP preference
• IPv6 Traffic Class
• TCP/UDP port

Security:

• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• Traffic segmentation
• SSH v2
• TLS v1.0
• DoS attack prevention
• 802.1X Port-based Access Control
• Port Security
• Supports up to 64 MAC addresses per port
• ARP Spoofing Prevention
• Max. 127 entries
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
• ARP Inspection
• Max. 256 entries
• IPv4 Inspection
• Max. 127 entries
• IPv6 Inspection
• Max. 63 entries
• DHCP Snooping
• Max. 512 entries

Management, monitoring, configuration:

• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP
• Supports v1/v2c/v3
• SNMP Trap
• Backup/upgrade firmware
• Smart Wizard
• Upload/download configuration file
• BootP/DHCP Client
• System Log
• Max. 500 log entries
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time setting
• SNTP
• RMONv1
• Trusted host
• Dual image
• Dual configuration

L2 features:

• MAC Address Table
• 8K entries
• 16K entries (DGS-1210-52/52MP only)
• IGMP Snooping
• IGMP v1/v2 Snooping
• IGMP v3 awareness
• Supports 256 IGMP groups
• Supports at least 64 static multicast addresses
• IGMP per VLAN
• Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation
• LLDP
• LLDP-MED
• Jumbo Frame
• Up to 10,000 bytes
• Spanning Tree Protocol
• 802.1D STP
• 802.1W RSTP
• 802.1s MSTP
• Flow Control
• 802.3x Flow Control
• HOL Blocking Prevention
• Port Mirroring
• One-to-One
• Many-to-One
• Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
• Forwards all unregistered groups
• Filters all unregistered groups
• Configurable MDI/MDIX
• MLD snooping v1/v2 (256 groups)

L3 features:

• IP interface
• Supports 4 interfaces
• IPv6 Neighbor Discovery (ND)
• Static routing
• 124 IPv4 static route entries
• 50 IPv6 static route entries

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 424.8 Watt
Mean time between failures (MTBF): 277967 Hour
Accessories included:
Power supply:

100 – 240 V AC 50/60 Hz

Dimensions:

440 x 250 x 44 mm

Weight: 3.94 kilogram
Environment requirements:

• Operating temperature: -5 to 50°C
• Storage temperature: -20 to 70 ° C
• Operation humidity: 0% to 95% relative humidity
• Storage humidity: 0% to 95% relative humidity

Certificates:

• EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC
• Safety: CB, UL, BSMI, CCC

Other features:

• PoE ports: 1-24
• Maximum PoE budget: 370 W
