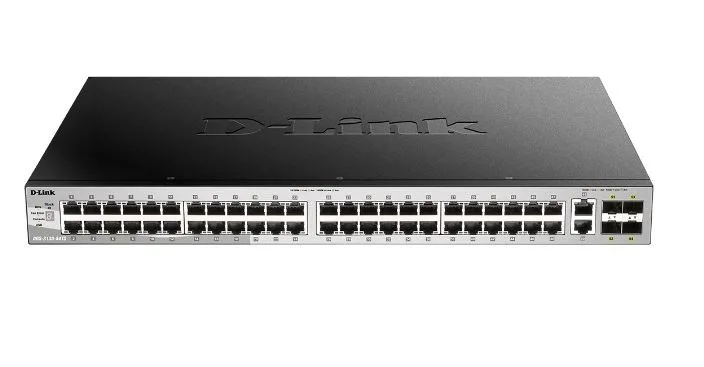

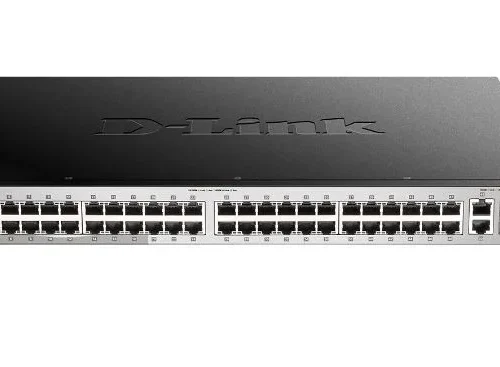

D-Link DGS-3130-54TS Switch 48GE 4SFP+ 2x10GE

D-Link DGS-3130-54TS Switch 48GE 4SFP+ 2x10GE

Description:

2 10GBASE-T ports, 4 SFP+ 10G ports

Connect to network areas at 10G speeds, and increase the transmission distance with fibre optic cabling.

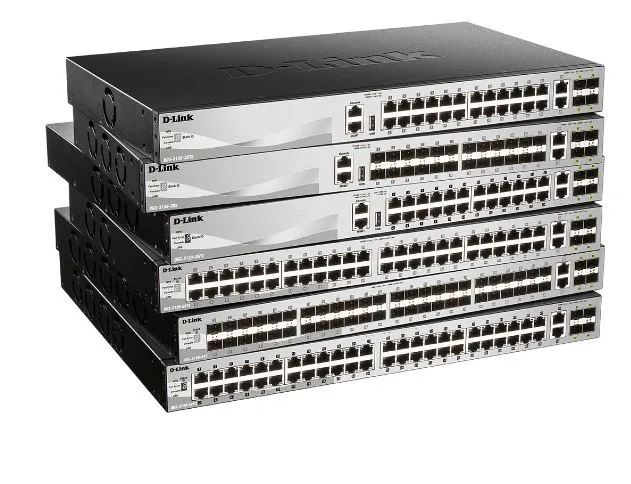

Physical stacking

Up to 9 units per stack1, with a maximum of 324 ports and a bandwidth of up to 80GB.

RIPv1_v2_ng

Determines the best route to a destination on the network.

Static routes

Segregates L3 traffic between switches, regardless of VLAN segmentation.

CLI command line

Supports a standard and commonly used command line interface for system management.

Dual configuration files

Ability to run tests without risk.

Higher port density. Enhanced Layer 3 features.

Designed for small and medium-sized businesses, the switches feature a unified software image covering L2 and L3 layer functions, 10-gigabit ports, feature higher port density, thanks to physical packetisation. All this enables the DGS-3130 series switches to be used in a variety of environments and topologies, as well as in Metro Ethernet deployments.

Superior reliability

Advanced L2 and L3 layer features include port security, Storm Control, Spanning Tree Protocols, IGMP/MLD Snooping and IPv6 ND. Management options via a multi-language browser user interface, industry-standard CLI support, multi-image support and multiple configurations are available. Six 10-gigabit ports with the option to physically stackable for more ports, with built-in G.8032 Ethernet Ring Protection Switching (ERPS) to help reduce recovery time to 50 ms. A USB 2.0 interface to store configuration files, boot images, syslog and support for additional redundant external power supplies on all models ensures maximum uptime.

Comprehensive security features

Include state-of-the-art solutions such as Multi-layer, Packet Content Access Control Lists (ACLs) and Storm Control. While the D-Link Safeguard Engine tool, designed to protect against data flooding caused by malicious attacks, maximises business network uptime. IP-MAC-Port Binding allows the source IP address to be associated with the corresponding MAC address and a port number to be defined to enhance user access control. DHCP Snooping, meanwhile, allows the switch to learn IP/MAC address pairs by keeping them in the IMPB whitelist for additional control.

Easy Access Control policies

Include multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) and are used for accurate access control and easy deployment. Once authenticated, individual policies like VLAN membership, Quality of Service (QoS) and ACL rules can be assigned to each host. Support for Microsoft NAP policy allows network resources to be protected from infected computers by enforcing compliance with network protection policies.’

Comprehensive traffic management

A rich set of multi-layered QoS/CoS features always ensures that critical network services such as VoIP, video conferencing, IPTV and IP surveillance are prioritised, while 10-gigabit ports make adequate bandwidth available. Traffic Shaping guarantees bandwidth for these services even when the network is under load. L2 Multicast support enables the DGS-3130 series switches to support IPTV applications.

Switch class: Managed
Application: Medium and large companies
Switch layer: L2
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 48
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: 2
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 4
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: Yes
Throughput: 216 Gigabity na sek.
Forwarding rate: 161 Mpps
Packet buffer: 4 MegaBajt
MAC address table size: 16000
Support for Jumbo frames: Yes
Jumbo frame size: 9 Kilobajt
VLAN:

• GVRP
• Based on MAC addressing
• Based on the port
• Based on protocol
• Asymmetric VLANs
• ISM VLAN
• Super VLANs
• Voice VLANs

Supported protocols and standards:

• 802.1D STP
• 802.1s MSTP
• 802.1w RSTP

QoS:
Security:
Management, monitoring, configuration:
L2 features:

• traffic control,
• link aggregation,
• Ethernet Ring Protection Switching (ERPS),
• Spanning Tree Protocols,
• loop detection,
• IGMP/MLD Snooping

L3 features:

• Up to 128 IP interfaces,
• IGMP filtering,
• Neighbor Discovery Protocol (ND),
• ARP Proxies,
• VRRP

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : Internal
Power consumption: 50.62 Watt
Mean time between failures (MTBF): 478.258 Hour
Accessories included:
Power supply:
Dimensions:

440 x 290 x 44 mm

Weight: 3.72 kilogram
Other features:
Designation:
