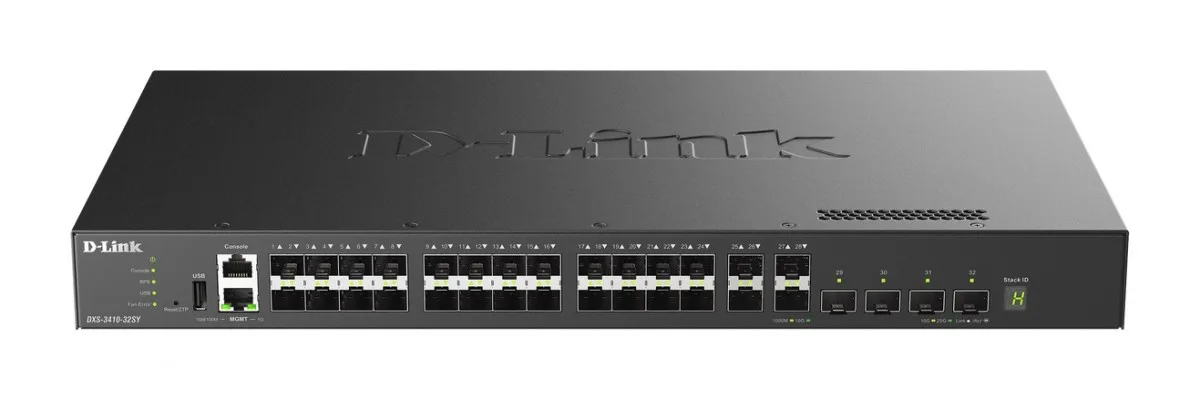

D-Link D-Link Switch DXS-3410- 32SY/E

D-Link D-Link Switch DXS-3410- 32SY/E

Description:

The DXS-3410 Series is a family of stackable 10G Layer 3 managed switches designed to connect end users in a secure Enterprise or Metro Ethernet access network. These switches support both multicast and enhanced security, making them an ideal multi-gigabit access layer solution. The DXS-3410 Series is equipped with Multi-Gigabit Ethernet and SFP+ network connectivity options, and includes models equipped with Multi-Gigabit Ethernet and SFP28 network connectivity.

Each model is equipped with 10G fiber ports and four 10/25G SFP28 ports to provide versatility and speed. The series also features a USB 2.0 port, allowing users to run images and upload configuration files directly, as well as conveniently save syslog files to a USB 2.0 storage device.

Switch class: Managed
Application: Medium and large companies
Switch layer: L3
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: None
10/100/1000/2500 Mbps ports: 4
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of PoE++ ports: 1
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: 28
SFP28 ports: 1
Number of SFP56 ports: None
Number of QSFP+ ports: None
Number of QSFP28 ports: 1
Console port: Yes
Throughput: 760 Gigabajty na sek.
Forwarding rate: 565.44 Mpps
Memory buffer: 4 MegaBajt
MAC address table size: 32000
Support for Jumbo frames: Yes
Jumbo frame size: 10 Kilobajt
Stackability: Yes
Maximum number of units per stack: 9
Number of VLAN groups: 4000
VLAN:



• 802.1v-based VLAN
• Voice VLAN
• MAC-based VLAN
• VLAN Translation
• Multicast VLAN (ISM VLAN for IPv4/IPv6)
• Asymmetric VLAN
• Private VLAN
• VLAN Trunking
• Super VLAN



VLAN Group



• Max. 4K VLAN Groups
• Max. 1~4094 VIDs



GVRP



• Max. 4K Dynamic VLAN Groups



Dual VLAN (Q-in-Q)

• Port-based Q-in-Q
• Selective Q-in-

802.1Q



• Automatic VLAN Supervision
• Port-based VLAN



Supported protocols and standards:
QoS:

802.1p



• 8 queues per port
• Queue handling
• Strict priority
• Weighted Round Robin (WRR)
• Strict + WRR
• Weighted Deficit Round Robin (WDRR)

Policy Map



• Remark 802.1p priority
• Remark IP precedence/DSCP

Congestion control



• Weighted Random Early Detection (WRED)

CoS based on

• Switch port
• Internal/external VID
• Internal/external 802.1p priority
• MAC address
• IP address
• DSCP
• Protocol type
• TCP/UDP port
• IPv6 traffic class
• IPv6 flow label

Bandwidth control

• Port-based (input/output, minimum granularity 64 Kbps)
• Flow-based (input/output, minimum granularity 64 Kbps)
• Control throughput per queue (min. granularity 64 Kb/s)

Three-color marker

• Minimum CIR/PIR granularity: 8 kb/s
• trTCM
• srTCM

Security:
Management, monitoring, configuration:
L2 features:
L3 features:

IPv4 ARP Entries: 16128

• 512 Static ARP

IPv6 ND Entries: 7680

• 256 Static ND Entries

IP Interface

• Supports 256 interfaces

Gratuitous ARP
Loopback Interface
Proxy ARP

• Support local ARP proxy

VRRP v2/v3
IP Helper

Other functions:
Chassis type: Rack
Fan : Yes
Power supply : External
Power consumption: 104 Watt
Mean time between failures (MTBF): 434.433 Hour
Environment requirements:
Certificates:

• FCC Class A
• CE Class A
• VCCI Class A
• IC
• RCM
• BSMI
• CB
• cUL
• BSMI

Accessories included:
Power supply:

• Input Power: 00 to 240 VAC, 50 to 60 Hz
• Maximum Power Consumption: Standby: 29.3 W

Dimensions:

441 x 250 x 44 mm

Weight: 3.8 kilogram
Other features:
