CyberPower UPS OR600ERM1U 600VA/360W/6xIEC/AVR/LCD

CyberPower UPS OR600ERM1U 600VA/360W/6xIEC/AVR/LCD

Description:

UPS OR600ERM1U uninterruptible power supply

CyberPower OR600ERM1U Line-Interactive UPS offers simulated sine wave output power for office equipment including PCs, workstations, network devices and peripherals. It is typically integrated into the back office and server room environment to provide reliable backup power in the event of a power outage.

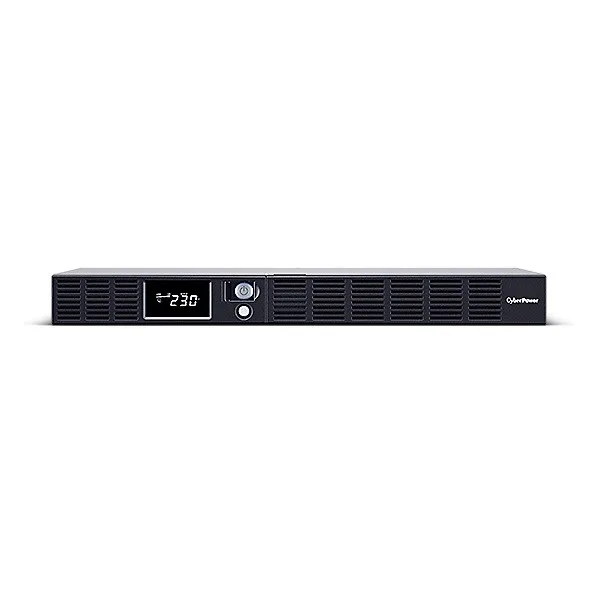

The UPS has a multi-function LCD display that displays real-time information including input and output voltage levels, load level, battery charge, battery runtime, overload warning and silent mode. Thanks to the network ports on the UPS, network devices are protected from sudden surges caused by lightning, thus avoiding potential damage to the system. When it comes to battery maintenance, the UPS offers the option of hot-swappable batteries, which allows users to perform normal battery maintenance without significant interruptions.

• UPS Line-interactive topology
• Simulated sinusoidal output voltage
• Overload protection
• Protection against interference and surges
• Telephone, fax, modem, DSL, network protection
• USB connectivity port
• SNMP/HTTP remote management (optional)
• Energy Saving Technology
• Automatic voltage regulation (AVR)
• Hot-swap batteries
• EMI and RFI filtering
• LCD status display
• PowerPanel management software

Apparent power: 600 VA
Active power: 360 Watt
UPS Architecture: line-interactive
The shape of the output voltage: Modified sine wave
Number of phases input: 1 (230V)
Transfer time (max): 4 millisecond
Charging time: 8 Hour
Chassis type: Rack
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Suppression
Filters / protection: Automatic Voltage Regulation (AVR)
Special functions:
Software:

PowerPanel Business

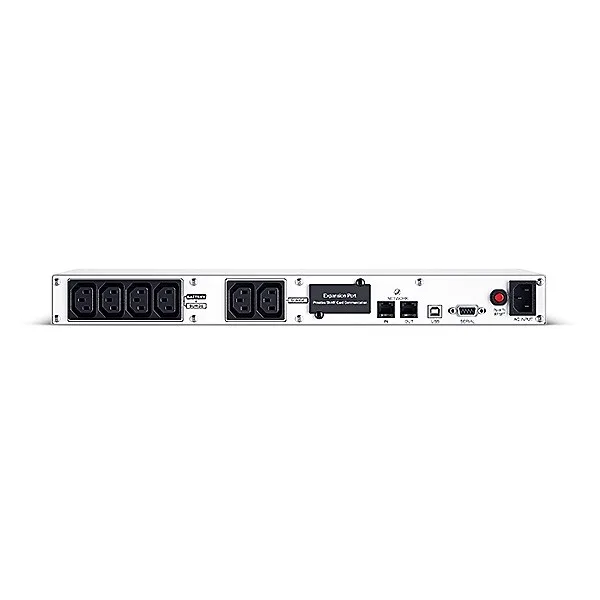

Input power ports: IEC-C14
Output power ports: 6 x IEC-C13
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 2 x RJ-11/RJ-45
Environment requirements:

• Operating Temperature: 32 ~ 104 (°F)
• Operating temperature: 0 ~ 40 (°C)
• Relative operating humidity (non-condensing): 0 ~ 95 (%)
• Operating altitude: 0-10,000 feet (0-3000 meters) (feet/meters)
• Storage Temperature: 5 ~ 113 (°F)
• Storage temperature: -15 ~ 45 (°C)
• Relative storage humidity (non-condensing): 0 ~ 95 (%)
• Storage altitude (feet/meters): 0-50,000 feet (0-15,000 meters)
• Online heat dissipation: 20 (BTU/hr)

Accessories included:

• OR600ERM1U UPS
• Rack holders
• Power cord
• USB cable
• User manual

Color: Silver
Dimensions:

433 x 44 x 235 mm

Weight: 7.8 kilogram
