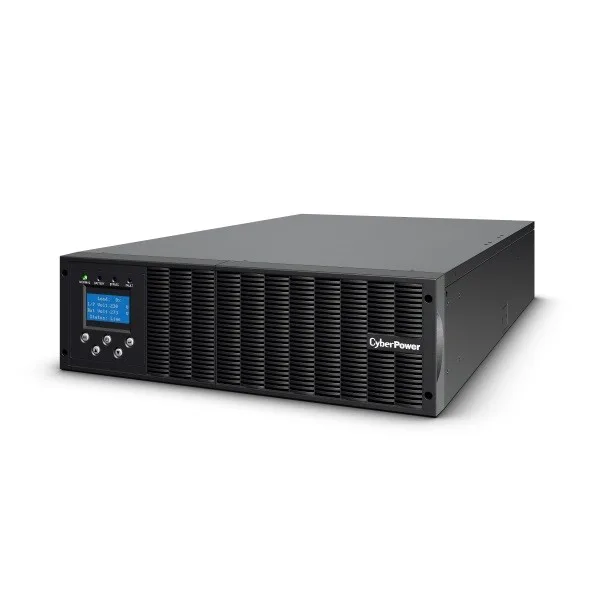

CyberPower UPS online OLS6000ERTXL3U 6000VA/5400W LCD

CyberPower UPS online OLS6000ERTXL3U 6000VA/5400W LCD

Description:

OLS6000ERTXL3U 6000VA/5400W LCD online UPS.

The CyberPower OLS6000ERTXL3U is a highly efficient UPS unit that uses an online double conversion topology to provide uninterrupted pure sine wave voltage to key NAS devices, servers, surveillance/DVR systems, transport and infrastructure solutions and emergency systems. It is typically installed in a technical room, server room or data centre. The unit requires the purchase of an external battery module.

The product is equipped with a service bypass switch. When the switch is pressed, energy is safely transferred to the grid. This allows quick repairs to be carried out by service personnel on site without having to shut down connected equipment.

• UPS (double conversion) online topology
• Generator compatibility
• Zero switchover time
• Extended battery module (EBM)
• EMI and RFI filtering
• Emergency stop (EPO) port
• SNMP / HTTP remote management (optional)
• ECO mode
• Overload protection
• Intelligent battery management (SBM)
• Interference and surge protection

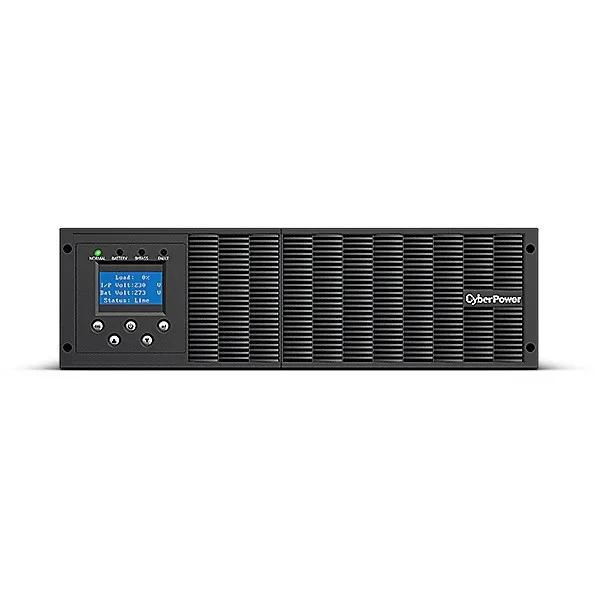

• LCD status display
• PowerPanel management software
• Adaptation to rack/tower mounting system

Apparent power: 6 kVA
Active power: 5400 Watt
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
Transfer time (max): 0 millisecond
Chassis type: Rack

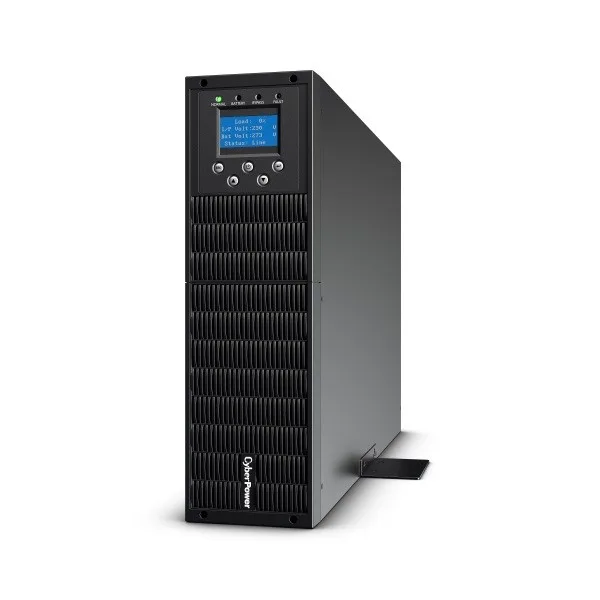

Chassis type: Tower
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Suppression
Special functions:
Software:

PowerPanel Business

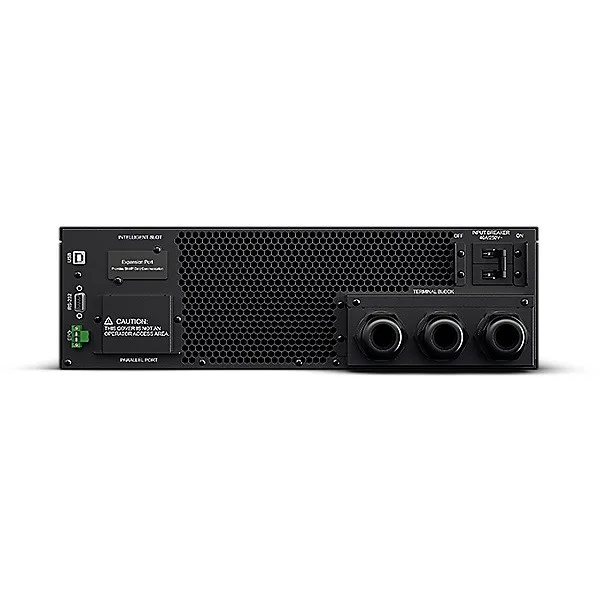

Input power ports: Input terminal
Output power ports: Output terminals
I/O connectors: 1 x RS-232 (COM)
I/O connectors: 1 x EPO
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Operating Temperature: 32 ~ 104 (°F)
• Operating temperature: 0 ~ 40 (°C)
• Relative operating humidity (non-condensing): 0 ~ 90 (%)
• Operating altitude: above/equal to 1000, load power reduction 1% per 100 m between 1000 m and 2000 m (feet/meters)
• Storage Temperature: 5 ~ 113 (°F)
• Storage temperature: -15 ~ 45 (°C)
• Relative storage humidity (non-condensing): 0 ~ 95 (%)
• Storage altitude (feet/meters): 0-50000 feet (0-15000 meters)
• Online heat dissipation: 1603 (BTU/hr)
• Audible noise from 1.5 M from the device surface: 60 (dBA)

Accessories included:

• OLS6000ERTXL3U UPS
• Rack rails
• Parallel port cover
• Terminal connector cover
• Compression connectors
• Screw set
• USB cable

Color: Black
Dimensions:

438 x 130,5 x 680 mm

Weight: 17.5 kilogram
Other features:
Designation:
