Cudy Switch GS108 8xGE Metal Case

Cudy Switch GS108 8xGE Metal Case

Description:

GS108 8-Port Gigabit switch

Super-Fast Gigabit
Eight 10/100/1000 Mbps non-blocking Ethernet ports enable instant transferring of data without mutual interference.

Extra Transmission Distance
170 meters of Gigabit transmission adding 70% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Robust Metal. Compact Size.
Compact enough to fit in most home network distribution boxes. Metal casing delivers simplicity and protection for your network hub.

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 8
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 16 Gigabity na sek.
Forwarding rate: 11.904 Mpps
MAC address table size: 8192
Support for Jumbo frames: Yes
Jumbo frame size: 15 Kilobajt
Stackability: No
VLAN:
Supported protocols and standards:

• 802.3x Flow Control
• 802.3i 10BASE-T
• 802.3u 100BASE-T
• 802.3ab 1000BASE-T

QoS:
Security:
Management, monitoring, configuration:
L2 features:

• IGMP Snooping
• Loop Prevention

L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External

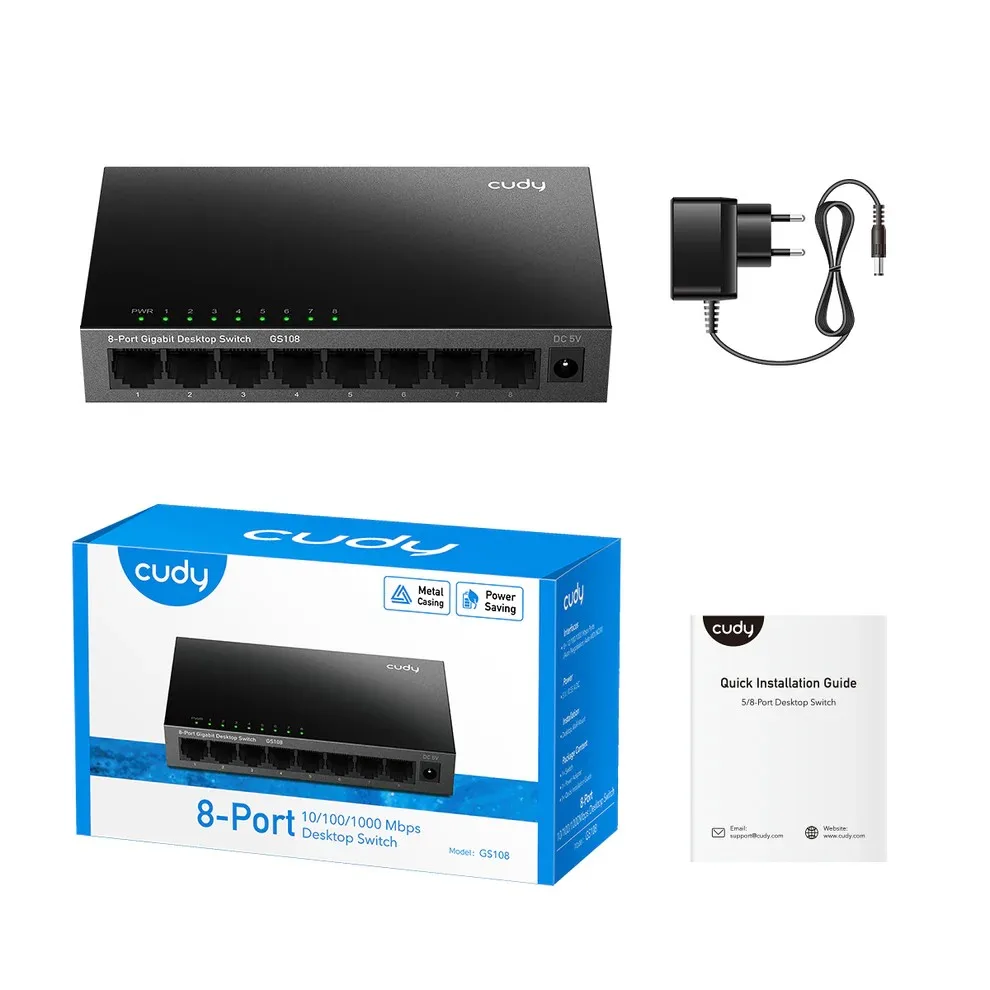

Accessories included:

• GS108 switch
• Charger
• Instruction

Power supply:

DC 5V 0.55A

Dimensions:

138 x 78 x 25 mm

Weight: 211 gram
Environment requirements:

• Operating temperature: 0~40°C
• Storage temperature :-40~70°C
• Operating humidity: 10% ~ 90%, non-condensing
• Storage temperature: 5% ~ 90%, non-condensing

Other features:
Designation:
