Cudy Switch GS105 5xGE Metal Case

Cudy Switch GS105 5xGE Metal Case

Description:

GS105 5-Port Gigabit Desktop Switch

• Compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3x and IEEE 802.3ab standards
• 5 x 10/100/1000Mbps auto-negotiation ports, Auto-MDI/MDIX for intelligent switching between 10Mbps, 100Mbps and 1000Mbps
• Store-and-Forward

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: None
Number of 10/100/1000 Mbps ports: 5
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: None
Number of COMBO ports: None
Number of SFP ports: None
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Forwarding mode: Store-and-forward
Throughput: 10 Gigabity na sek.
Forwarding rate: 7.44 Mpps
Packet buffer: 1 MegaBajt
MAC address table size: 1000
Support for Jumbo frames: Yes
Jumbo frame size: 2 Kilobajt
Stackability: No
VLAN:

Port isolation, ports 1-4 are isolated from each other, all communicate with uplink port 5

Supported protocols and standards:

• IEEE802.3 (10Base-T)
• IEEE802.3u (100Base-TX)
• IEEE802.3ab (1000Base-TX)
• IEEE802.3x (Flow control)

QoS:
Security:
Management, monitoring, configuration:

It supports three modes: VLAN, Default, Extend

L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : External
Mean time between failures (MTBF): 100000 Hour

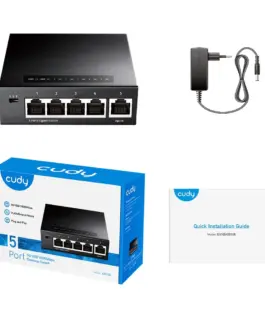

Accessories included:

• Switch
• Charger
• Instruction
• Warranty Card

Power supply:

Powers external DC 5V

Dimensions:

100 x 70 x 26 mm

Weight: 200 gram
Environment requirements:

• Operating temperature: -10~50°C
• Storage temperature -40~70°C
• Operating humidity: 10% ~ 90%, non-condensing
• Storage temperature: 5% ~ 90%, non-condensing

Other features:
Designation:
