Cudy Switch FS1018PS1 16xFE PoE+ 200W 1xSFP

Cudy Switch FS1018PS1 16xFE PoE+ 200W 1xSFP

Description:

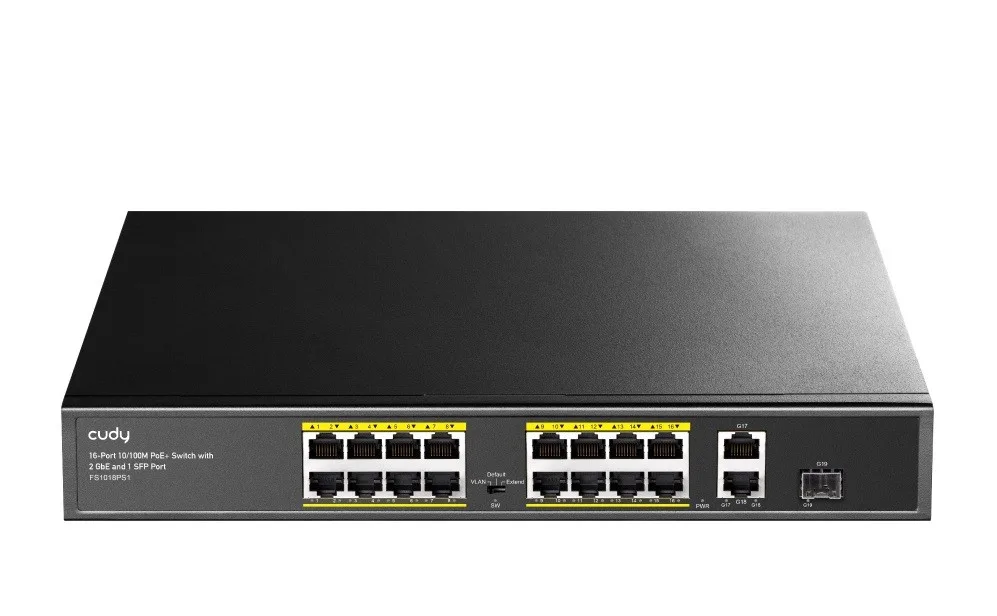

FS1018PS1 16-Port 10/100M PoE+ Switch with 1 Combo SFP Port

• 200W PoE power, up to 30W per port
• 2 10/100/1000M uplink ports + 1 SFP port
• 16 10/100M PoE+ ports
• CCTV mode supports remote PoE power up to 250m
• VLAN mode isolates each PoE port for security
• IEEE 802.3at / IEEE 802.3af compliant

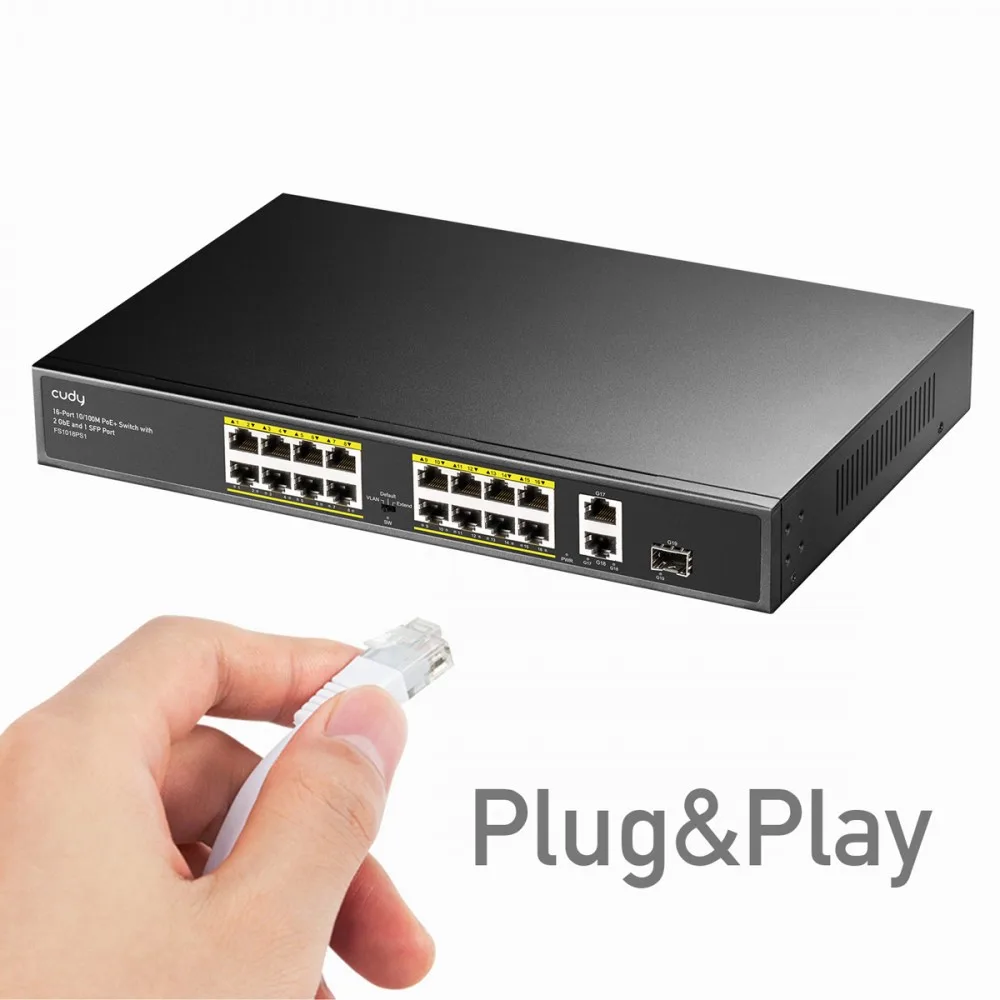

• Plug&Play

Switch class: Unmanaged
Application: Home and small office
Network architecture: GigabitEthernet
Number of 10/100 Mbps ports: 16
Number of 10/100/1000 Mbps ports: 2
10/100/1000/2500 Mbps ports: None
Number of 10Gb ports: None
Number of PoE ports (PoE & PoE+): None
Number of PoE+ ports: 16
Number of COMBO ports: 1
Number of SFP ports: 1
Number of SFP+ ports: None
Number of SFP56 ports: None
Number of QSFP+ ports: None
Console port: No
Throughput: 7.2 Gigabity na sek.
MAC address table size: 4000
Support for Jumbo frames: No
Stackability: No
VLAN:
Supported protocols and standards:

• IEEE802.3
• IEEE802.3i
• IEEE802.3u
• IEEE802.3z
• IEEE802.3ab
• IEEE802.3af
• IEEE802.3at

QoS:
Security:
Management, monitoring, configuration:
L2 features:
L3 features:
Other functions:
Chassis type: Desktop
Fan : No
Power supply : Internal
Power consumption: 190 Watt
Accessories included:
Power supply:

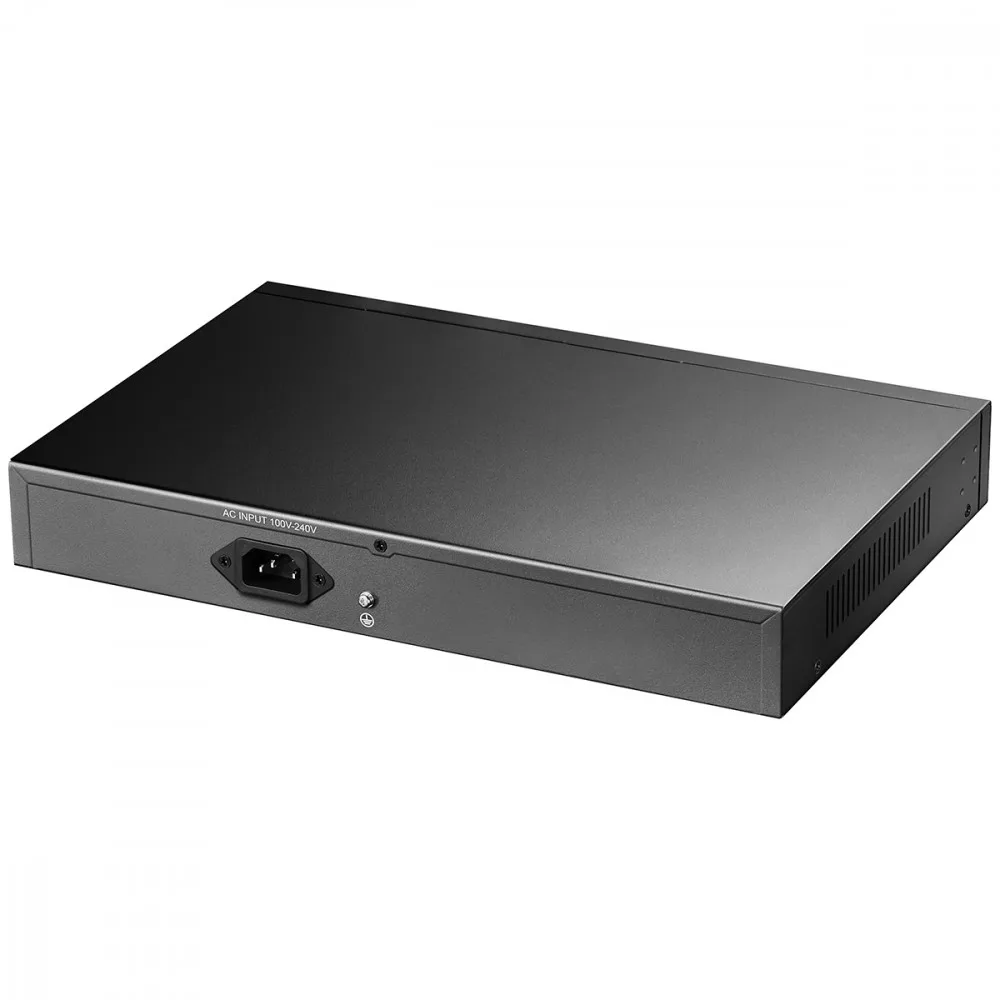

Internal power supply: AC 100 – 240V

Dimensions:

280 x 180 x 44 mm

Environment requirements:

• Working temperature: 0~40°C
• Storage temperature: -40~70°C
• Non-condensing humidity: 0 ~ 85%

Other features:

Transmission speed:

• 14880pps for 10Mbps
• 148800pps for 100Mbps
• 1488000pps for 1000Mbps

Designation:
