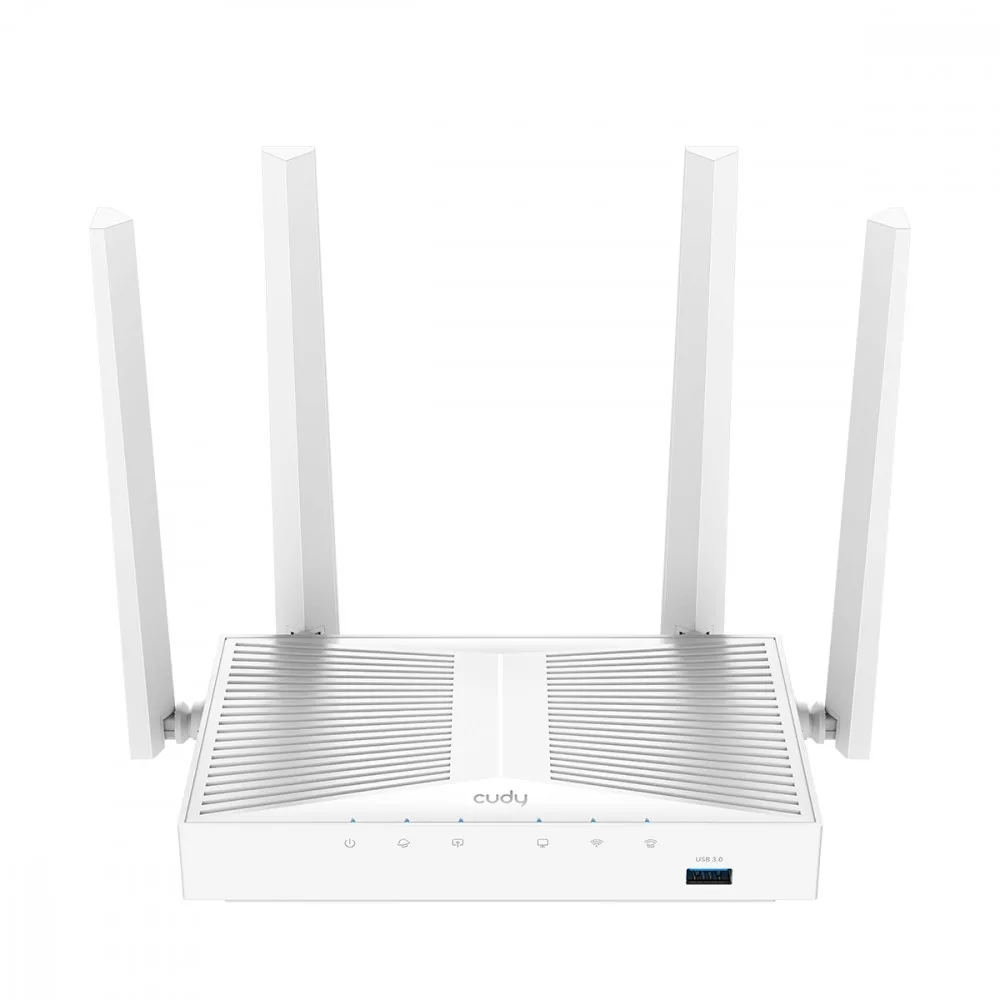

Cudy Router WR1300S Mesh Gigabit WiFi AC1200 with USB, 5 × 10/100/1000Mbps RJ45 Ports, 4 x 5dB

Cudy Router WR1300S Mesh Gigabit WiFi AC1200 with USB, 5 × 10/100/1000Mbps RJ45 Ports, 4 x 5dB

Model:

WR1300S

Description:
Type: xDSL
Network architecture: GigabitEthernet

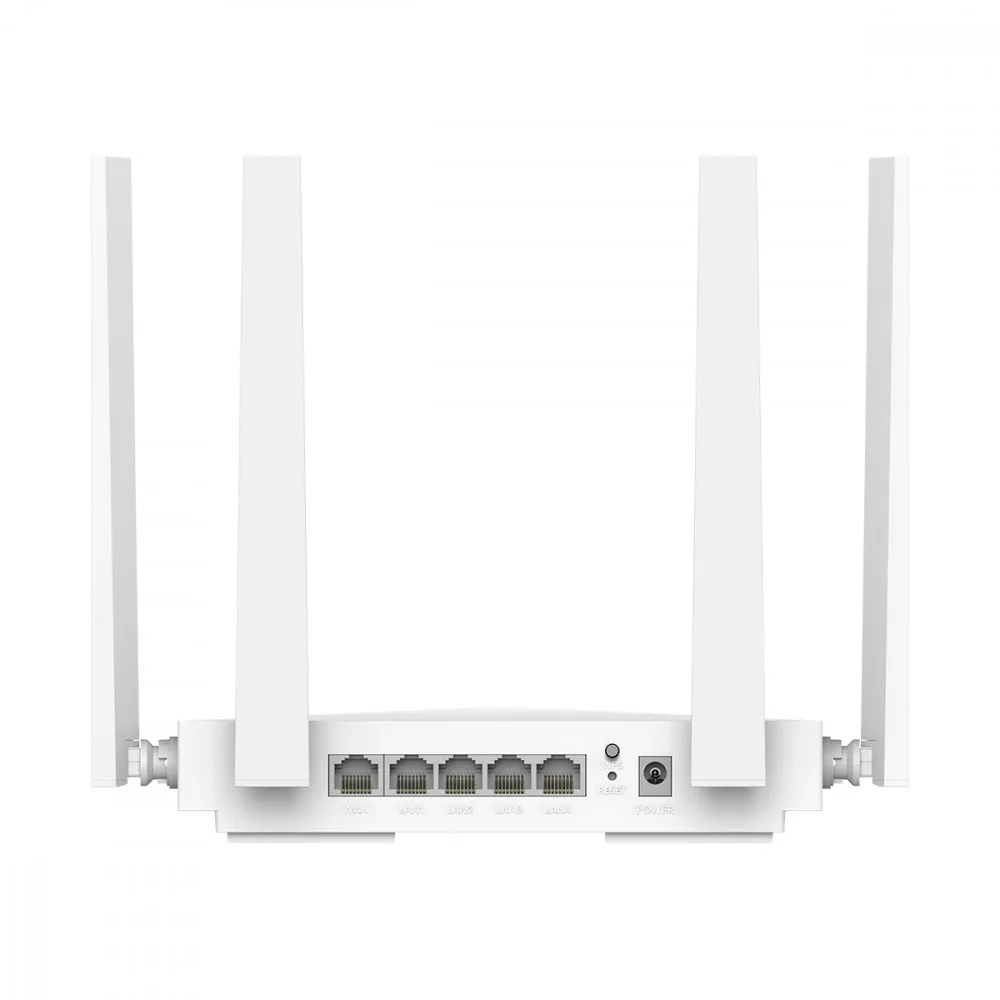

I/O ports: 1 x USB 3.0 Type A
I/O ports: 4 x 10/100/1000 Mbit/s
I/O ports: 1 x WAN (RJ-45)
Standards: 802.11b
Standards: 802.11n
Standards: 802.11ac
Standards: IPv4
Standards: IPv6
Standards: 802.11g
Standards: 802.11a
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 4
Antenna: Fixed external
Antenna gain: 5 dBi
Security:

Wi-Fi Security: WPA/WPA2/WPA3

Parental Controls:

• Profiles Settings
• Offline Time
• Online Time
• Pause the Internet
• Web Filter

Firewall:

• SPI Firewall
• DoS Protection
• Block PING

Management, monitoring, configuration:

All Devices Management:

• Wi-Fi Time Schedule
• MAC Filter
• IP/MAC Binding

Per-Devices Management:

• Internet On/Off
• VPN On/Off
• Online Time Schedule
• Device Rename

Content Management:

• Domain Filter
• IP Filter
• Local Control Method:
• Config Web Page
• App Control

Remote Control Method:

• Config Page via HTTPS
• App Control
• TR069/TR098/TR111/TR143/TR181

QoS:

• Per-User Rate Limiting

DHCP:

• Address Reservation
• DHCP Client List
• Server

IPv6 Protocols:

• Relay
• Dynamic (SLAAC/DHCPv6)
• Static (Fixed IP)
• Passthrough
• 464XLAT
• MAP-E
• DS-Lite

IPTV/VLAN:

• Bridge
• Tag VLAN
• VoIP VLAN
• IPTV VLAN

TTL Customization:

• Extend
• Spoof
• Custom

IGMP:

• IGMP Proxy
• IGMP Snooping

Forwarding:

• Port Forwarding
• Port Triggering
• UPnP
• DMZ

Power supply:

• Input: 100 ~ 240 V, 50/60 Hz AC
• Output: 12V 1.5A DC

Environment requirements:
Certificates:

• FCC
• CE

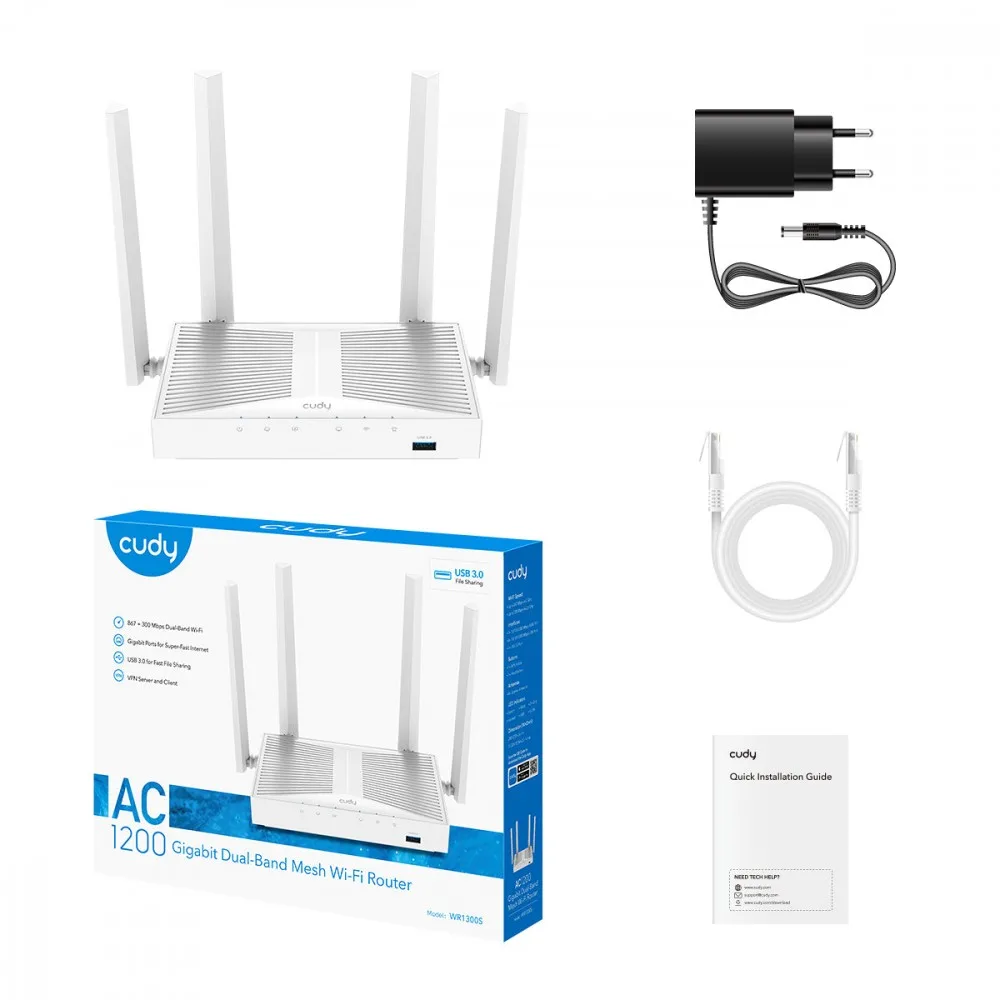

Accessories included:

• WR1300S
• Power Adapter
• Ethernet Cable
• Installation Guide

Color: White
Weight: 284 gram
Dimensions:
Other features:

• CPU: 880 MHz Dual-Core, MIPS1004Kc
• Flash/ROM: 16 MB (128 Mbit) NOR
• DDR/RAM: 128 MB (1 Gbit) DDR3
• 5 GHz Wi-Fi Speed: 867 Mbps
• 2.4 GHz Wi-Fi Speed: 300 Mbps

Designation:
