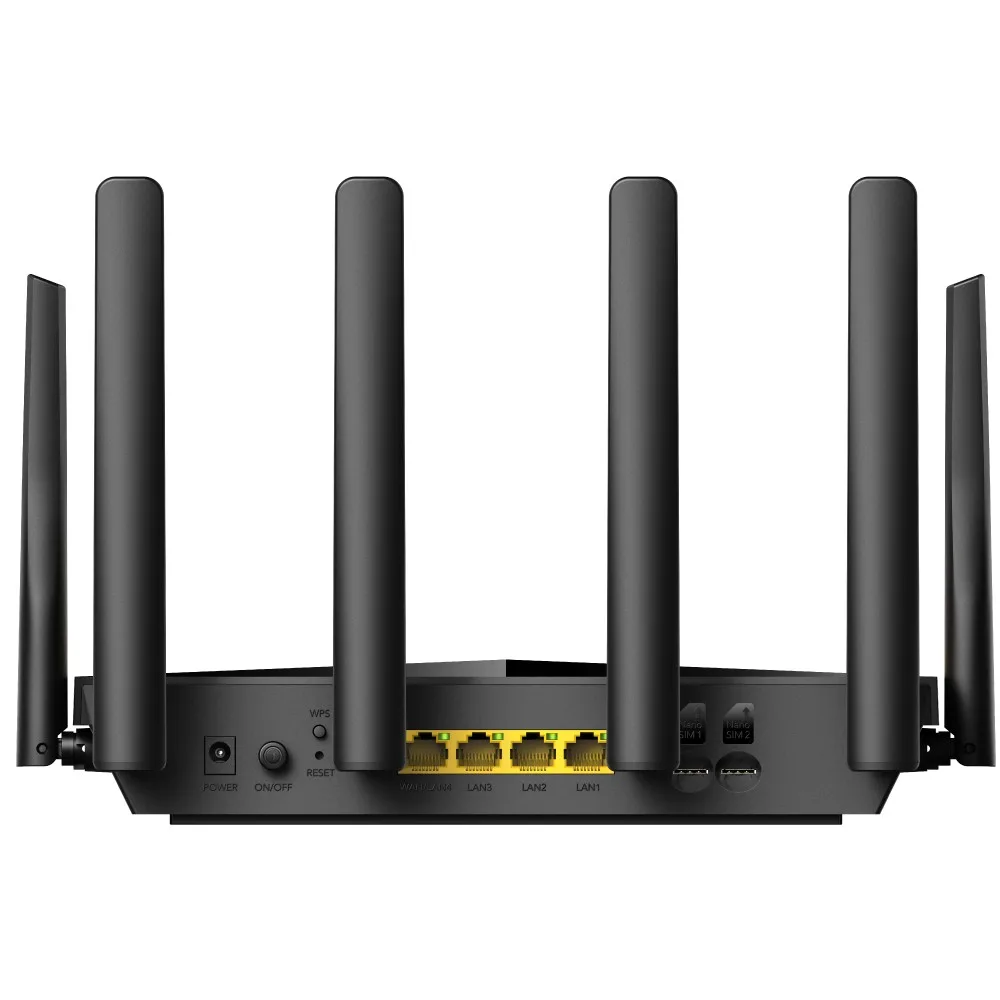

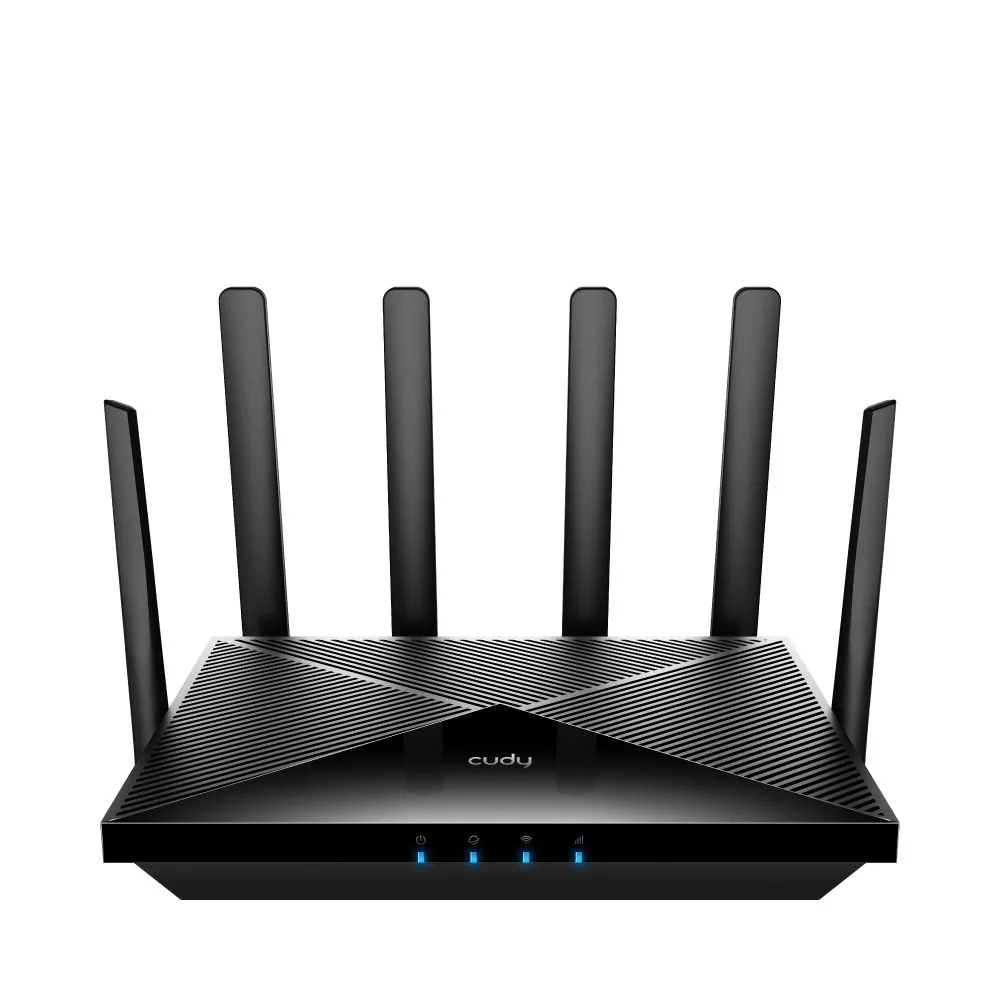

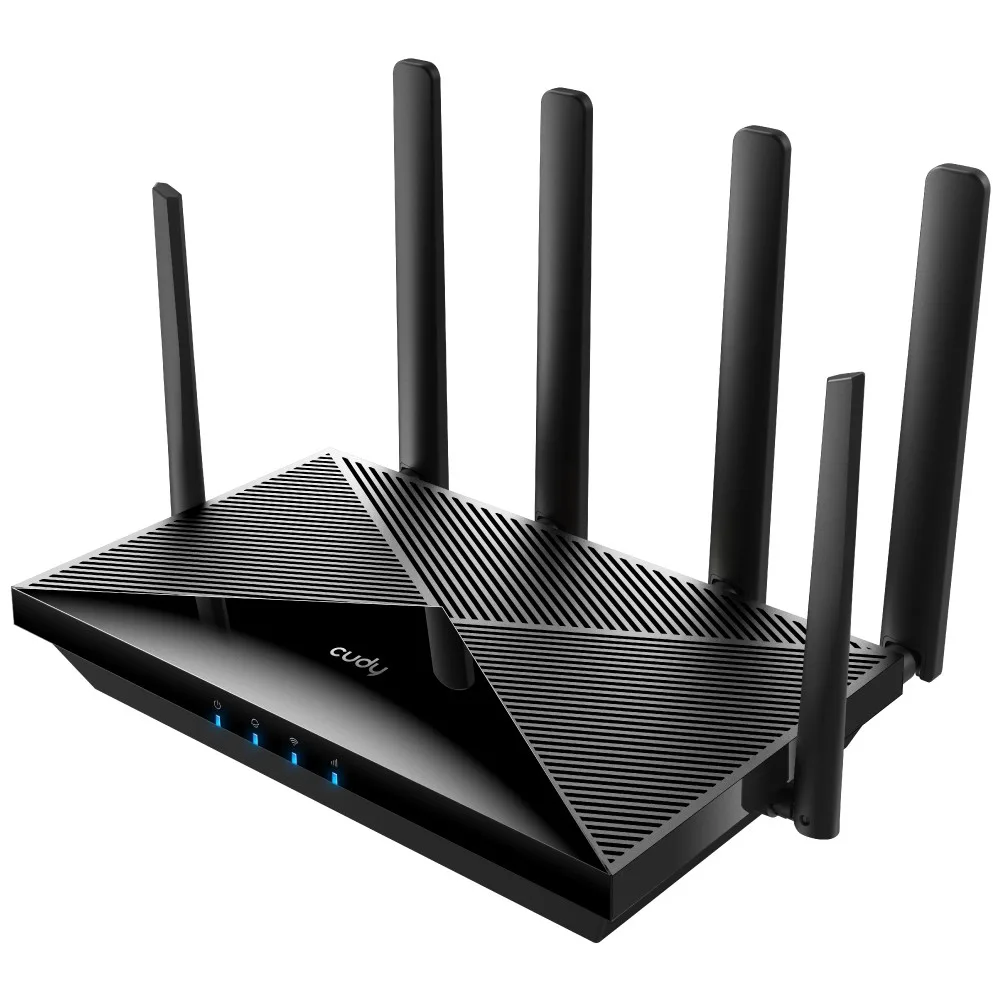

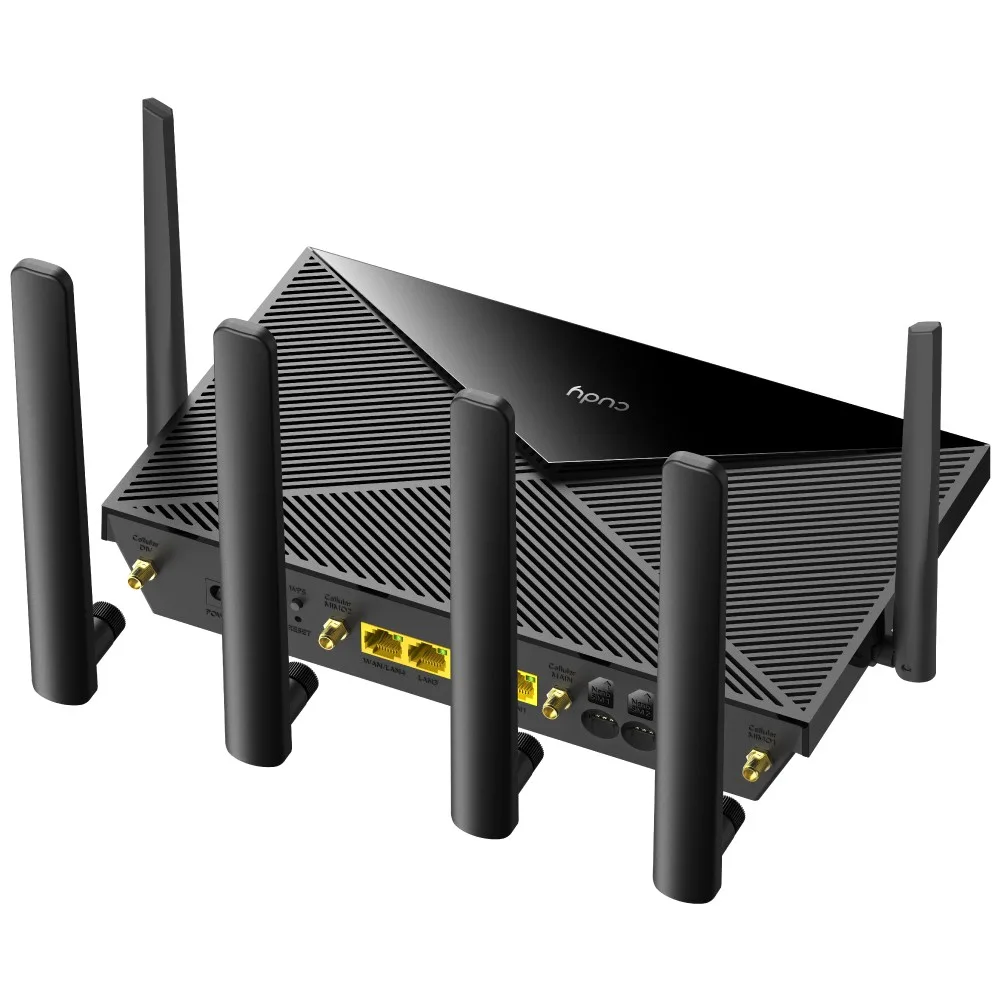

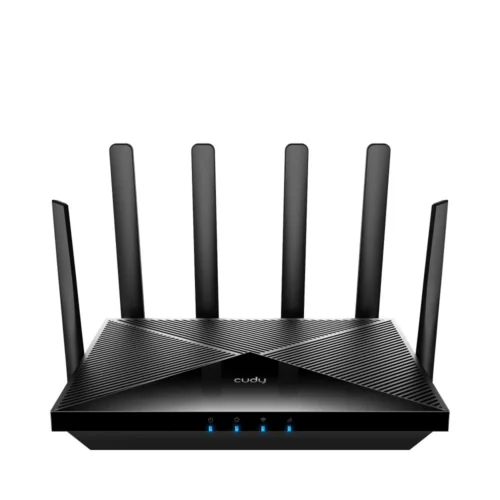

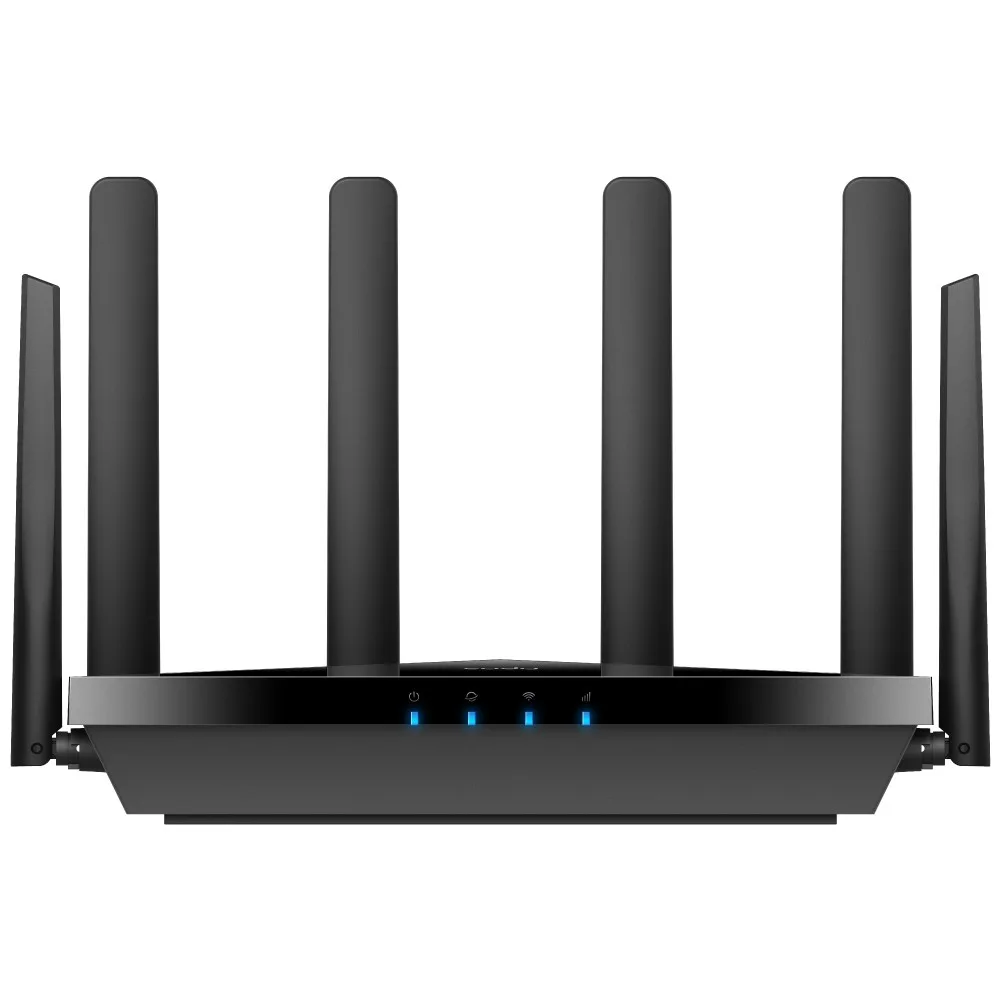

Cudy Router LT700_EU Gigabit AC1200 4G LTE SIM

Cudy Router LT700_EU Gigabit AC1200 4G LTE SIM

Model:

LT700

Description:

LT700 AC1200 4G LTE CAT 6 Router

• 4G LTE CAT.6 CPE
• AC1200 Dual Band Wi-Fi
• Two SIM slots (Nano)
• 4 x Gigabit Ethernet ports
• 4 x detachable cellular antenna
• 2 x fixed WiFi antenna
• DNS over Cloudare/NextDNS/Google
• WireGuard/OpenVPN/PPTP/L2TP clients

Type: GSM 3G/4G
Data transmission: LTE
Data transmission: HSPA +DC
Data transmission: UMTS
UMTS network: 2100 MHz
UMTS network: 900 MHz
UMTS network: 1800 MHz
UMTS network: 850 MHz
LTE network: 2600 MHz
LTE network: 2500 MHz
LTE network: 900 MHz
LTE network: 1500 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
LTE network: 2300 MHz
LTE network: 850 MHz
LTE network: 700 MHz
LTE network: 800 MHz
Aero2 support: No
Standards: 802.11a
Standards: 802.11b
Standards: 802.11n
Standards: 802.11ac
Standards: IPv4
Standards: IPv6
Standards: 802.11g
Operating frequency: 5 GHz
Operating frequency: 2,4 GHz
Number of antennas: 6
Antenna: Fixed external
Antenna: Detachable external
Security:
Special functions:

• DHCP:Server, Client List, Address Reservation
• NAT: Port Forwarding, Port Triggering, UPnP, DMZ
• Firewall: Mac Filter, IP Filter, Domain Filter
• DDNS:Compatible with 20 more DDNS providers
• VPN Client:PPTP/L2TP/OpenVPN/WireGuard
• DNS over TLS: Cloudare/NextDNS/Google
• Schedule: Schedule Reboot /Wi-Fi Schedule
• Internet Protocol version 4 or 6 (IPv4/IPv6)
• Quality of Service (QoS)
• TTL configuration(Extend/Spoof)
• Band Selection

I/O ports: 2 x SIM card slot
I/O ports: 1 x 10/100/1000Base-T RJ-45 port (WAN)
I/O ports: 3 x 10/100/1000 Mbit/s PoE
SIM card: Nano
Power supply:

• AC Adapter: Input: 90~260V, Output: 12V, 1.5A
• DC Input (12V-1.5A) Barrel Plug

Software:
Supported operating systems: Windows Vista
Supported operating systems: Windows 8.1
Supported operating systems: Windows 7
Supported operating systems: Windows 8
Supported operating systems: Mac OS
Supported operating systems: Windows 98 SE
Supported operating systems: Windows NT
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Unix
Supported operating systems: Linux
Supported operating systems: Windows 10
System Requirements:

Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

Accessories included:

• 4G LTE WiFi Router
• Charger
• RJ45 ethernet cable
• Quick Installation Guide

Color: Black
Dimensions:

253 x 152.5 x 48.2 mm

Other features:

• CPU: Mediatek Dual Core 880MHz
• 4G Module: Quectel EG120K (Qualcomm)
• DRAM: 256MB (2Gbit) DDR3
• Flash: 16MB (128Mbit)

Data transfer rate:

• Wi-Fi : 2.4GHz (802.11n/g/b, MIMO 300Mbps), 5GHz (802.11ac/an/a, MIMO 867Mbps)
• LTE FDD: Max 300Mbps(DL)/50Mbps(UL)
• LTE TDD: Max 226Mbps(DL)/48Mbps(UL)
• DC-HSPA+: 42Mbps(DL)/11.5Mbps(UL)
• WCDMA: Max 384Kbps (DL) / Max 384Kbps (UL)
