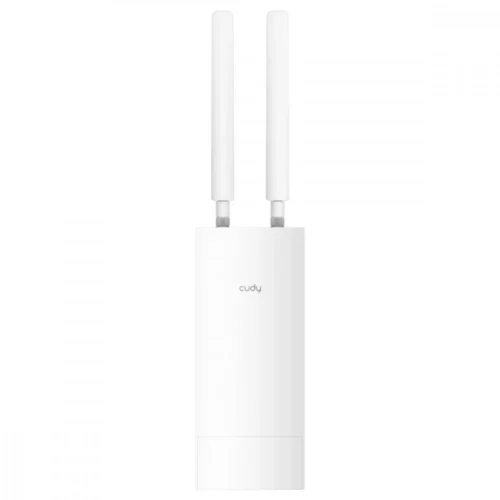

Cudy Router LT500 Outdoor 4G LTE SIM AC1200

Cudy Router LT500 Outdoor 4G LTE SIM AC1200

Model:

LT500 Outdoor

Description:

Router LT500 Outdoor

• LTE FDD/TDD Cat 4
• AC1200 Wi-Fi
• 1 x 10/100 Mbps WAN/LAN
• Nano SIM Slot
• 24 V Passive PoE
• 2 x Internal WiFi Antennas + 2 x Detachable 4G Antennas
• VPN & DDNS
• IP65 WaterProof

Turn Everywhere 4G into Speedy AC1200 Wi-Fi
With 4G Cat. 4 standards, LT500 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. With MU-MIMO and dual-band features, the AC1200 Wi-Fi shares the fast 4G with over 30 devices while minimizing the latency.

Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four dierent scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.

Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.

Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or oce with a better Wi-Fi signal. AP needs to bepurchased separately.

Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone’s antennas. You can still replace them with customized ones via the SMA connectors.

Type: GSM 3G/4G
Data transmission: UMTS
Data transmission: LTE
Data transmission: EDGE
GSM network: 1900 MHz
GSM network: 900 MHz
UMTS network: 2100 MHz
UMTS network: 850 MHz
UMTS network: 900 MHz
LTE network: 700 MHz
LTE network: 800 MHz
LTE network: 2600 MHz
LTE network: 2300 MHz
LTE network: 2500 MHz
LTE network: 850 MHz
LTE network: 900 MHz
LTE network: 1800 MHz
LTE network: 2100 MHz
Aero2 support: No
Standards: 802.11a
Standards: 802.11n
Standards: 802.11ac
Standards: IPv4
Standards: IPv6
Standards: 802.11g
Standards: 802.11b
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Number of antennas: 4
Antenna: Built-in
Antenna: Detachable external
Security:

• WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK

Management, monitoring, configuration:

• WAN Type: 4G/Dynamic IP/Static IP/PPPoE
• DHCP: server, DHCP client list, address reservation
• Dynamic DNS: Compatible with 15 other DDNS providers
• NAT: port forwarding, port triggering, UPnP, DMZ
• VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
• CWMP protocol: TR069 / TR098 / TR111 / TR181
• Compatible with ACS server: GenieACS, OpenACS
• Management: Access Control, Local Management, Remote Management, Wake on LAN
• TTL: Extend/Spoof/Custom
• DNS: Cloudare/Google/Custom
• Internet protocols: IPv4 / IPv6
• IPv6: Relay, Dynamic (SLAAC/DHCPv6), Static (permanent IP address), Go through, MAP-E (dual stack), DS-Lite (Dual Stack)
• SMS: send/receive
• Blocking the 4G band

Special functions:
Card reader: None
I/O ports: 1 x SIM card slot
I/O ports: 1 x 10/100 Mbit/s LAN / WAN (Combo)
SIM card: Nano
Power supply:

Passive PoE adapter 24V/0.5A

Software:
Certificates:
Supported operating systems: Windows 11
Supported operating systems: Linux
Supported operating systems: Windows 10
Supported operating systems: Mac OS
Supported operating systems: Windows 98 SE
Supported operating systems: Windows NT
Supported operating systems: Windows 2000
Supported operating systems: Windows XP
Supported operating systems: Windows Vista
Supported operating systems: Windows 7
Supported operating systems: Windows 8
Supported operating systems: Windows 8.1
Supported operating systems: Novell NetWare
Supported operating systems: Unix
System Requirements:

Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser

Environment requirements:

• Operating temperature: -20°C to 60°C
• Storage temperature: -40°C to 70°C

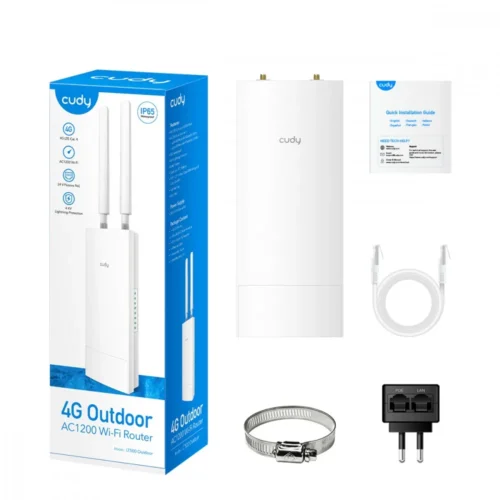

Accessories included:

• 2 x detachable 4G antenna
• Passive PoE adapter 24V/0.5A
• Pole mount accessory
• Ethernet cable
• Quick Installation Guide

Color: White
Dimensions:

• Router body: 240 x 100 x 53.7 mm
• 4G antennas: 197.5 x 21.6 x 15.5mm

Other features:

Wi-Fi Data Rate:

• 2.4GHz (802.11n/g/b, 300Mbps)
• 5GHz (802.11ac/n/a, 1201Mbps)

Cellular Data Rate:

• FDD: Max 150Mbps(DL)/ 50Mbps(UL)
• TDD: Max 130Mbps(DL)/ 30Mbps(UL)
• DC-HSDPA: Max. 21Mbps (DL) / 5.76Mbps (UL)
• WCDMA: 384Kbps (DL/UL)
