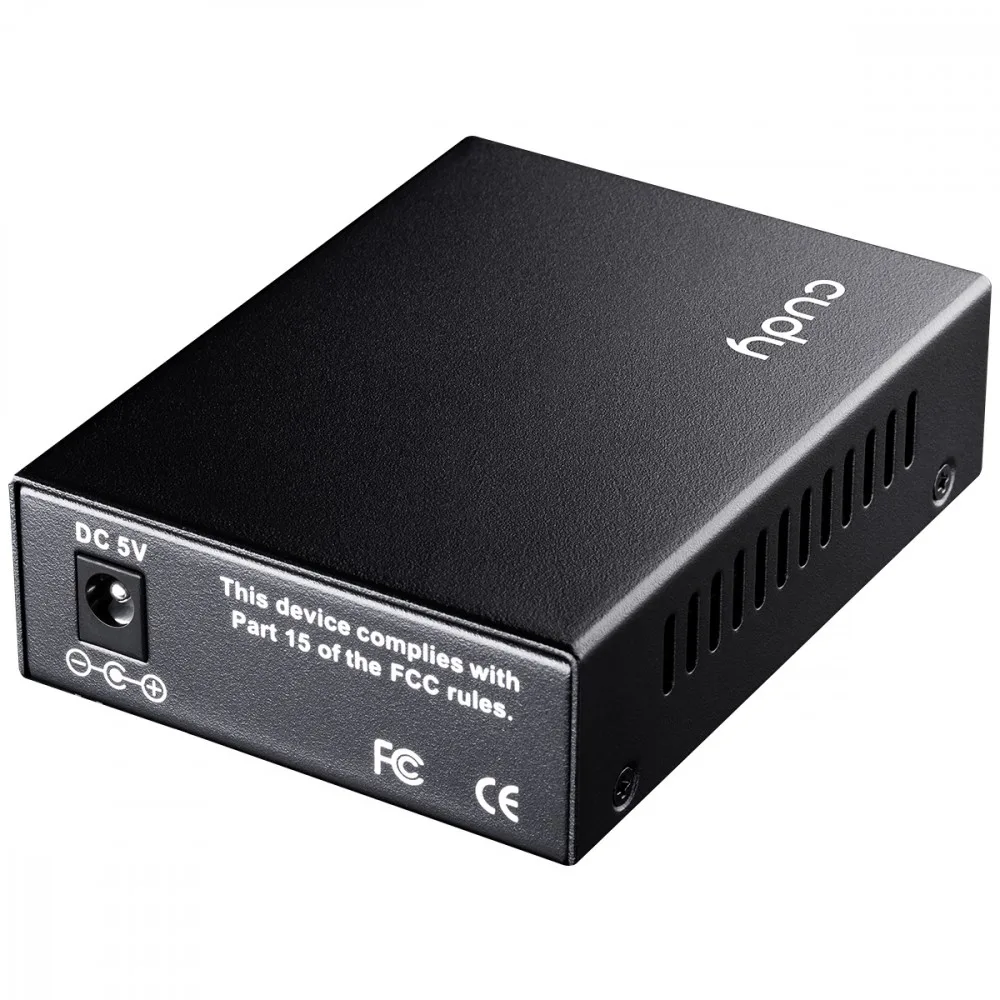

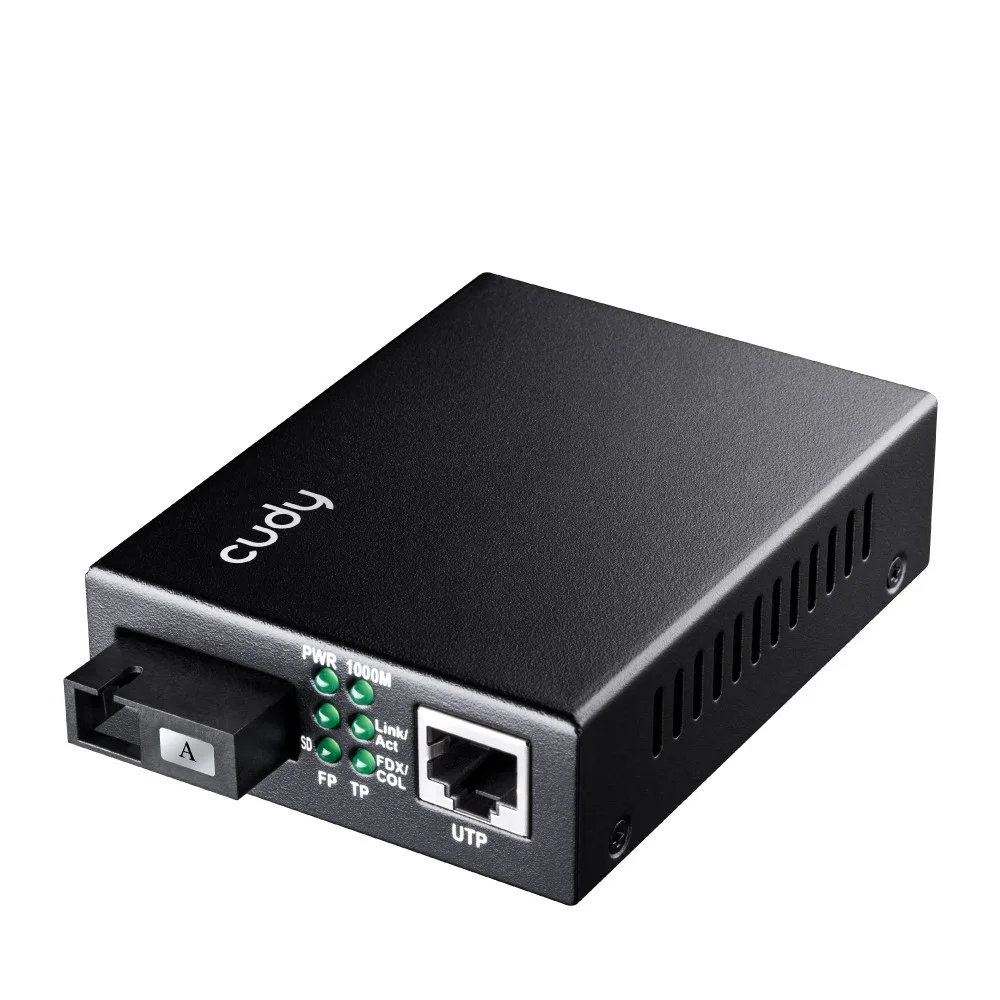

Cudy MC100GSB-20A Media конвертор GB 1310/1550n

Cudy MC100GSB-20A Media конвертор GB 1310/1550n

Description:

Gigabit Ethernet media конвертор

TX1310nm/RX1550nm WDM BiDi 20Km SC

• 1x 1.25 Gb/s SC fiber port
• 1x RJ45 connector 10M/100M/1000M
• Bidirectional single-mode optical fiber
• TX 1310nm / RX 1550nm
• Distance up to 20 km
• Supports full duplex and half duplex
• 2Mbit RAM for data buffer
• Supports 9K jumbo frames

Inside Qualcomm

Inside, the Qualcomm chip ensures stable transmission, stable performance and strong anti-jamming ability.

Lightning protection.

Strong anti-jamming ability.

High speed and stability of signal conversion.

Easy browsing

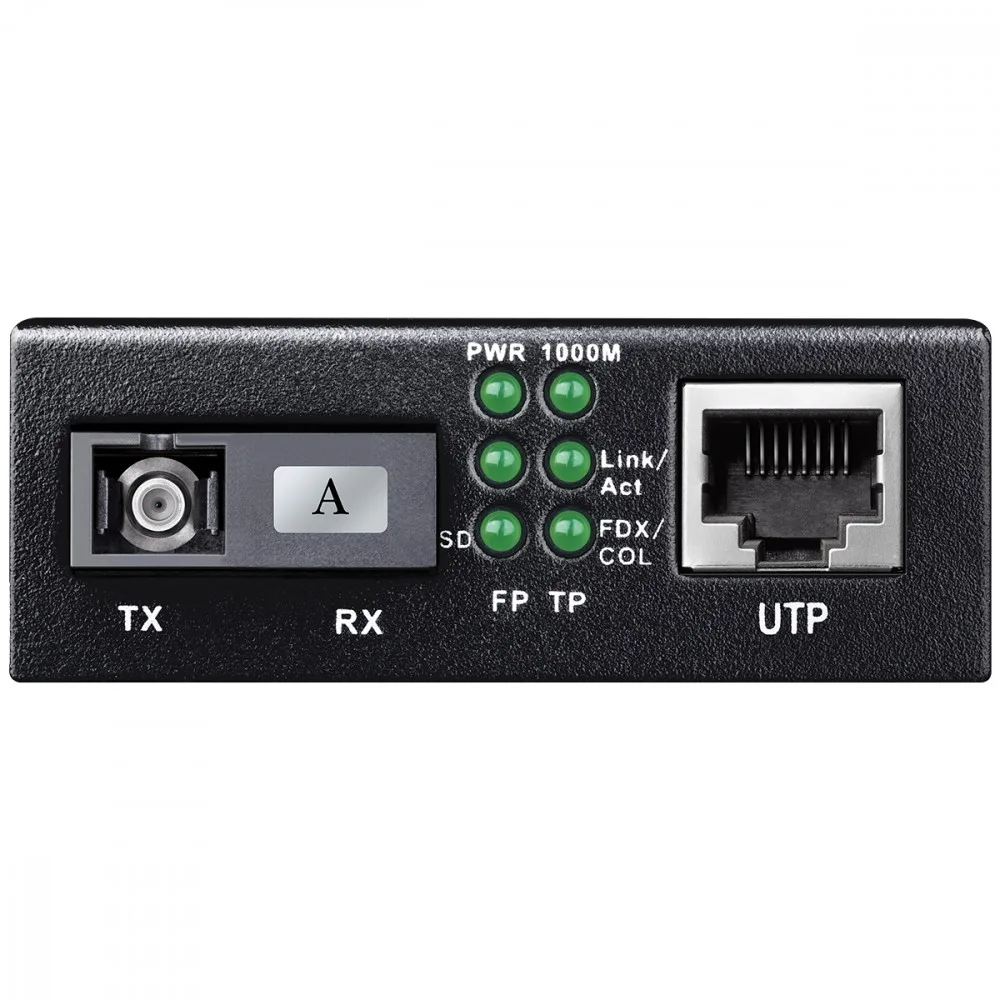

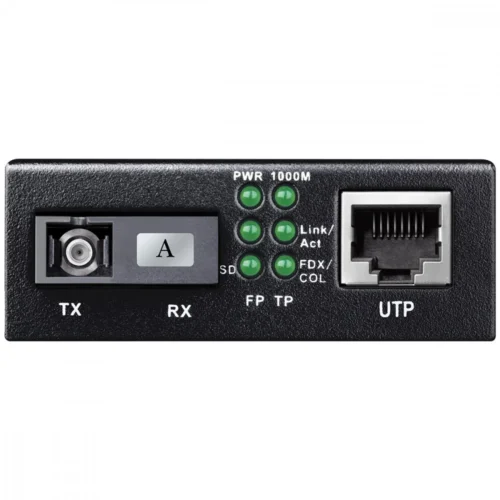

High-visibility LED indicators indicate status, making it easy to monitor network activity.

• FP: ON: maximum fiber speed, OFF: not maximum speed
• TP: ON: maximum Ethernet speed, OFF: other than maximum speed
• Link/ACT: Flashes when sending and receiving
• FDX: ON: Full duplex, OFF: Half duplex
• PWR: ON: enable, OFF: disable

Heat dissipation

Made of high-quality metal housing, durable and long-lasting, provide better heat dissipation, suitable for indoor and outdoor use.

• Operating temperature: 0°C to 70°C
• Storage temperature: -45°C to 80°C

High performance

• Mean time between failures > 50000 hours.
• 2Mbit RAM for data buffer
• Supports 9K jumbo frames

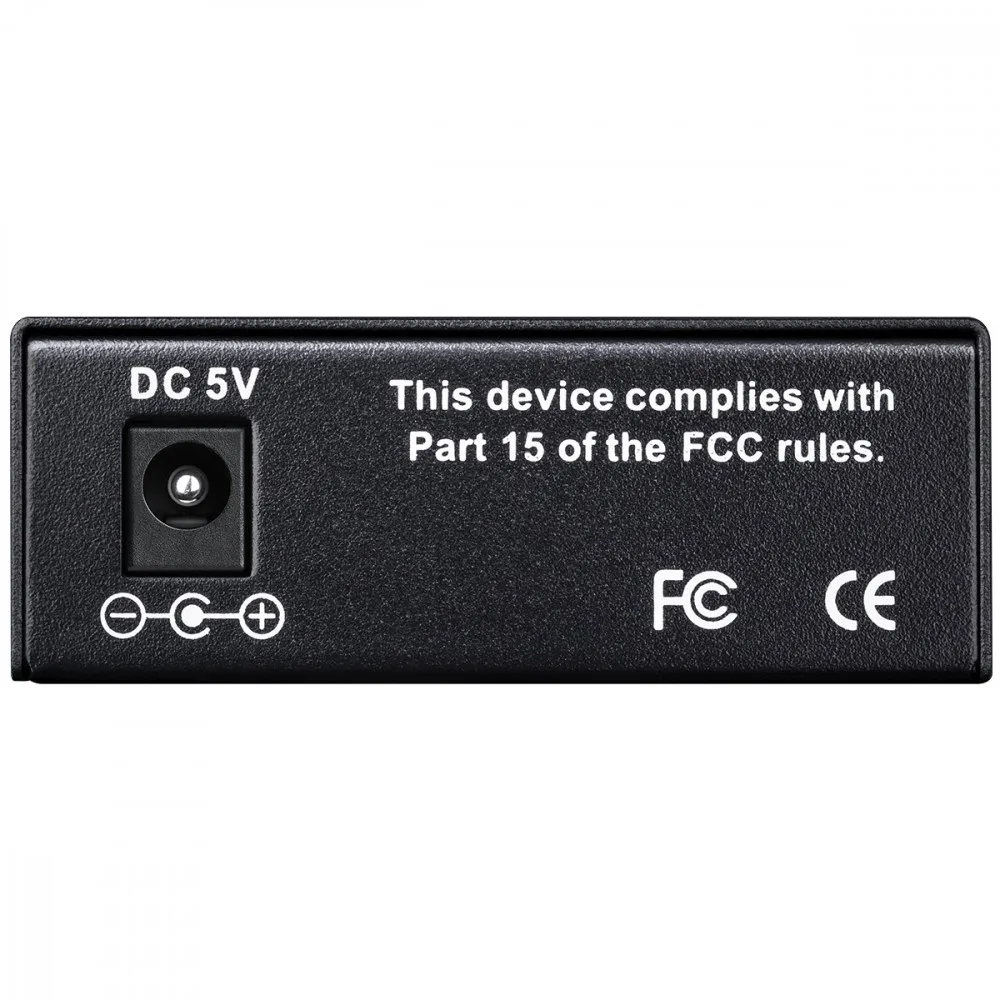

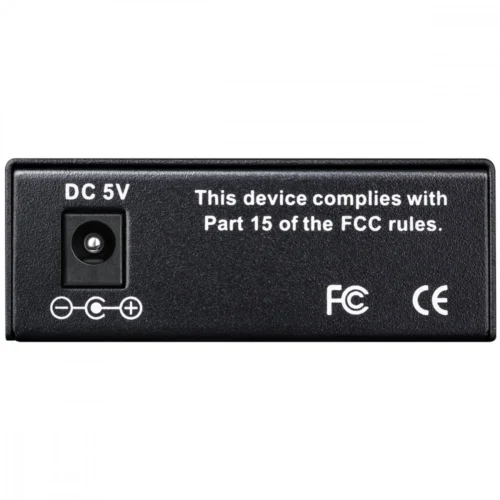

Voltage 100V ~ 240V

• Support 100V~240V voltage range
• DC: 5V DC 1.0A
• Power consumption: 3 watts

Plug and play

• Plug-and-play, no additional software required.
• Modulation configuration design, hot swap support.
