Corsair RS120 120mm Fan Single Pack

Corsair RS120 120mm Fan Single Pack

Description:

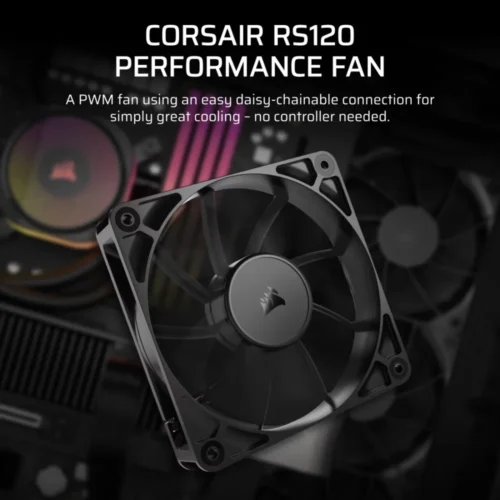

RS120
High-Performance PWM Fans with Daisy Chain

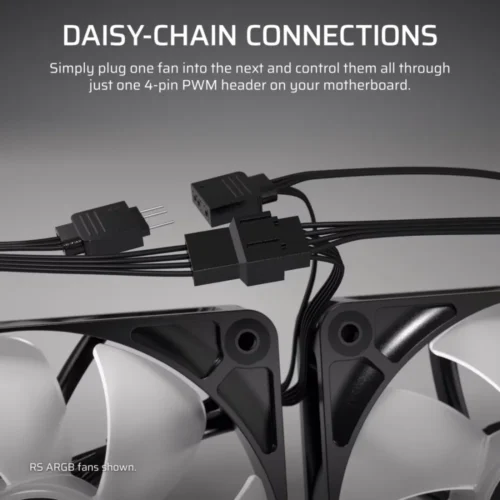

Direct Motherboard Connection
Skip fan hubs and unnecessary cables by daisy-chaining RS fans and controlling them all through a single 4-pin PWM connector on your motherboard.

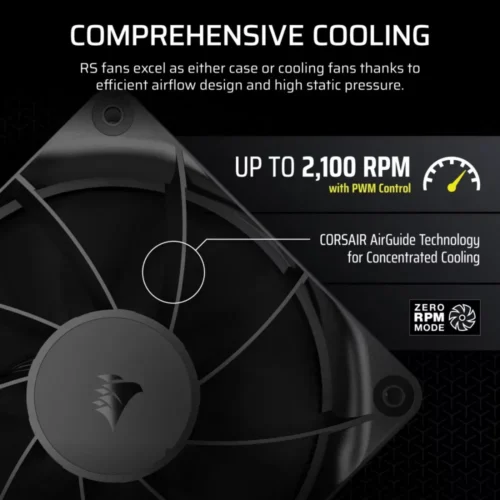

Airflow and Static Pressure
Improved fan performance depends on several key features, each of which improves how the fans deliver pressure and airflow to the heatsink or case. RS fans excel in both respects.

• Blade Shape
• Optimized sweep angle, airfoil shape, and edge curvature ensure maximum airflow efficiency.
• Fan Housing
• The fan housing allows for the largest possible blade radius within a given fan size.
• Corsair Airguide
• Stator blades are angled to direct the exhaust air cone and improve heatsink fin cooling and heat dissipation.

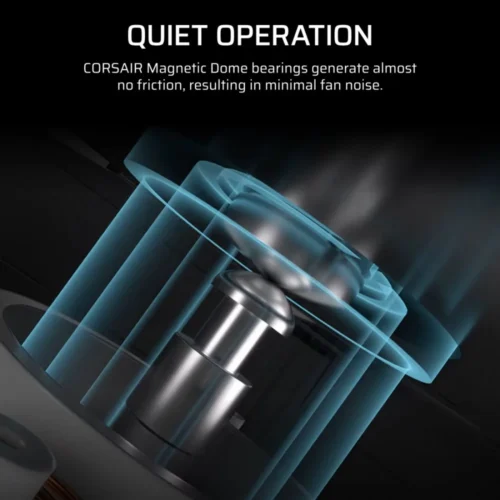

Magnetic Dome Bearing
The improved bearing minimizes friction and mechanical noise, providing a balance between powerful airflow and low sound levels. Furthermore, reduced friction translates to longer fan life.

ZERO RPM Mode
PWM technology allows for precise fan speed control, ensuring that the fans spin only at the desired speed and generate less noise. Zero RPM mode allows fans to be completely turned off under low load to eliminate noise.

Fan speed (max): 2100 rotations per minute
Fan speed (min): 420 rotations per minute
Air flow rates: 72.8
Illumination: No
Type of cooling: Active
Cooling technology: Air
Number of fans: 1
Fan: 12 cm
Connector type: 4-pin
Noise: 36 Decibel
Accessories included:

• RS120 fan
• 4 mounting screws

Dimensions:

120 mm x 25 mm

Weight: 0.239 kilogram
Other features:

• Fan static pressure: 0.2 – 4.15 mmH2O
• PWM control
• Power consumption: 0.4 A
