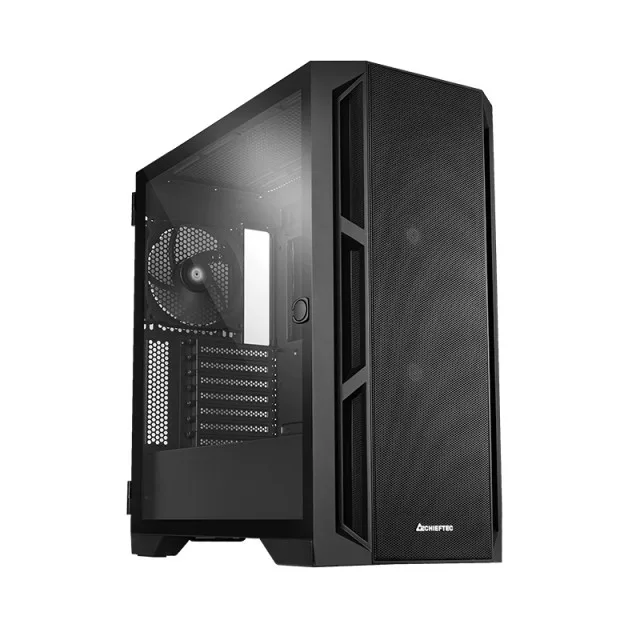

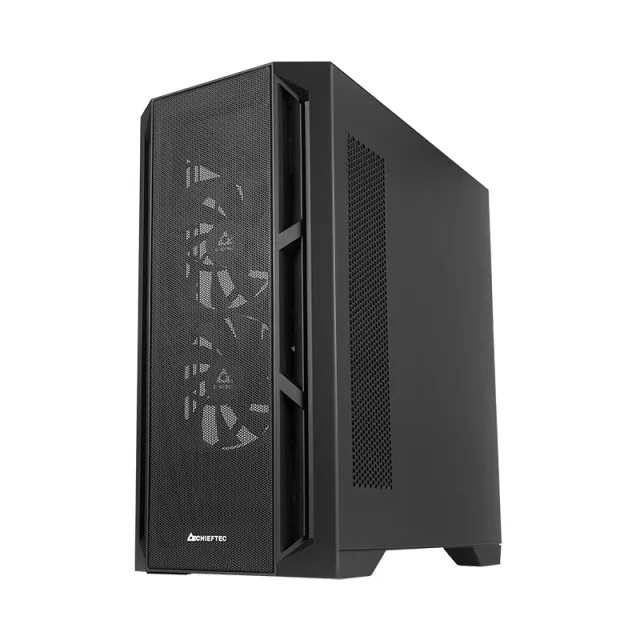

Chieftec Case APEX AIR GA-01B-M-OP 3xFans

Description:

The CHIEFTEC APEX AIR features an E-ATX case with a large mesh front panel and three pre-installed 140mm PWM fans, which when combined are designed to enable high airflow systems while maintaining low noise levels.

The 3x 140mm APEX AIR PWM fans are configured with 2 pre-installed at the front and 1 at the rear, ensuring a smooth airflow path from the front intake to the rear exhaust.

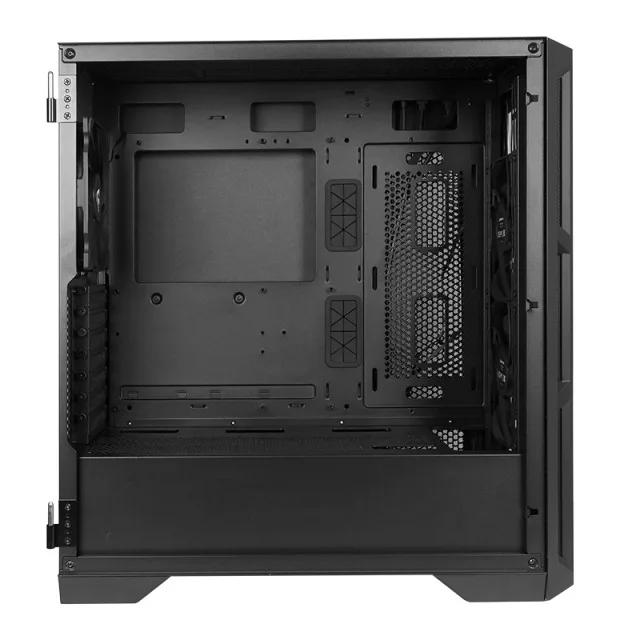

The case is spacious and offers support for GPUs up to 400 mm in length, CPU coolers up to 175 mm in height, and support for radiators up to 360 mm in height at the top and up to 420 mm in the front.

CHIEFTEC APEX AIR is ready to provide greater airflow and better cooling in modern gaming systems.

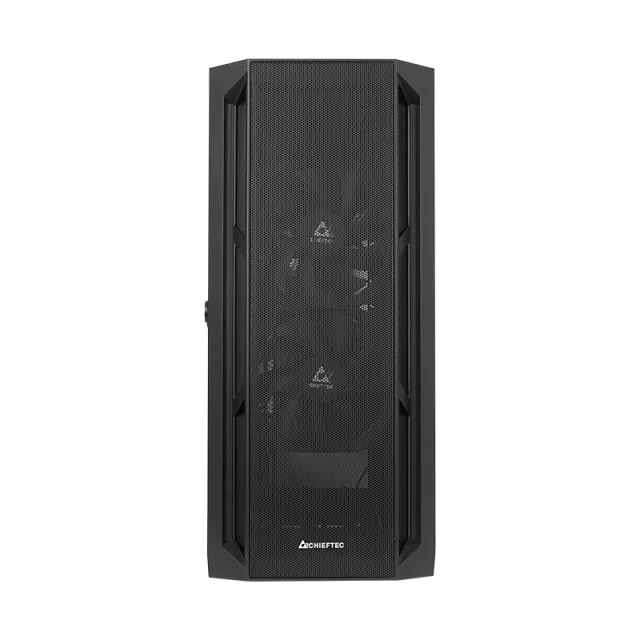

• Front mesh panel optimized for airflow
• Side panel made of TEMPERED GLASS
• Pre-installed 3 140 mm PWM fans

Chassis type: Big Tower
Form-factor: ATX
Form-factor: Micro ATX
Form-factor: Mini ITX
Form-factor: E-ATX
Side panel: Tempered Glass
Computer case backlight: No
No. of drive bays: 5
Drive bays 2.5“ intern.: 3
Drive bays 3.5“ intern.: 2
Power supply: Failure
Number of fans installed: 3
Fans installed: 2 x 140 mm (front)
Fans installed: 1 x 140 mm (back)
Maximum number of fans: 11
Optional fans: 3 x 120 mm or 3 x 140 mm (front)
Optional fans: 2 x 120 mm (side)
Optional fans: 2 x 120 mm (power supply cover)
Optional fans: 1 x 120 mm or 1 x 140 mm (rear)
Optional fans: 3 x 120 mm or 2 x 140 mm (top)
Ooptional water cooling: 1 x 360 mm (top)
Ooptional water cooling: 1 x 280 mm (góra)
Ooptional water cooling: 1 x 280 mm (front)
Ooptional water cooling: 1 x 360 mm (front)
Ooptional water cooling: 1 x 420 mm (front)
Ooptional water cooling: 1 x 240 mm (góra)
Ooptional water cooling: 1 x 240 mm (front)
Front panel connectors: 1 x USB 3.1 Typ C
Front panel connectors: 2 x USB 3.0
Front panel connectors: 1 x headphones
Front panel connectors: 1x microphone
Maximum length of the graphics card: 400 Millimetre
Maximum CPU cooling height: 175 Millimetre
Color: Black
Dimensions:

465 x 230 x 495 mm

Weight: 8.75 kilogram
Other features:
Designation:
