Description:

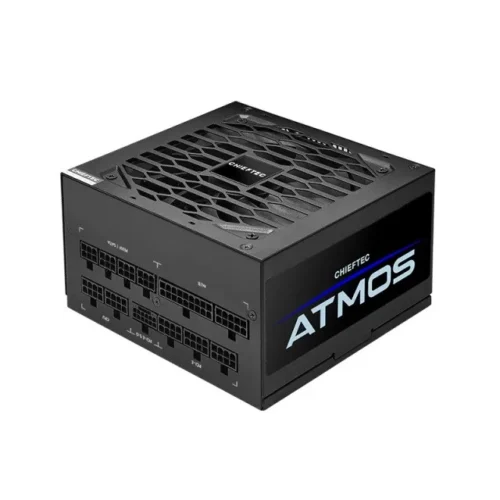

CPX-750FC 750W ATMOS 80PLUS Gold power supply
The CHIEFTEC ATMOS series is built according to the Intel ATX 3.0 standard and supports PCIe GEN5 with 80 PLUS GOLD certified performance, providing outstanding performance up to 850 W. The ATMOS series features state-of-the-art technical design, including a full-bridge SRC converter with DC-DC technology and Japanese capacitors ensuring durability and stability.
The quiet 135mm FDB fan from ATMOS optimizes the balance between cooling and noise with excellent durability, while the ECO fan mode enables fanless operation at low load. CHIEFTEC’s multiple protection technologies are designed to keep your system safe at all times.
Power supply: 750 W
Fan: 13.5 cm
PFC: Active
MOLEX power connectors: 4
Floppy power connectors: 0
SATA power connectors: 9
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 2
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 2
PCI-E 8-pin power connectors: 2
Number of power connectors PCI-E 16-pin Gen 5: 1
Number of power connectors 12VHPWR: 0
MB power connector: 20 + 4 pin
Modular power supply: Yes
Dimensions:
140 x 150 x 86 mm
Certificates 80+: 80 PLUS Gold
Accessories included:
Other features:
- AFC (automatic fan speed control)
- OPP (overload protection)
- OTP (Overheat Protection)
- OVP (overvoltage protection)
- SCP (Short Circuit Protection)
- SIP (surge and surge protection)
- UVP (undervoltage protection)
- OCP (Over Current Protection)
