Description:

DisplayPort -> HDMI active adapter AXAGON RVD-HI to connect HDMI monitor/TV/projector to the computer with the DisplayPort output.

The hardware конвертор without the need for any installation or setup ensures high-quality transfer of image and sound up to 1920×1200 at 60Hz.

The reduction is only one-way, i.e. the конвертор from DisplayPort to HDMI, not vice versa.

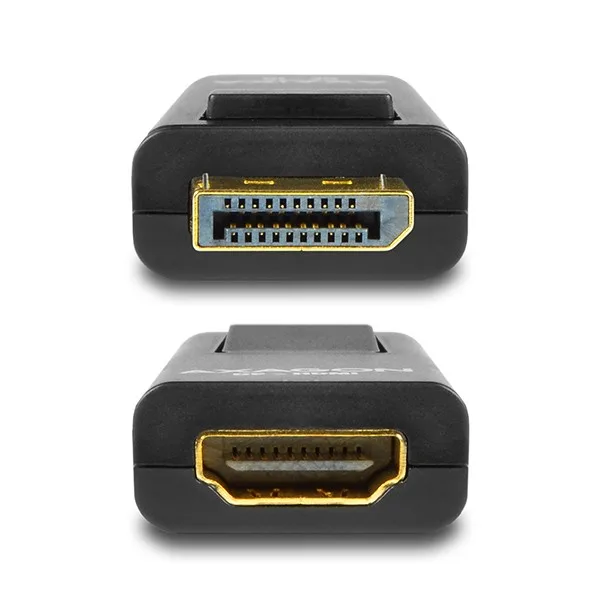

Input:
DisplayPort v1.1,
DP connector with latch (M) male,
connector latch control button.

Output:
HDMI v1.3a,
HDMI A (F) female connector.

Supported resolutions:
max. 1920 x 1200 (16:10) @60Hz WUXGA
1920 x 1080 (16:9) Full HD/1080p
1680 x 1050 (16:10) WSXGA+
1600 x 1200 (4:3) UXGA
1600 x 900 (16:9) HD+
1440 x 900 (16:10) WXGA+
1400 x 1050 (4:3) SXGA+
1366 x 768 (16:9) WXGA
1360 x 768
1280 x 1024 (5:4) SXGA
1280 x 960 (4:3) SXGA-
1280 x 800 (16:10) WXGA
1280 x 768 (5:3) WXGA
1280 x 720 (16:9) HD/WXGA/720p
1280 x 600
1152 x 864 (4:3) XGA+
1024 x 768 (4:3) XGA
800 x 600 (4:3) SVGA

Other features:
Sound transfer support.
DDC (Display Data Channel) support – Intelligent setting of resolution, frequency and other parameters according to the source graphics chip.
Supported modes: mirroring the primary monitor area (default setting), expanding the primary monitor area.
HPD (Hot-Plug-Detect) support – communication sequence controlling the connection/disconnection of the device while running.
Supports power saving modes with spinning down controlled by a source device (PC) and a viewing device (monitor/TV).
Power supply via bus – no external power is needed.
Gold-plated connectors for perfect contact and oxidation limitation.
NXP PTN3361BBS chip is used.
Miniature dimensions 56 x 24 x 12 mm.
Weight only 12 g.
Working temperature: 0 ~ 40°C.
Storage temperature: -10 ~ +85°C.

Supported OSs:
All versions of MS Windows, Mac OS, Linux and other operating systems.
It is a pure hardware конвертор, the transfer is provided only by a chip of the adapter without computer participation, no drivers are installed, so the compatibility is not dependent on the operating system used.

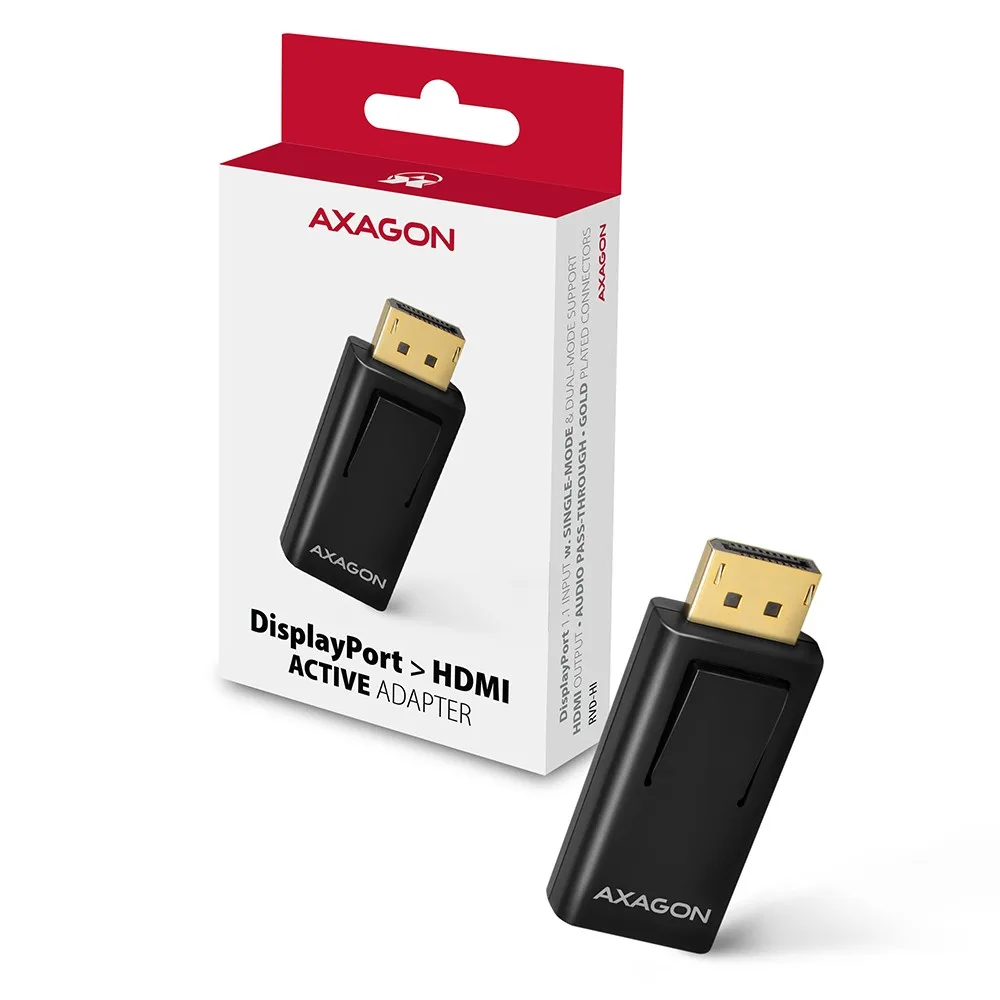

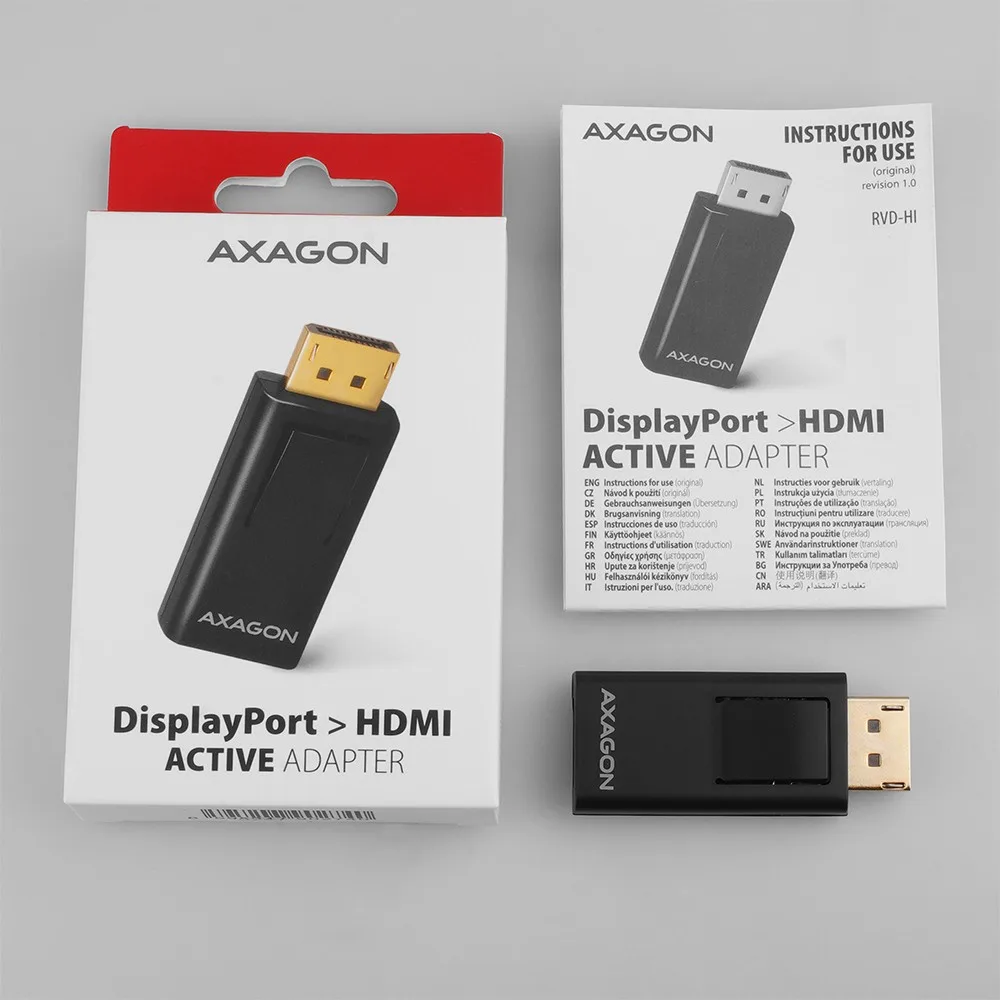

Package contains:
DisplayPort > HDMI конвертор,
printed multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box.
