AXAGON AXAGON CRE-SM4N Smart card reader USB 1.3m ca
Description:

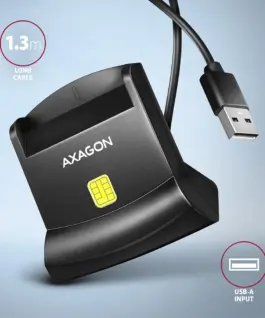

Desktop stand smart card / ID card reader AXAGON CRE-SM4N StandReader with USB 2.0 interface. The card reader supports all common contact smart card formats, chip cards and other cards, including contact bank payment cards or contact electronic ID cards *. The reader is compatible with most national applications for eID (electronic ID cards).
Compatibility with all common OS such as Windows, Linux and Mac OS and Android, allows wide use on desktops and Лаптопs as well as phones and Таблетs. The smart LED indicator lights up shortly after the activity change, then turns off and doesn’t bother the user with unnecessary light. Practical design, high-quality manufacturing, anti-slip pad and long cable ensure easy and trouble-free use.
Input:
USB 2.0 CCID protocol.
Backward compatible with USB 1.1.
Connection to Компютър via USB 2.0 type A male connector.
For connection to a phone or Таблет with a USB-C connector, we recommend a USB-C -> USB-A reduction, e.g. AXAGON RUCM-AFA. For connection to a phone with a micro USB connector, we recommend an OTG reduction micro USB -> USB-A.
Card reader:
1 slot supports contact ATM / CAC / ID / IC / SIS cards.
Supports ISO 7816 Class A, B and C contact Smart cards (5V, 3V and 1.8V).
Supports ISO 7816, EMV 4.1 (EMV 2000 level 1) standards.
Supports protocols T=0 and T=1, I2C, SLE 4432/42 (S=10), SLE 4418/28 (S=9).
PC/SC 2.0 PC Smart Card support.
Microsoft Smart Card for Windows support.
Supports I2C cards SLE4418, SLE4428, SLE4432, SLE4442, SLE4436, SLE5536, SLE6636, AT88SC1608, AT45D041.
Microsoft WHQL USB Smart Card Reader compliant.
FIPS 201 standards compliant.
Other features:
Microsoft USB-CCID driver compatible.
Plug and Play support.
Standby support, automatic standby mode.
Reader power via USB bus (bus-power).
Red LED indicates Компютър USB port connection (steady) and data transfer (flashing).
LED indicators lights up shortly after the activity change, then turns off and doesn’t bother.
LED indication shines through the contact symbol, which indicates inserted card orientation.
Weights at the bottom of the stand for better stability.
Anti-slip pad against spontaneous movement on the table.
Dimensions 77 x 56 x 49 mm, cable length 1.3 m.
Weight 82 g.
Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32- and 64-bit Windows OS versions), Mac OS X 10.x and higher, Linux with kernel 2.4.x and higher, Android 8 and above.

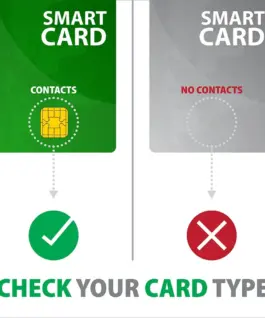

* Note: The reader only supports contact cards that have visible contacts on the surface. The card without contacts is therefore RFID and cannot be used in the reader.

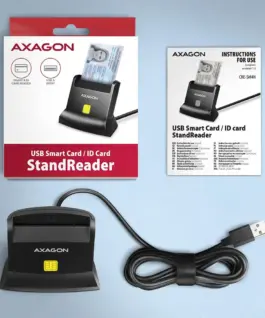

Package contains:
USB Smart card reader with 1.3 m hardwired cable,
multilingual guide CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
packed in a cardboard box with a hanging hole.
