AXAGON AXAGON CLR-M2L6 passive ALU heatsink height 6mm

AXAGON AXAGON CLR-M2L6 passive ALU heatsink height 6mm

Description:

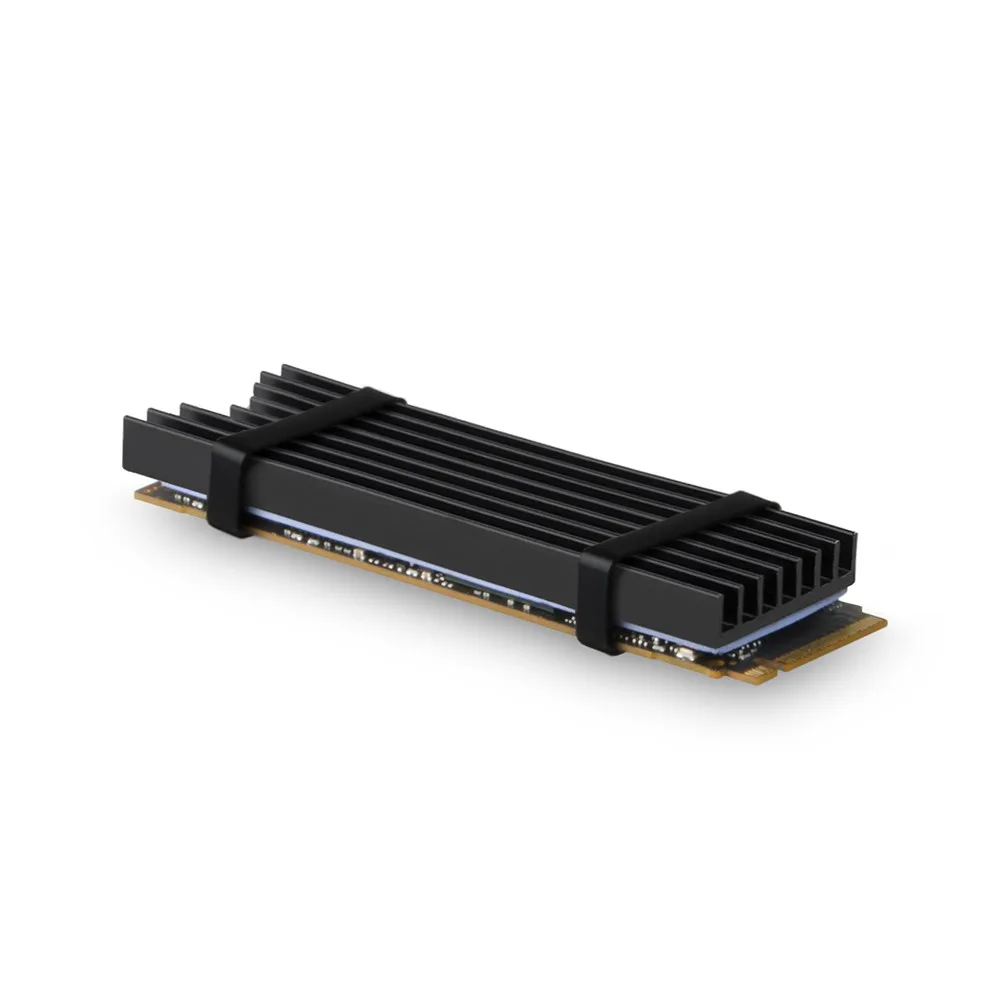

AXAGON CLR-M2L6 ALU passive heatsink for ideal cooling of high performance M.2 SSDs, especially NVMe.

The universal passive heatsink can be used for M.2 cards, size 22 x 80 mm. Two supplied thermally conductive pads allow cooler installation for all one-sided as well as double-sided M.2 SSD disks.

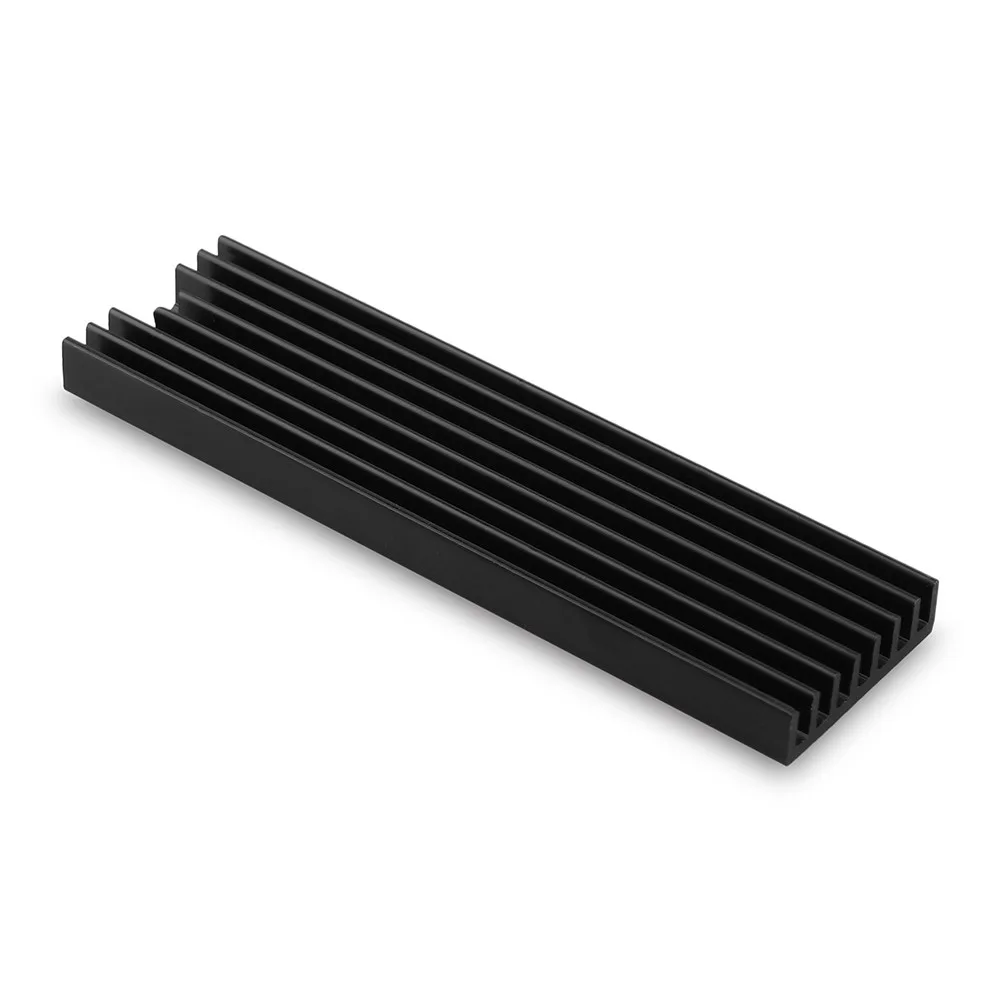

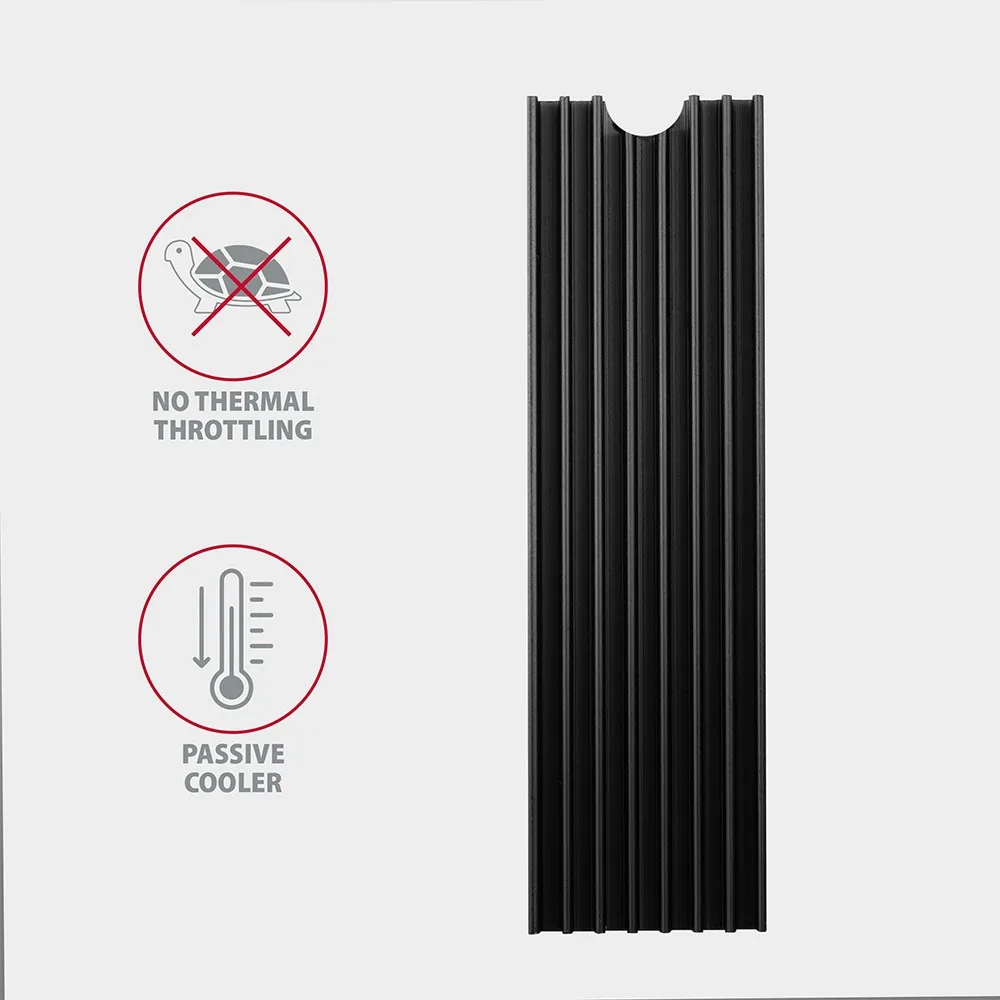

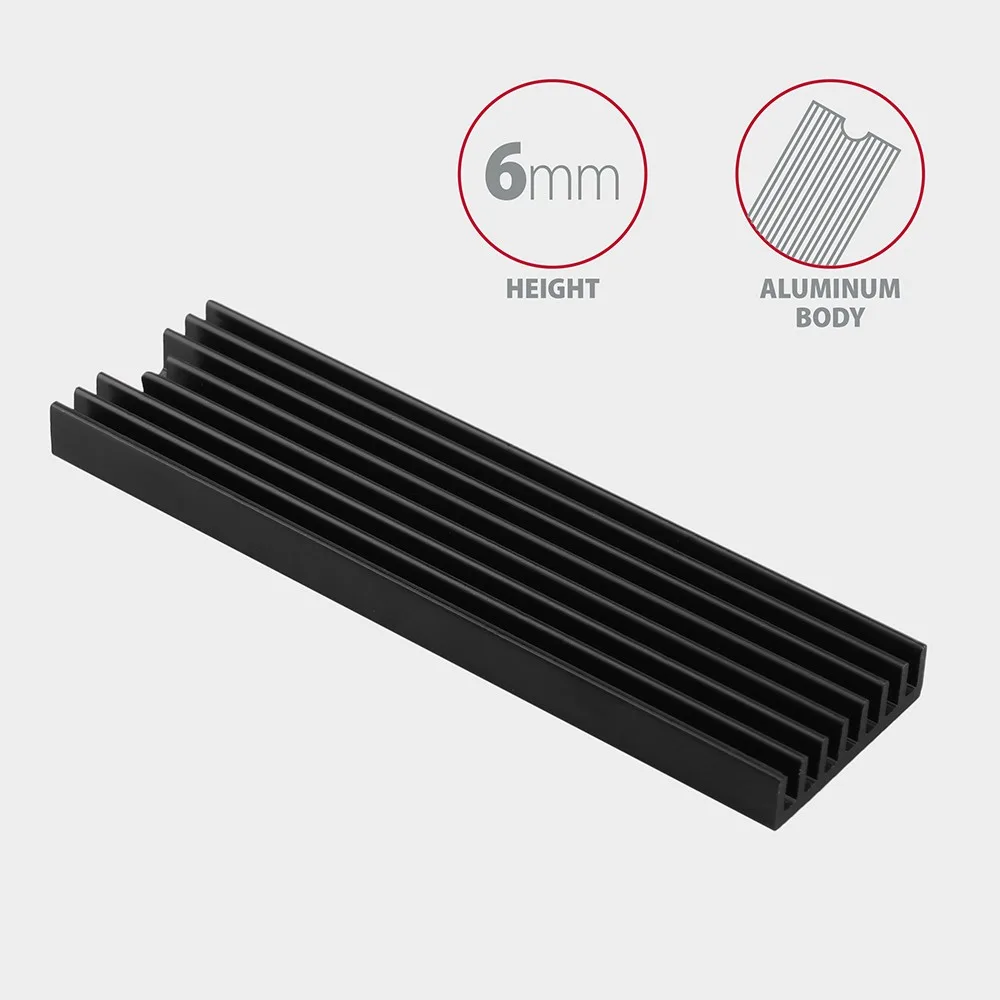

6mm high ribbed aluminum heatsink assists in a better dissipation of heat generated during the M.2 SSD operation. It also reduces the drive temperature by up to 20°C. This prolongs the M.2 SSD life and prevents disk slow down, so-called „Thermal Throttling“.

Thanks to its easy installation and compact dimensions, the heatsink can be used not only with M.2 AXAGON adapters, but also with M.2 (NGFF) slots on motherboards, etc. The heatsink has the ideal profile height / cooling efficiency ratio.

Features:

• Support of M.2 drives of any capacity.
• Support of both one-sided and double-sided M.2 drives.
• Support of M.2 drives, size 22 x 80 mm.
• Support of SATA (AHCI) as well as NVMe (PCI-Express) M.2 drives.
• Ribbed aluminum heatsink body.

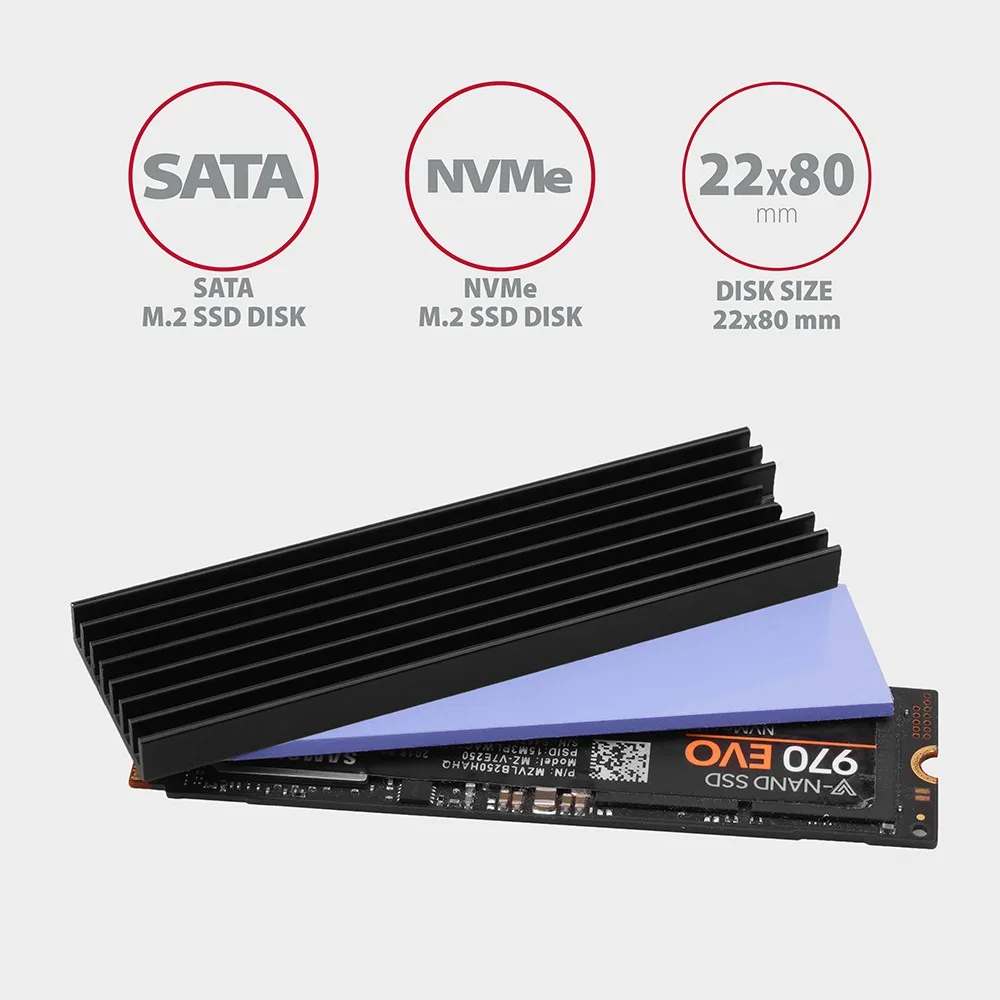

• 2 thermally conductive pads can be deliberately combined and used for both one-sided and double-sided SSDs.
• Compact dimensions 77 x 22 x 6 mm.
• Weight 13 g.

Package contains:

• Passive heatsink,
• 2 thermally conductive pads,
• mounting material,
• packed in a cardboard box with clearly indicated parameters

Compatible with:

M.2 SSD NVMe/SATA 22 x 80 mm

Power supply:
Color: Black
Dimensions:

77 x 22 x 6 mm

Weight: 13 gram
Accessories included:

• Passive heatsink,
• 2 thermally conductive pads,
• mounting material,
• packed in a cardboard box with clearly indicated parameters.

Other features:
Designation:
