Asus Access Point EBA63 AX3000

Asus Access Point EBA63 AX3000

Description:

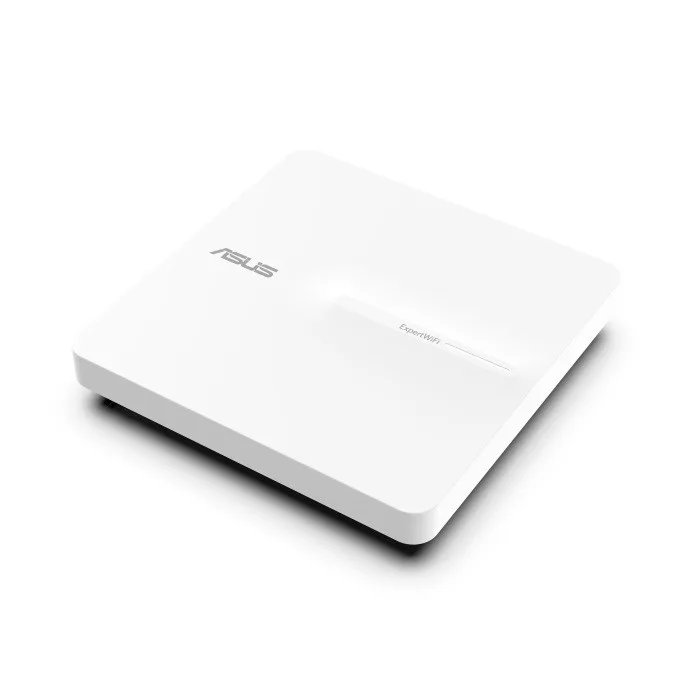

ASUS ExpertWiFi EBA63 AX3000 access point

Asus, a renowned electronics manufacturer, has created a device that impresses not only with its performance, but also with its design. The ASUS ExpertWiFi EBA63 access point is a compact device measuring 160 x 160 x 42 mm, which will fit perfectly into any interior without being too conspicuous.

Its wide data transmission bandwidth – both 2.4 GHz and 5 GHz – ensures a stable and fast connection regardless of the network load. The access point supports a range of standards, such as 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.11ax, IPv4 and IPv6, ensuring compatibility with a variety of devices.

The ASUS ExpertWiFi EBA63 offers comprehensive network protection with WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS and SSH protocols. So you can be sure that your data is safe and protected from unauthorized access.

Managing the device is extremely intuitive and easy. Device access control, time scheduling are just some of the features that make using the ExpertWiFi EBA63 access point a pleasure. The device has 4 internal antennas that provide a strong and stable signal.

Network architecture: GigabitEthernet
I/O ports: 1 x 10/100/1000 Mbit/s PoE
Operating frequency: 2,4 GHz
Operating frequency: 5 GHz
Standards: 802.11ac
Standards: 802.11ax
Standards: IPv4
Standards: IPv6
Standards: 802.11a
Standards: 802.11b
Standards: 802.11g
Standards: 802.11n
Number of antennas: 4
Antenna: Built-in
Security:

• WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
• WPS
• SSH

Management, monitoring, configuration:

Device access control:

• Time scheduling
• Rewarding
• Custom scheduling
• Maximum number of device access control profiles: 12
• Content filtering rule for maximum device access control: 12

Self-defined network type

• Employee
• Guest network
• Scheduled network
• Maximum Self-Defined Network Rule: 16
• VLAN
• Wi-Fi Scheduling: one-time access
• Wi-Fi scheduling: weekly schedule
• Wi-Fi Sharing: QR code, PDF file
• Isolated AP

Traffic monitoring:

• Real-time traffic monitoring
• Wired traffic monitoring
• Wireless traffic monitoring

Wireless network:

• UTF-8 SSID
• Wi-Fi MAC address filter
• Maximum number of MAC filters: 64
• Wireless scheduler

User interface:

• WEB: ASUSWRT
• APPLICATION: ASUS ExpertWiFi application.

Administration:

• Configuration backup and restore
• Diagnostic tools
• Feedback system
• System log
• Notification when a new device is connected
• Login Captcha
• Connection diagnosis
• Automatic firmware update

Special functions:
Power supply:

• PoE 802.3af
• 12V @ 1.5A DC max (power supply included)

Software:
System Requirements:
Environment requirements:
Certificates:
Accessories included:

• ExpertWiFi EBA63 Access Point
• RJ-45 Cable
• Power Supply
• Warranty Card
• Quick Start Guide
• Wall Mount Kit

Color: White
Weight: 426 gram
Dimensions:

160 x 160 x 42 mm

Other features:

• AiMesh
• Quad-core 1.7 GHz processor
• Wall and ceiling mounting

Memory:

• 256 MB Flash
• 512 MB RAM

Data transmission speed:

• 802.11a: up to 54 Mbps
• 802.11b: up to 11 Mbps
• 802.11g: up to 54 Mbps
• WiFi 4 (802.11n): up to 300 Mbps
• WiFi 5 (802.11ac): up to 1734 Mbps
• WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
• WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps

Designation:
