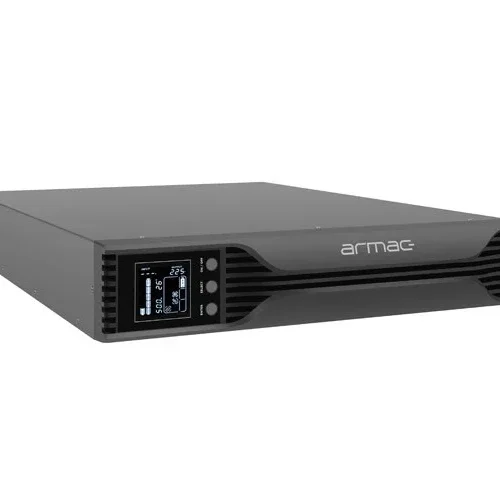

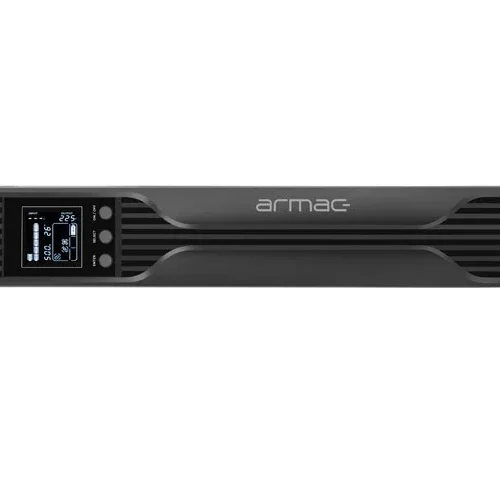

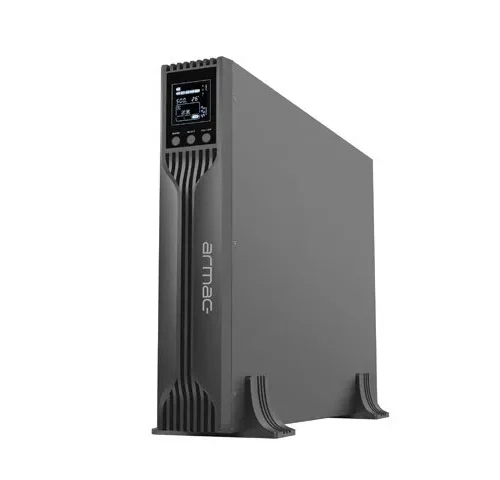

Armac UPS Line-Interac 3000VA 8X230 IEC R/3000I/PS

Armac UPS Line-Interac 3000VA 8X230 IEC R/3000I/PS

Description:

Armac Rack PSW series UPS R/3000I/PSW was designed for demanding users who want to safely maintain the work of electronic equipment within 19 Rack cabinet (and not only) that consumes a lot of energy in the event of a power outage.
Paused operation, failure of electronic devices can cause not only severe financial losses but also the loss of essential data. That is why it is worth investing in the UPS model R/3000I/PSW, which will prevent many unpleasant effects of potential overvoltage.

DEDICATED FOR 19 RACK SERVER CABINETS
The purpose of uninterruptible power supplies from the Rack PSW series is to ensure security of equipment in server, IT rooms, etc. Dedicated to 19 Rack server cabinets, the R/3000I/PSW model provides comprehensive protection against overvoltages, while regulating the voltage of the powered device and maintaining its operation in the event of a power outage.

WIDER FIELD OF APPLICATION
UPS R/3000I/PSW is a high-quality uninterruptible power supply with Line-interactive topology.
The aspect that distinguishes this series of uninterruptible power supplies from the standard models in this group is the pure sine wave on the UPS output sockets. For the user, this means the broader possibility of using an emergency power supply to support the operation of equipment with an electric motor or heater, e.g., laser printers, scanners, garage and entry gates, electric blinds, central furnaces, etc.

EFFICIENT, FUNCTIONAL SOLUTION
Uninterruptible power supply model R/3000I/PSW was created for the most demanding tasks within 19 Rack cabinets, such as supporting the work of workstations, servers or high energy consumption network/surveillance systems. The UPS can perform such hard work due to the use of more efficient 9Ah batteries, with a Power Factor of 0.7. What is more, this model has 8 IEC 320 C13 output sockets, with which it can protect several devices at once.

Due to the nature of its operation (Pure sine wave during battery operation), the UPS can be used with devices with an electric motor or heater, e.g., laser printers, scanners, garage and entry gates, electric roller blinds, central heating furnaces.

POSSIBILITY OF EXTENDING THE BACKUP TIME
There are situations in which much more time is needed to ensure the safety of electronic devices during a power failure. Therefore, to extend its battery backup time, the R/3000I/PSW uninterruptible power supply is equipped with a socket for connecting additional, dedicated Battery Pack B/0409/R modules. However, it is worth remembering that when connecting BP, make sure that the combined voltage of the UPS battery and the BP module is the same.

CONVENIENT OPERATION MONITORING SYSTEM
The Armac uninterruptible power supply communicates via the USB port. It allows you to connect the UPS to the PC and issue commands or monitor the operation of the device using PowerManager II software. It is a convenient and straightforward way to ensure proper protection for valuable equipment.

Apparent power: 3000 VA
Active power: 2100 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 4
Voltage: 12 Volt
Battery capacity: 9 Ah
Hold-up time (maks): 10 millisecond
Transfer time (max): 6 millisecond
Charging time: 8 Hour
Chassis type: Tower
Special functions:
Software:

PowerManager II

Input power ports: IEC-C20

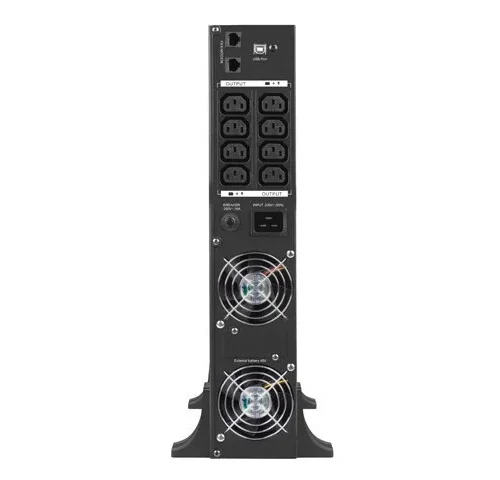

Output power ports: 8 x IEC-C13
I/O connectors: 2 x RJ-11/RJ-45
I/O connectors: 1 x USB (Type B)
Environment requirements:

• Recommended ambient temperature: 0-40 degrees Celsius
• Recommended ambient humidity: 10-90%

Accessories included:
Color: Black
Dimensions:

• Height: 88 mm
• Width: 530 mm
• Length: 440 mm

Weight: 28.5 kilogram
Other features:
Designation:
