APC SRV2KIL SRV 2000VA 230V with Ex

APC SRV2KIL SRV 2000VA 230V with Ex

Description:

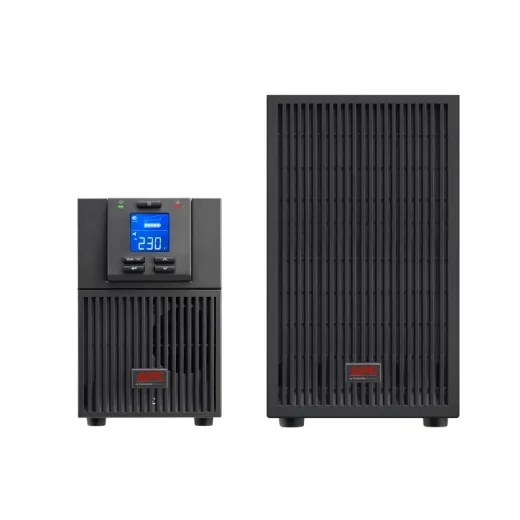

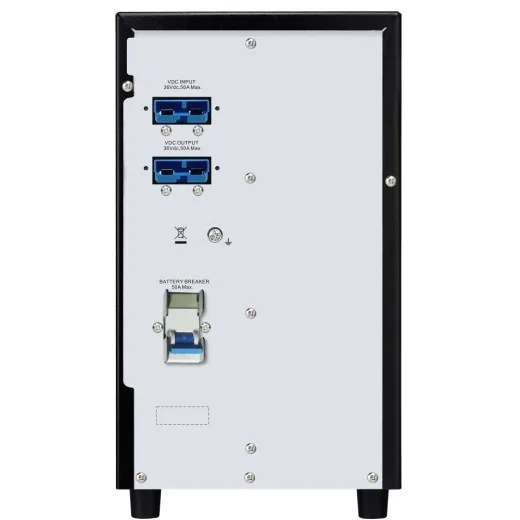

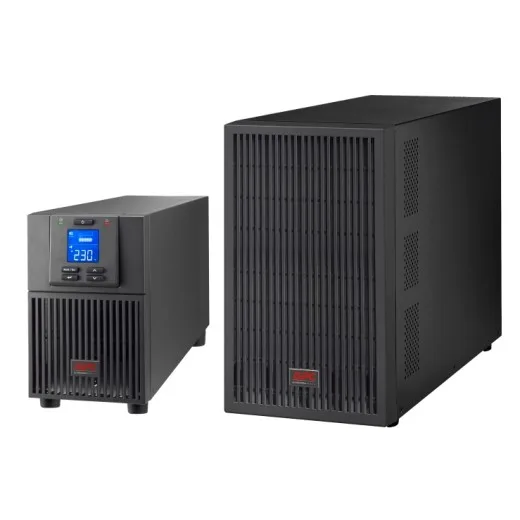

APC Easy UPS On-Line SRV 2000 VA 230 V with extended battery pack

• Automatic internal bypass: purely static bypass switch without contactor bridging for fast and reliable transitions in and out of bypass, suitable for 125% of the rated load.
• Automatic restart of loads after UPS shutdown: automatically restarts connected equipment when mains power returns.
• ECO mode: an operating mode that bypasses unused electrical components under good power conditions to achieve high operational efficiency without sacrificing protection
• Input power factor correction: Minimises installation costs by allowing the use of smaller generators and cabling.
• Intelligent battery management: maximises battery performance, life and reliability through intelligent, precise charging.
• Intelligent card slot: customise the UPS’s capabilities with management cards.
• LCD graphic display: text and synoptic diagrams that display operating modes, system parameters and alarms.
• Serial connectivity: Provides UPS management via a serial port.
• USB connectivity: Provides UPS management via the USB port (not available on all models).

Apparent power: 2000 VA
UPS Architecture: on-line double conversion
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 72 Volt
Charging time: 5.5 Hour
Chassis type: Tower
Special functions:
Software:

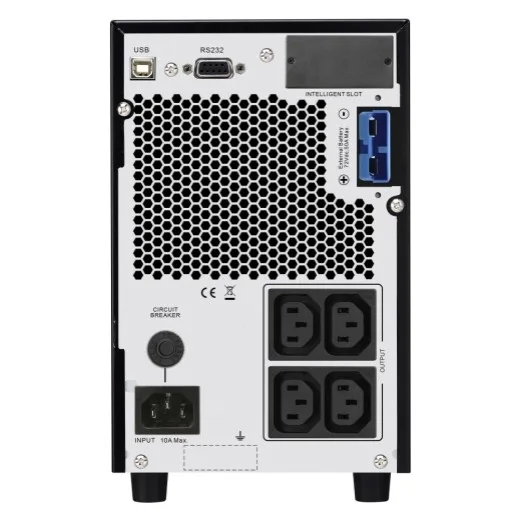

Input power ports: IEC-C14
Output power ports: 4 x IEC-C13
I/O connectors: 1 x USB (Type B)
I/O connectors: 1 x RS-232 (COM)
Environment requirements:
Accessories included:

• Software CD
• USB cable
• User manual

Color: Black
Dimensions:

336 x 335 x 425 mm

Weight: 45.4 kilogram
Other features:
Designation:
