APC SRTL5KRM2UI APC Smart-U PS Ultra On-Line Lithiu

APC SRTL5KRM2UI APC Smart-U PS Ultra On-Line Lithiu

Description:

Very high power density, On-Line power protection with lithium-ion batteries and scalable backup time options.

The APC Smart-UPSTM Ultra is the smallest and lightest 5kW Li-Ion UPS

The world’s most popular UPS is now available with extended battery life and a compact design. APC’s Smart-UPS Ultra offers reliable, premium power protection to ensure network and data availability. Designed for local edge environments and micro data centers, the Smart-UPS Ultra provides consistent and reliable connectivity in the most critical moments. The lightweight and compact size of the UPS and the auto-rotating display allow hassle-free installation. Longer UPS battery life and lower maintenance costs result in a lower total cost of ownership over 10 years. It’s confidence in a connected world.

• Rack/tower mountable
• Save extra effort or investment when migrating from tower to rack with auto-rotating LCD display and smart installation kits.
• Flash updateable firmware
• Remote installation of firmware maintenance releases via FTP.
• Plug-and-play external batteries
• Provides clean, uninterrupted power to your loads while adding extra runtime to your UPS.

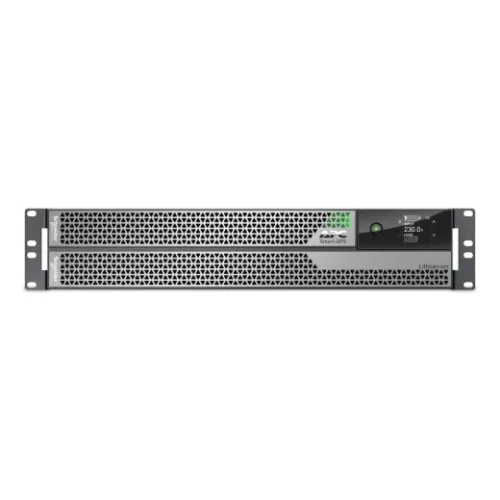

• High resolution LCD display with virtual touch keys
• Quickly know device and power status with clear indications.
• Compatible with InfraStruXure Manager
• Enables centralized management via APC InfraStruXure Manager.
• Web-based management
• Most models provide options for remote management of UPS power over the network. Many of them do not have a built-in NMC card.
• Serial connectivity
• Provides management of the UPS through the serial port.

Apparent power: 5 kVA
Active power: 5 Kilowat
UPS Architecture: on-line
The shape of the output voltage: Full sine wave
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 180 Volt
Backup time (100% load): 5 Minute
Charging time: 1.5 Hour
Chassis type: Tower
Filters / protection: Surge
Special functions:

• Cold start capability
• Provides temporary battery power when the mains supply is switched off.
• Frequency and voltage regulation
• Provides higher application availability by correcting poor frequency and voltage conditions without using batteries.
• Generator-compatible
• Provides clean, uninterrupted power to protected equipment when using a generator.
• Input power factor correction
• Minimises installation costs by allowing the use of smaller generators and cabling.
• Power conditioning
• Protects connected loads from surges, voltage spikes, lightning and other power disturbances.
• Resettable circuit breaker
• Easy regeneration after overloads, no need to replace the fuse. (Not available on Wall Tap SKUs)
• Safety agency approved
• Ensures that the product has been tested and approved for safe operation with connected service provider equipment and in the specified environment.

Software:
Input power ports:

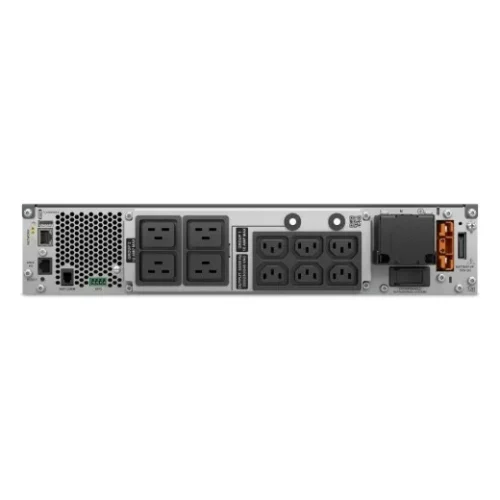

Output power ports: 4 x IEC-C19
Output power ports: 6 x IEC-C13
I/O connectors: 2 x RJ-45 LAN
I/O connectors: 1 x USB 2.0
Environment requirements:

• Operating temperature: 0 – 40°C
• Operating relative humidity: 0 – 95 (non-condensing) %
• Operating altitude: 0 – 3048 meters
• Storage temperature: -15 – 45°C
• Storage relative humidity: 0 – 95 (non-condensing) %
• Storage altitude: 0 – 15240 meters

Accessories included:

1 CD (software and documentation)

Color: Black
Dimensions:

8.6 x 43.2 x 70.1 cm

Weight: 29.2 kilogram
Other features:

• Automatic restart of loads after UPS shutdown
• Automatically restarts connected equipment when mains power is restored.
• Best-in-class compact design
• It enables flexible edge computing applications with the highest power and energy densities and multiple mounting options
• Live replaceable batteries
• Provides clean, uninterrupted power to protected equipment during battery replacement
• Automatic internal bypass
• Pure static bypass switch without bridging contactor for fast and reliable transfer to and from bypass, rated at 125%.
• Long battery life
• Increases availability by saving you the time and effort of changing batteries over its lifetime.
• Scalable uptime
• Allows you to quickly add extra work time when needed.
• Audible noise at a distance of 1 meter from the surface of the device: 55.0 dBA
• Online heat dissipation: 931.0 BTU/hr
• Protection class: IP20
