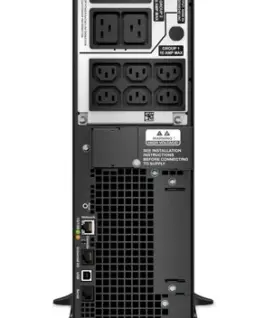

APC SRT5KXLI Smart-UPS SRT 5000VA Tower 230V

APC SRT5KXLI Smart-UPS SRT 5000VA Tower 230V

Description:

APC Smart-UPS SRT 5000VA 230V

APC Smart-UPS On-Line, 4500 Watts/5000 VA, Input 230V/Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model

Apparent power: 5 kVA
Active power: 4500 Watt
UPS Architecture: on-line double conversion
Number of phases input: 1 (230V)
Backup time (100% load): 4 Minute
Charging time: 3 Hour
Chassis type: Tower
Special functions:

– LCD graphics display
– Flash upgradeable firmware
– Rack/Tower convertible
– Plug-and-Play external batteries
– Save time with easy and convenient remote accessibility.
– Network manageable via serial, USB or optional Ethernet. Includes Powerchute&#174, Network
– Low operating and maintenance costs with proven reliability and intelligent battery management.
– Avoids costly power problems by keeping your IT equipment and data protected and available.
– Peace of mind that comes with full equipment compatibility and reliability of a leader
– Cold-start capable
– Generator compatible
– Safety-agency approved
– Frequency and voltage regulation
– Resettable circuit breaker
– Input power factor correction
– Power conditioning
– Scalable runtime
– Temperature-compensated battery charging
– Automatic internal bypass
– Automatic restart of loads after UPS shutdown
– Hot-swappable batteries
– Intelligent battery management
– Automatic self-test
– User-replaceable batteries
– Disconnected battery notification
– Predicitive failure notification
– Audible alarms
– Serial connectivity
– LED status indicators
– SmartSlot
– InfraStruXure Manager Compatible
– Network manageable

Software:
Input power ports: Hard Wire 3-wire (1PH + N + G)
Output power ports: 4 x IEC-C19
Output power ports: 6 x IEC-C13
Connectors: RJ-45
Connectors: SmartSlot
Connectors: 1 x USB (Typ B)
Environment requirements:

– Operating Environment: 0 – 40 &#176,C
– Operating Relative Humidity: 0 – 95% no %
– Operating Elevation: 0-3000 meters
– Storage Temperature: -15 – 45 &#176,C
– Storage Relative Humidity: 0 – 95% no %
– Storage Elevation: 0-15000 meters
– Audible noise at 1 meter from surface of unit: 55.0 dBA
– Online thermal dissipation: 931.0 BTU/hr
– Protection Class: IP 20

Accessories included:

– Documentation CD
– Installation guide
– Removable support feet
– Warranty card

Color: Black
Dimensions:

– Height: 432 mm
– Width: 130 mm
– Depth: 719 mm

Weight: 54.55 kilogram
Other features:

– Nominal Input Voltage: 230V
– Input frequency: 40-70 Hz (auto sensing)
– Input Connections: Hard Wire 3 wire (1PH+N+G)
– Input voltage range for main operations: 160-275 V
– Input voltage adjustable range for mains operation: 100-275 (half load) V
– Other Input Voltages: 220, 240
– Interface Port(s): RJ-45 10/100 Base-T , RJ-45 Serial , Smart-Slot , USB
– Surge energy rating: 480 Joules
– Nominal Output Voltage: 230V
– Output Voltage Distortion: Less than 2%
– Output Frequency (sync to mains): 50/60Hz +/- 3 Hz
– Other Output Voltages: 220, 240
– Load Crest Factor: 3 : 1
– Topology: Double Conversion Online
– Waveform type: Sine wave
– Bypass: Internal Bypass (Automatic and Manual)
