APC SMX1500RMI2UNC X 1500VA USB/AP9631/RS/LCD/RT 2U

APC SMX1500RMI2UNC X 1500VA USB/AP9631/RS/LCD/RT 2U

Description:

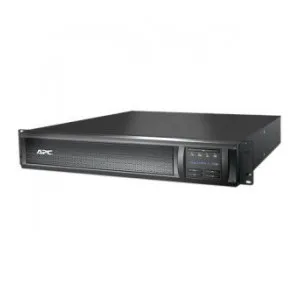

APC Smart-UPS X 1500VA Rack/Tower LCD 230V with Network Card

APC Smart-UPS,1200 Watts /1500 VA,Input 230V /Output 230V, Interface Port SmartSlot, USB, Extended runtime model, Rack Height 2 U

Apparent power: 1500 VA
Active power: 1200 Watt
UPS Architecture: line-interactive
Number of phases input: 1 (230V)
No. of batteries: 1
Voltage: 48 Volt
Backup time (100% load): 5.8 Minute
Charging time: 3 Minute
Chassis type: Rack
Chassis type: Tower
Special functions:

Remote UPS management
EPO
High online efficiency
Green mode
High frequency design
Energy meter
Predictive replace battery date
Intuitive LCD interface
Auto recognition of external batteries
Multiple switched outlet groups
Pure sine wave output on battery
Preinstalled network management card
Scalable runtime
– Cold-start capable
– Plug-and-Play external batteries
– Rack/Tower convertible
– SmartSlot
– Temperature-compensated battery charging
– Boost and Trim Automatic Voltage Regulation (AVR)
– Intelligent battery management
– Power conditioning
– Temperature-compensated battery charging
– Automatic restart of loads after UPS shutdown
– Automatic self-test
– Disconnected battery notification
– Network manageable
– Audible alarms
– LED status indicators
– Serial connectivity
– USB connectivity
– Disconnected battery notification
– User-replaceable batteries
– Hot-swappable batteries
– Predictive failure notification
– Resettable circuit breakers
– Battery failure notification
– Adjustable voltage-transfer points
– Adjustable voltage sensitivity
– Safety-agency approved

Software:

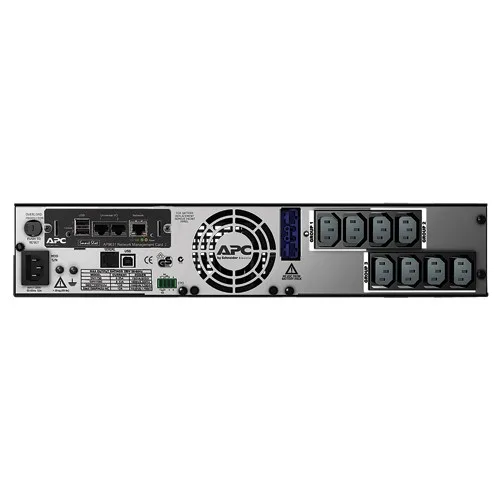

Input power ports: IEC-C14
Output power ports: 8 x IEC-C13
Connectors: SmartSlot
Connectors: 1 x USB (Typ B)
Environment requirements:

– Operating Environment: 0 – 45 &#176, C
– Relative Humidity: 0 – 95%
– The height above sea level Operating: 0-3000 m
– Temperature (storage): -15 – 45 &#176, C
– Relative humidity (storage) 0 – 95%
– The height above sea level (storage): 0-15000 m
– The noise level at 1 meter from surface of unit 40.00 dBA
– Dissipation: 133.00 BTU / hr.

Accessories included:

– CD with software
– Documentation CD
– Installation guide
– Rack Mounting support rails
– Removable support feet
– Smart UPS signalling RS-232 cable
– USB cable

Color: Black
Dimensions:

– Height: 89 mm
– Width: 432 mm
– Depth: 490 mm
– Rack Height 2U

Weight: 24.82 kilogram
Other features:

– Output Power: 1200W
– Output voltage: 230V
– Waveform Type: Sine wave
– 2 x IEC Jumpers
– Input voltage: 230V, 160-286V
– Load Breaker: 10A
– Pre-installed cards SmartSlot: AP9631
– Emergency power supply
– Surge energy rating: 645 joules
