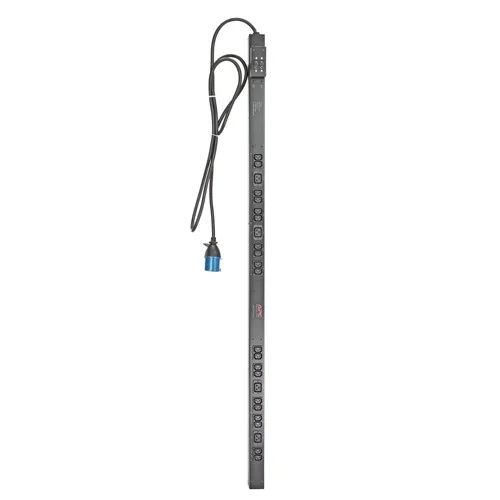

APC AP7553 RACK PDU BASIC ZERO U 32A 20xC13/4xC19

APC AP7553 RACK PDU BASIC ZERO U 32A 20xC13/4xC19

Description:

APC Basic Rack PDU, Input: 200V, 208V, 230V, Input Connections: IEC 309 32A 2P + E, Cord Length: 10 feet (ft.) (3.05 meters), Output: 230V, Output Connections: IEC 320 C13, IEC 320 C19

Color: Black
Dimensions:

Net weight: 5.57 Kg

The maximum height: 1619.00 mm

The maximum width: 56.00 mm

Maximum depth: 44.00 mm

Package weight: 6.48 KG

Height in transport packaging: 2134.00 mm

Width in the transport packaging: 152.00 mm

Delivery height: 127.00 mm

Certificates:

CE, VDE

Technical specifications:

At the exit:

•      Output voltage: 230V
•      Maximum total power consumption: 32A
•      Output sockets: (20) IEC 320 C13, (4) IEC 320 C19

At the entrance:

•      Nominal input voltage: 200V, 208V, 230V
•      Frequency at input: 47 – 63 Hz
•      Input jack type: IEC 309 32A 2P + E
•      Power cord length: 3.05 meters
•      Number of power cables: 1
•      Maximum input current: 32A
•      Loading level: 7360 VA

Environmental parameters:

•      Operating environment: 0 – 45 ° C
•      Relative humidity during operation: 0 – 95%
•      Height m.p. during work: 0-3000 meters
•      Temperature (storage): -25 – 65 ° C
•      Relative humidity (storage): 0 – 95%
•      Height m.p. (storage): 0-15000 meters

Included:

• User manual
• Clamps for mounting in industrial cabinets
• Assembly kit without tools
