AKYGA TFX захранващ блок 2350W

AKYGA TFX захранващ блок 2350W

Description:

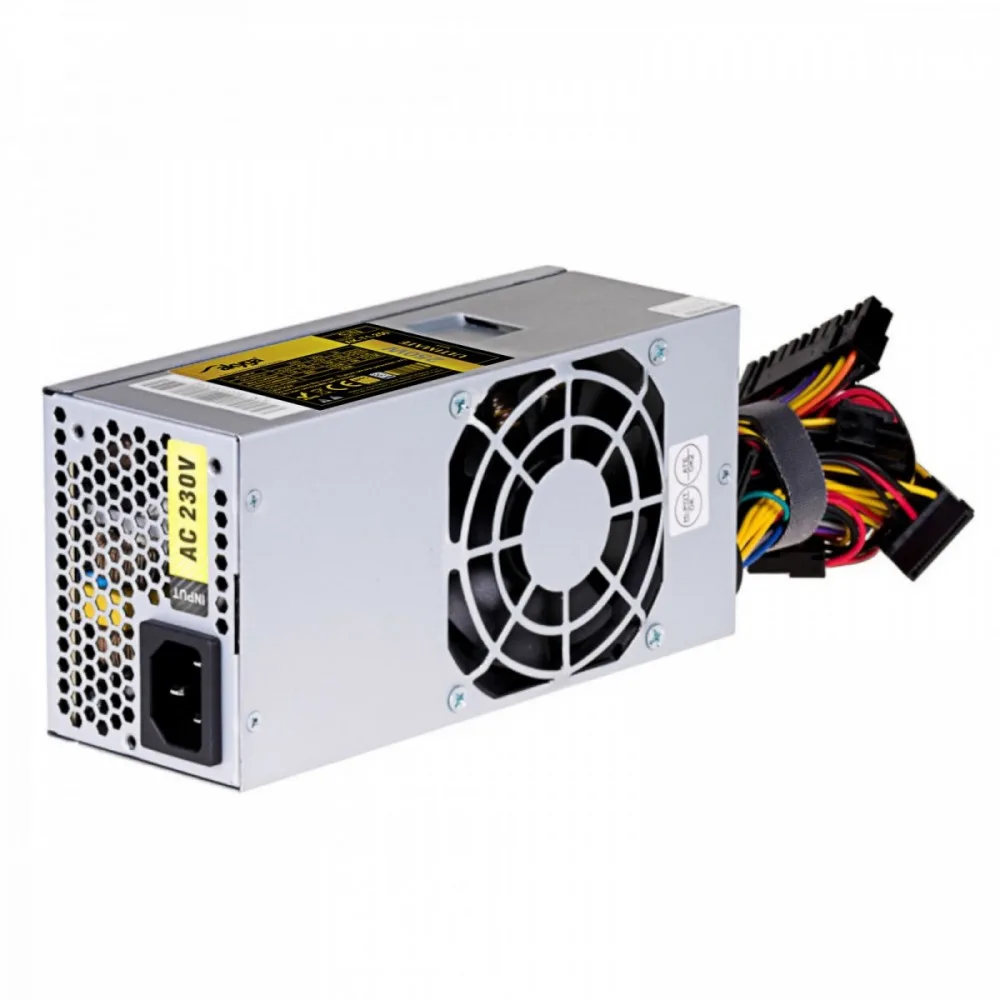

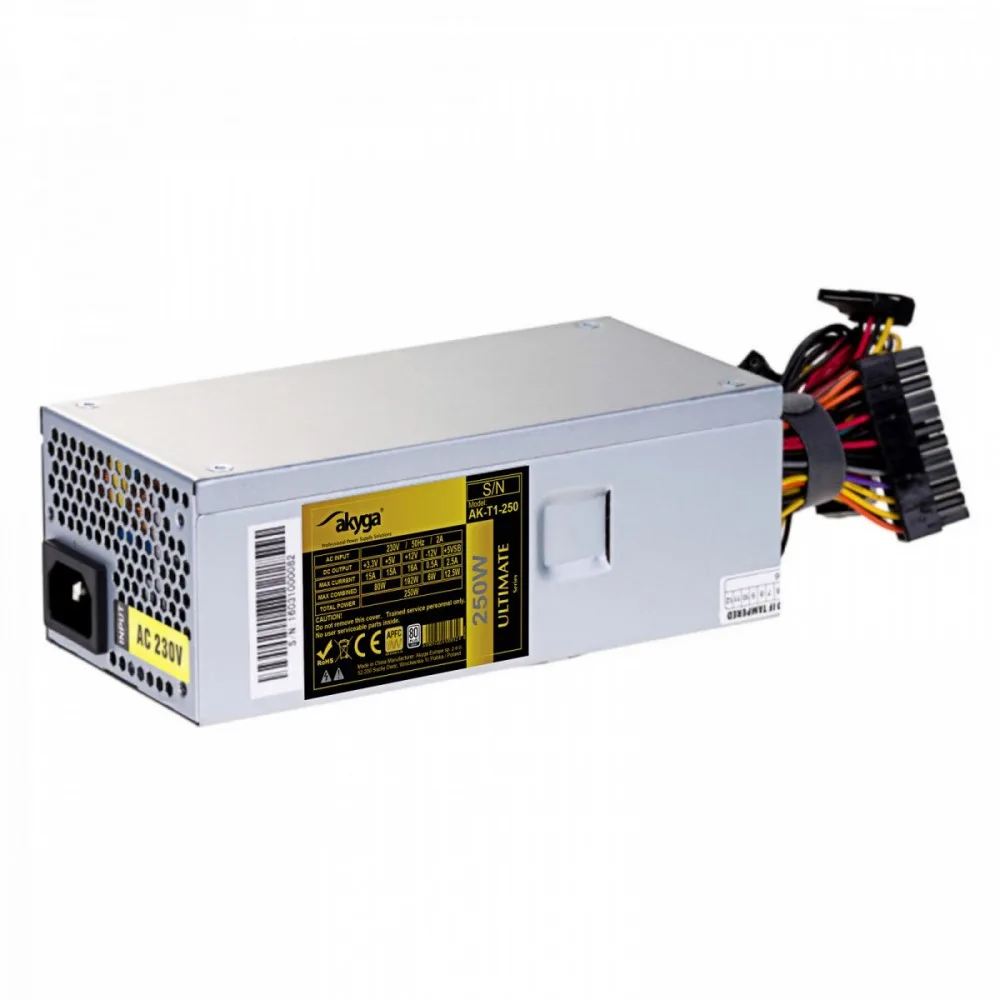

The Akyga AK-T1-250 TFX power supply 250W is an advanced, compact power adapter dedicated to mini and media PC systems. It supports all the latest construction standards, ensuring high performance and stability.

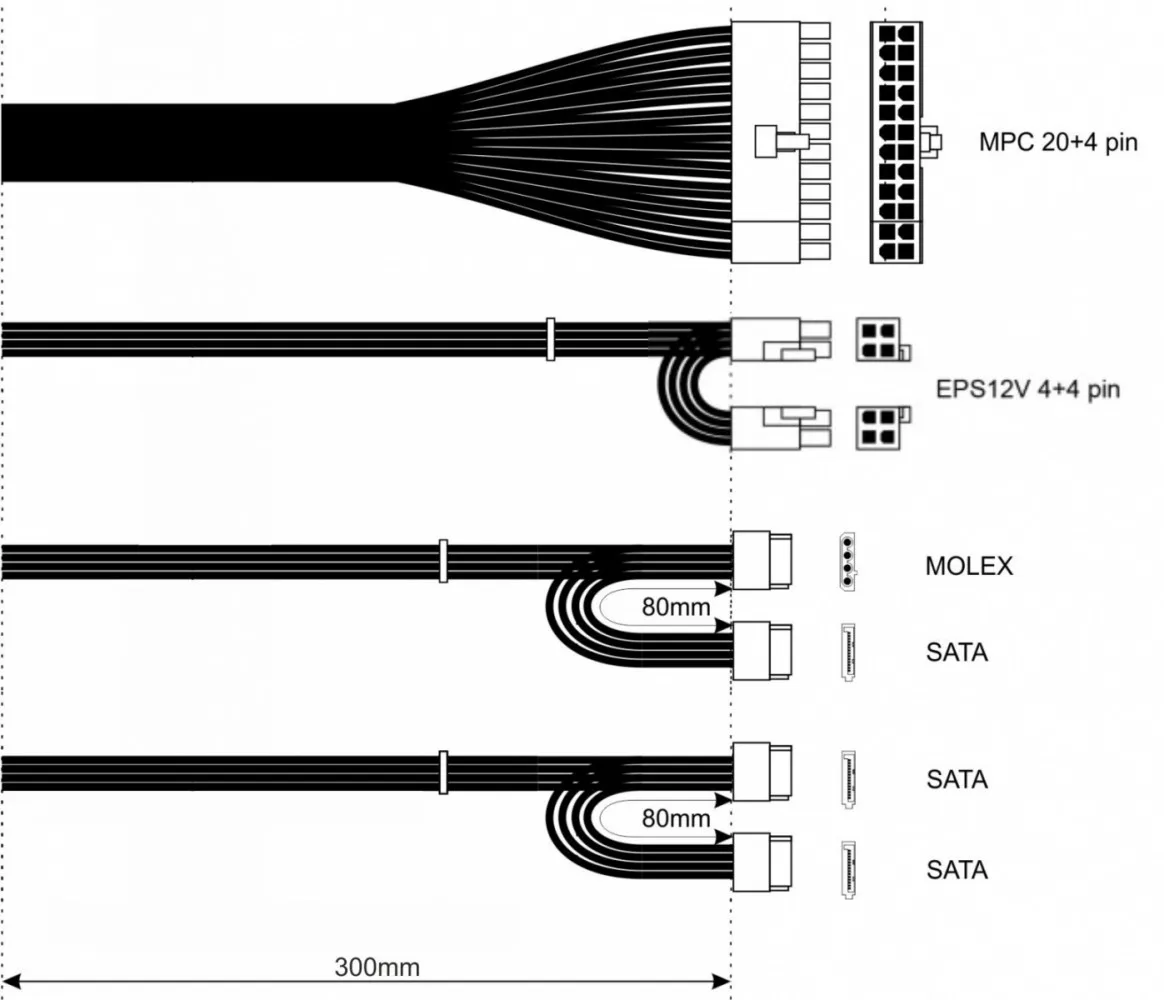

The power supply features a 4-pin connector, MOLEX connector, 3 x SATA connector and universal 24-pin motherboard connector. A guarantee of high efficiency is the 80 PLUS compatibility which ensures that at least 80% of energy provided by the power supply is received by computers components and a maximum of 20% of energy is lost in the form of heat. High efficiency allows effective supplying and so the stable operation of the power supply affects the reliability of all components of the computer. Effective cooling is provided by efficient, silent fan of 8 cm diameter. The power supply is ideal for small and medium-sized cases thanks to optimized 36 cm long set of cables. Product is made of durable galvanized steel.

An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protects and prevents motherboard, processor and other parts from damage and stabilize the operation of the power supply so that it works without any unwanted interference. The TFX AK-T1-250 power supply is a high quality product that meets the current requirements and corresponds to modern standards.

Power supply: 250 W
Fan: 8 cm
PFC: Yes
MOLEX power connectors: 1
Floppy power connectors: 0
SATA power connectors: 3
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 1
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 0
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: Yes
Certificates 80+: 80 PLUS Gold
Filters / protection: Thermal
Filters / protection: Surge
Filters / protection: Circuit
Filters / protection: Current too high
Filters / protection: Voltage drop
Filters / protection: Overload
Accessories included:
Dimensions:

175 x 85 x 65 mm

Weight: 836.4 gram
Other features:

• Format TFX
• Series Ultimate
• Supply voltage 230 V
• Power consumption< 3 A
• Efficiency> 80 %
• Current on the +3.3V rail15 A
• Current on the +5V rail15 A
• Maximum load on +3.3V and +5V line80 W
• Current on the +12V rail16 A
• Maximum load on 12V line192 W
• Power inlet IEC C14
• Ground wire
• Fan adjustments Automatic
• Cable length 30 cm
• MaterialGalvanized steel
• MTBF 100000 h
• Temperature 5 – 50 °C
• Package Foil
• Package size (L x W x H)252 x 110 x 68 mm
• Gross weight846.4 g
• CE compatibility
• RoHS compatibility
• REACH compatibility

Designation:
