AKYGA захранващ блок TFX 300W

AKYGA захранващ блок TFX 300W

Description:

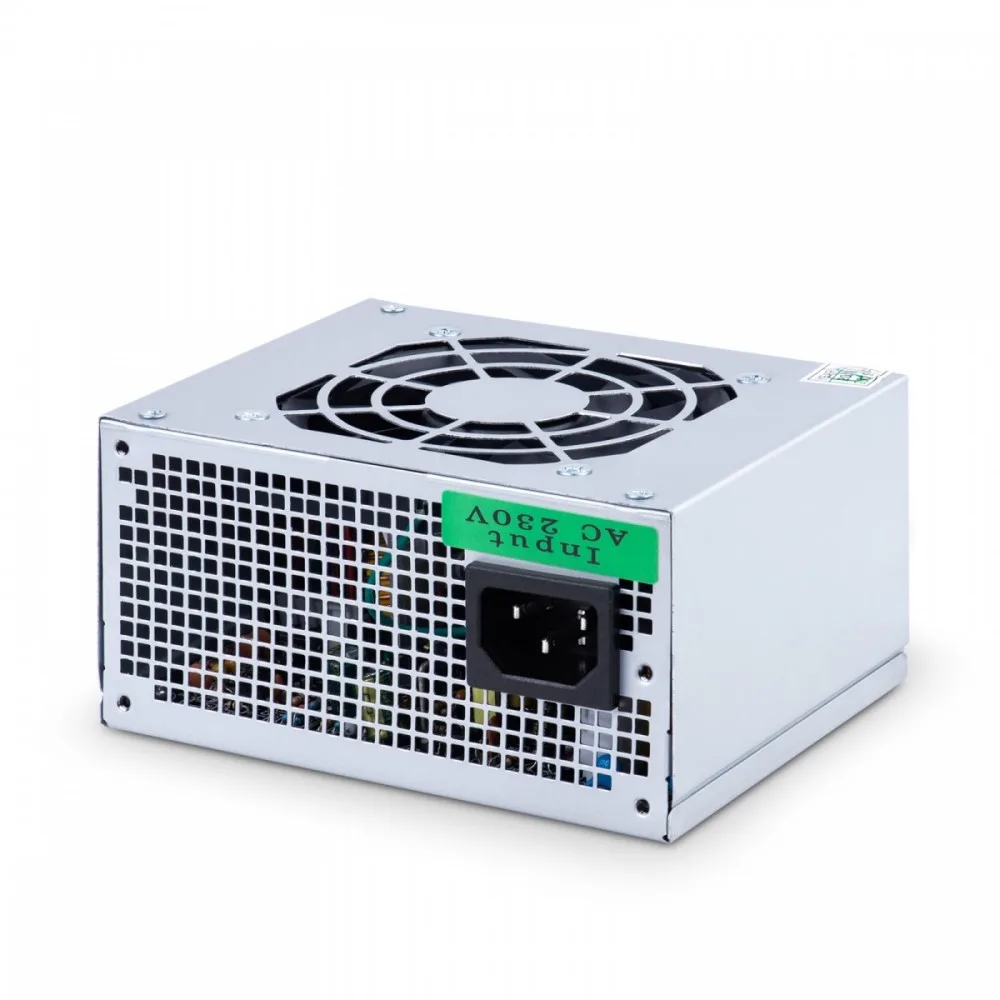

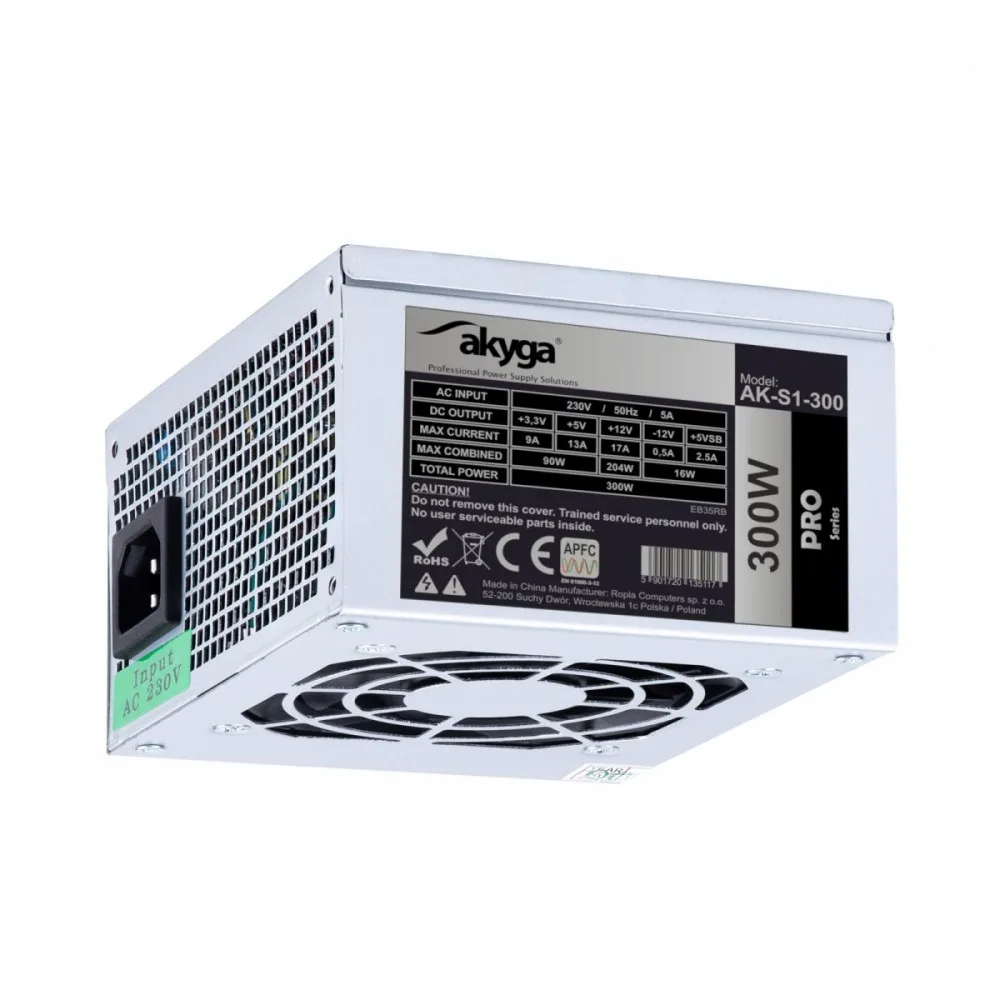

The modern SFX Akyga AK-S1-300 Pro series power supply with 300W power has been designed for mounting in compact computer enclosures in which space is limited.

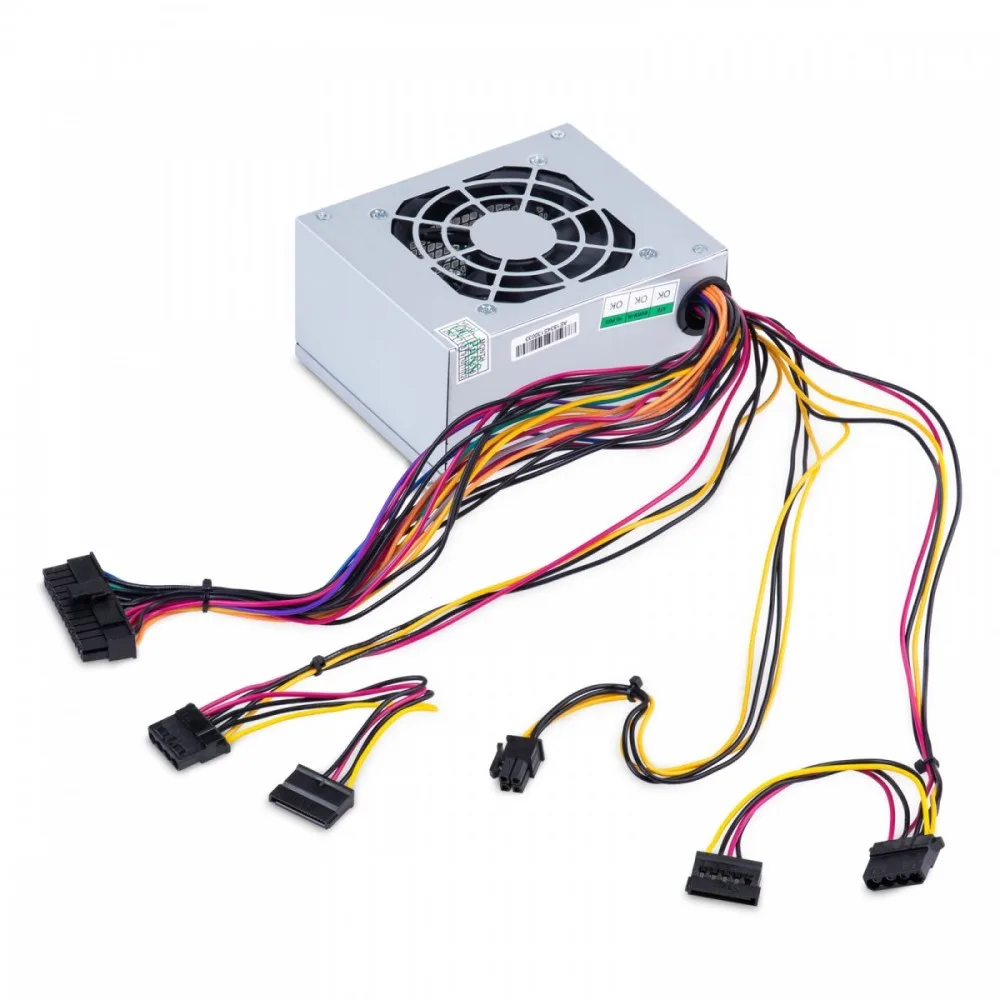

SFX has been equipped with a P4 4pin power connector, 2 MOLEX connectors, 2 SATA connectors and a universal 24pin connector for motherboards. For a better cooling effect, it has an 80 mm silent fan with automatic speed control. The power supply is characterized by high efficiency above 70%. It was made of durable, galvanized steel.

The PFC filter and a number of protections (OVP, OCP, OPP, OTP, SCP, UVP) ensure stability of both the power supply itself and the powered components, protecting against damage, including motherboard and processor.

Power supply: 300 W
Fan: 8 cm
PFC: Passive
MOLEX power connectors: 2
SATA power connectors: 2
Number of power supply connector 4-pin 12V: 1
MB power connector: 20 + 4 pin
Modular power supply: No
Form Factor: SFX
Certificates 80+: None
Filters / protection: Voltage drop
Filters / protection: Thermal
Filters / protection: Automatic fan speed control
Filters / protection: Overload
Filters / protection: Surge
Filters / protection: Circuit
Filters / protection: Current too high
Dimensions:

63.5 x 125 x 100 mm

Weight: 0.8 kilogram
Other features:

• Format SFX
• Series Pro
• Supply voltage 230 V
• Power consumption< 5 A
• Efficiency> 70 %
• Current on the +3.3V rail9 A
• Current on the +5V rail13 A
• Maximum load on +3.3V and +5V line90 W
• Current on the +12V rail17 A
• Maximum load on 12V line204 W
• Ground wire
• Power supply connector IEC C14
• Fan adjustments Automatic
• Cable length 30 – 60 cm
• Material Galvanized steel
• Product color Black
• MTBF 100000 h
• Temperature 5 – 50 °C
• Package Foil
• Package size (L x W x H)63,5 x 125 x 150 mm
• Gross weight 0.8 kg
• CE compatibility
• RoHS compatibility
• REACH compatibility
