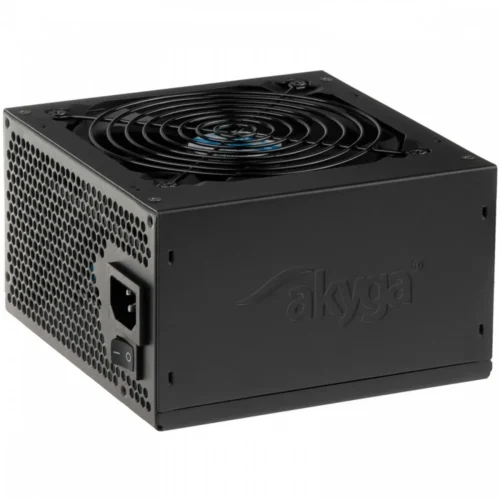

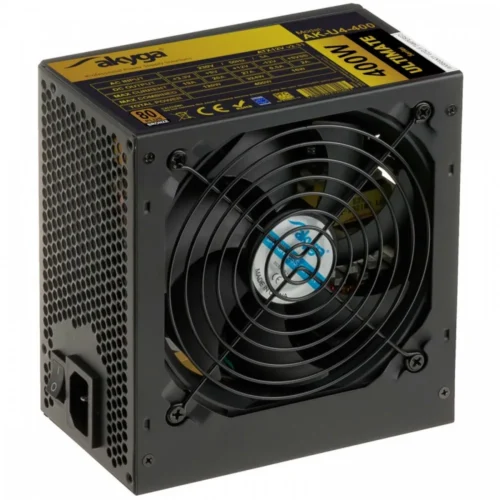

AKYGA захранващ блок ATX 400W U4

AKYGA захранващ блок ATX 400W U4

Description:

• High efficiency guarantee  certified power supply with 80 PLUS Bronze standard
• Real power  the power supply provides 400 W of continuous power
• Rich connector package  the product has a set of necessary plugs
• Quiet operation  optimum cooling when working at top speed is ensured by an efficient 12 cm fan
• Guaranteed reliability  the product has an extended warranty up to 36 months
• A set of protections  protection of the device against damage is guaranteed by a number of protections
• Convenient installation  long 45 – 75 cm cables provide freedom when installing in a housing

Power supply: 400 W
Fan: 12 cm
PFC: Active
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 6
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 1
Number of power supply connector 4+4-pin 12V: 1
PCI-E 6-pin power connectors: 1
Number of power supply connectors PCI-E 6 +2 pin: 1
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: Yes
Certificates 80+: 80 PLUS Bronze
Filters / protection: Current too high
Filters / protection: Voltage drop
Filters / protection: Thermal
Filters / protection: Circuit
Filters / protection: Automatic fan speed control
Filters / protection: Overload
Filters / protection: Surge
Accessories included:

Power cable included

Dimensions:

140 x 150 x 90 mm

Weight: 1.19 kilogram
Other features:

• Product codeAK-U4-400
• Product typeComputer power supply
• FormatATX 2.31
• SeriesUltimate
• Responsible EntityAkyga Europe Sp. z o.o., 52-200 Suchy Dwór, Wrocławska 1c, Polska/Poland, contact@akyga.com
• Supply voltage230 V
• Power consumption< 5 A
• Efficiency> 80 %
• 80 PLUS compatibilityYes
• 80 PLUS certificateBronze
• Current on the +3.3V rail19 A
• Current on the +5V rail20 A
• Maximum load on +3.3V and +5V line120 W
• Current on the +12V rail27 A
• Maximum load on 12V line324 W
• Maximum power400 W
• Mainboard Power Connector24-pin
• Power connector ATX12V P4None
• Power connector EPS12V 8 pin1 pc ( 4 + 4-pin )
• Power connector PCI-E 6 pin1 pc
• Power connector PCI-E 6+2 pin1 pc
• Power connector PCI-E 8 pinNone
• Molex connector2 pcs
• Mini-Molex connector1 pc
• SATA connector6 pcs
• Modular power supplyNo
• PFC filterActive
• Mechanical switchYes
• Ground wireYes
• OVPYes
• OCPYes
• OPPYes
• OTPYes
• SCPYes
• UVPYes
• Power supply connectorIEC C14
• Fan size120 mm
• Fan adjustmentsAutomatic
• Cable length45 – 75 cm
• The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
• The cable plug #2IEC C13
• Power cable includedYes
• MaterialGalvanized steel
• Product colorBlack
• MTBF100000 h
• Temperature5 – 50 °C
• PackageEcoBox
• Product size (L x W x H)140 x 150 x 90 mm
• Package size (L x W x H)222 x 155 x 95 mm
• Net weight1.19 kg
• Gross weight1.43 kg
• CE compatibilityYes
• FCC compatibilityNo
• RoHS compatibilityYes
• REACH compatibilityYes
• Included accessoriesCable IEC C13
• EAN code5901720131423
• Warranty36 months
