AKYGA захранващ блок 400W ATX

AKYGA захранващ блок 400W ATX

Description:

The Akyga AK-FL-400 is a modular ATX power supply unit with an output of 400 W. Its main and most distinctive feature is the absence of a built-in fan. This makes it an excellent choice for compact and, above all, quiet computer systems. However, what really sets the AK-FL-400 apart is its modularity. The user has complete freedom in the configuration of the cables, which not only enables a better organisation of the cables in the case, but also optimises airflow, favouring more efficient heat dissipation. Furthermore, a major advantage of the AK-FL-400 ATX power supply is its high efficiency, which complies with the requirements of the 80 PLUS certification.

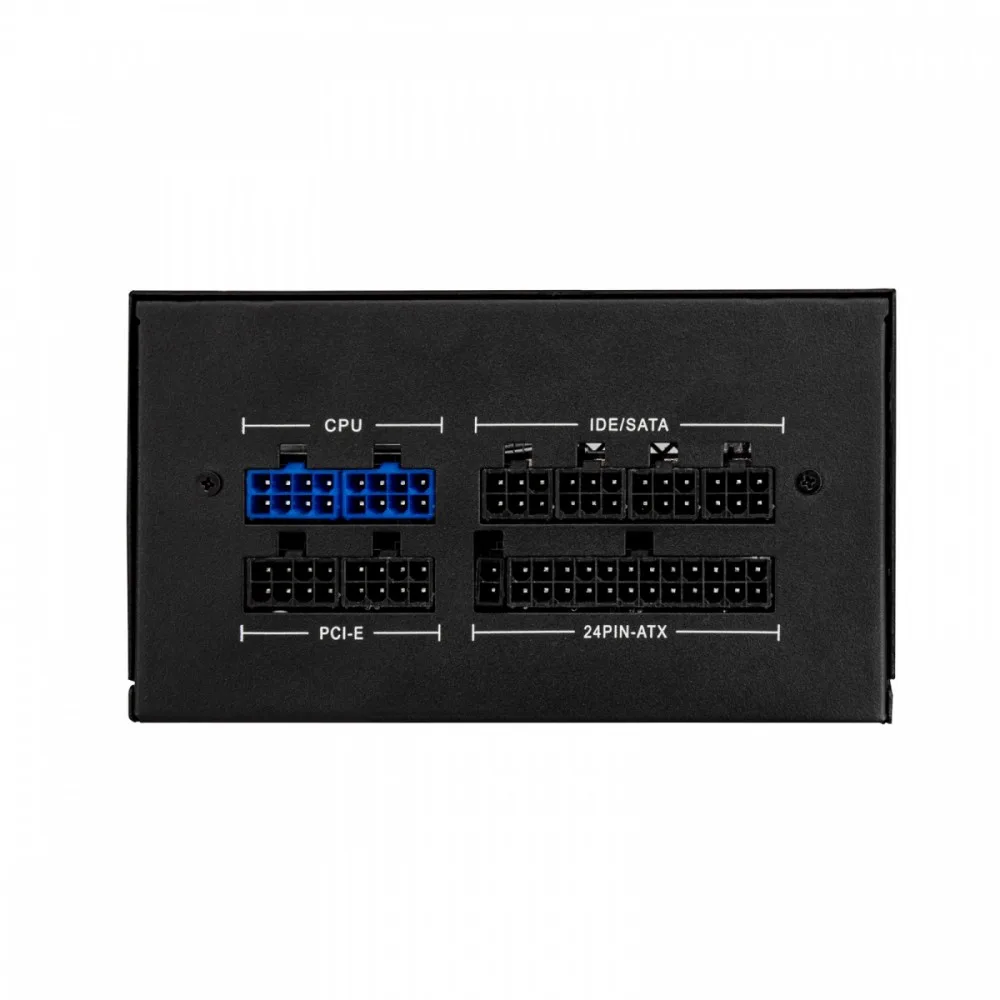

Among the available modular connectors:

• P1 (20+4-pin) for motherboard connection, ensuring compatibility with various interfaces,
• P8 (4+4-pin) offering additional power for CPUs, especially demanding ones,
• PCI-e 4+4-pin, ideal for graphics cards,
• 4 SATA connectors for the connection of HDD/SSD drives, and
• 2 Molex connectors for legacy devices or fans.

Power supply: 400 W
Fan: None
Fan speed (min): 0 rotations per minute
Fan speed (max): 0 rotations per minute
PFC: Active
MOLEX power connectors: 2
Floppy power connectors: 0
SATA power connectors: 4
Number of connectors PATA: 0
Number of power supply connector 4-pin 12V: 0
8-pin 12V power connectors: 0
Number of power supply connector 4+4-pin 12V: 1
PCI-E 6-pin power connectors: 0
Number of power supply connectors PCI-E 6 +2 pin: 1
PCI-E 8-pin power connectors: 0
Number of power connectors PCI-E 16-pin Gen 5: 0
Number of power connectors 12VHPWR: 0
Number of USB 10p connectors: 0
MB power connector: 24 pin
Modular power supply: Yes
Certificates 80+: 80 PLUS
Filters / protection: Circuit
Filters / protection: Current too high
Filters / protection: Voltage drop
Filters / protection: Thermal
Filters / protection: Overload
Filters / protection: Surge
Accessories included:

Power cable included

Dimensions:

85 x 150 x 160 mm

Weight: 1218 gram
Other features:

• FormatATX 2.31
• SeriesFanless
• Supply voltage 230 V
• Power consumption 5 A
• Efficiency> 80 %
• Current on the +3.3V rail18 A
• Current on the +5V rail18 A
• Maximum load on +3.3V and +5V line75 W
• Current on the +12V rail33.4 A
• Maximum load on 12V line312 W
• Mechanical switch
• Ground wire
• Power supply connectorIEC C14
• The cable plug #1Hybrid standard C/E/F ( CEE 7/7 )
• The cable plug #2IEC C13
• Power cable included
• Material Galvanized steel
• Product color Black
• MTBF 100000 h
• Temperature 0 – 40 °C
• Package EcoBox
• Gross weight1888 g
• CE compatibility
• RoHS compatibility
• REACH compatibility
