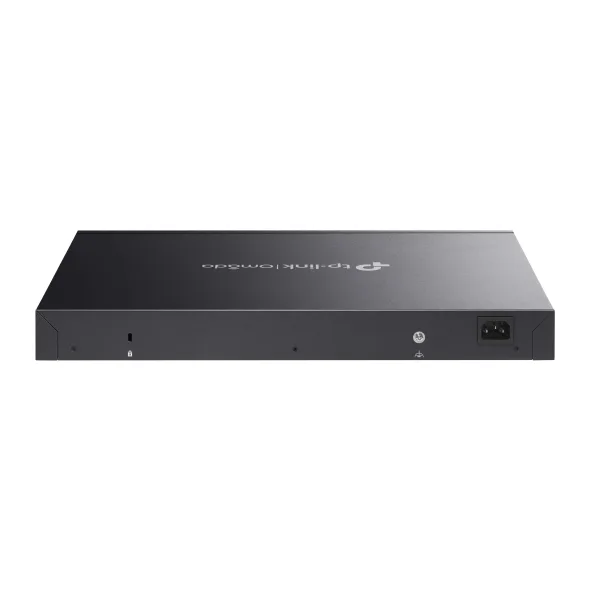

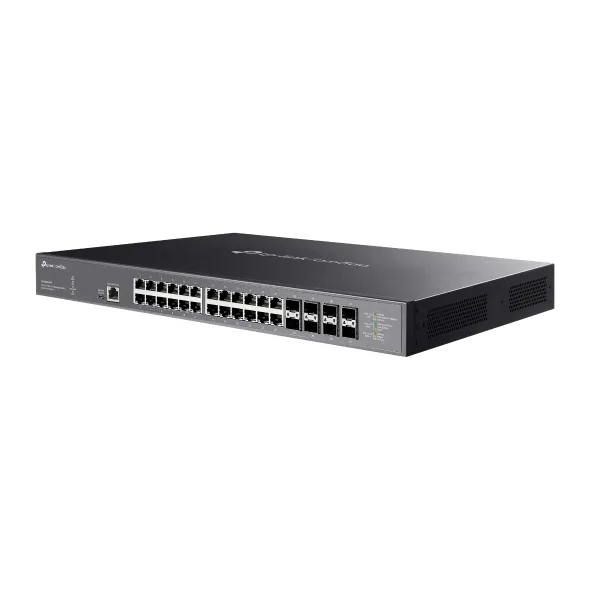

32-портов 10GE L2+ управляем комутатор с 24-портов PoE++ TP-Link Omada SX3832MPP

32-портов 10GE L2+ управляем комутатор с 24-портов PoE++ TP-Link Omada SX3832MPP
Ethernet портове : 8× 1/10G SFP+ Slots
ХИТ : N
Brand : TP-LINK
VLAN : Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
Гаранция : 60 месеца
VLAN : VLAN VPN: VLAN Mapping, VLAN Replace
Критерии за валидност на гаранцията : Гаранционна карта/Сериен номер
VLAN : MAC VLAN: 256 Entries
Quality of Service : Support 802.1p CoS/DSCP priority
L2 Switching Features : Mirroring
L2 Switching Features : Loop back detection
L2 Switching Features : L2 Multicast Table
L2 Switching Features : Link Aggregation
Ethernet портове : 1× RJ45 Console Port
IPv6 : Path maximum transmission unit (MTU) discovery
IPv6 : IPv6 Interface
IPv6 : IPv6 ACL
IPv6 : IPv6 applications
IPv6 Applications : IPv6 SSL
IPv6 Applications : IPv6 TFTP
IPv6 Applications : Ping6
L2 Switching Features : Gratuitous ARP
L2 Switching Features : DHCP Server
IPv6 : TCPv6/UDPv6
Интерфейс : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
IPv6 : IPv6 Dual IPv4/IPv6
Ethernet портове : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps PoE++ RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
IPv6 : IPv6 neighbor discovery (ND)
IPv6 : Static IPv6 Routing
IPv6 Applications : DHCPv6 Client
IPv6 Applications : Http/Https
IPv6 Applications : IPv6 SNMP
L2 Switching Features : DHCP Relay – DHCP Interface Relay – DHCP VLAN Relay
IPv6 Applications : IPv6 SSH
L2 Switching Features : Static Routing: 48 IPv4/IPv6 Static Routes
L2 Switching Features : DHCP L2 Relay
L2 Switching Features : 802.3x Flow Control
L2 Switching Features : Static ARP: 128 static entries
L2 Switching Features : 510 ARP Entries
L2 Switching Features : Spanning Tree Protocol
Quality of Service : Bandwidth Control
Quality of Service : Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
Quality of Service : Smoother Performance
Quality of Service : Queue scheduling: SP, WRR, SP+WRR
Quality of Service : 8 Priority Queues
Quality of Service : Port/Flow-based Rating Limiting
L2 Switching Features : 128 IP Interfaces: Support IPv4/IPv6 Interface
VLAN : Max. 4K VLAN Groups
VLAN : 802.1q Tagged VLAN
VLAN : Private VLAN
VLAN : GVRP
VPN : VLAN Mapping
VPN : VLAN Replace
IPv6 : Internet Control Message Protocol (ICMP) version 6
VLAN : Voice VLAN
Вид на монтаж : Rackmount
Влажност на съхранение : 5%~90% без кондензация
Експлоатационни качества : Packet Forwarding Rate 240 Mpps
Експлоатационни качества : Packet Buffer Memory 24 Mbit
Експлоатационни качества : MAC Address Table 32 K
Работна влажност : 10%~90% без кондензация
Работна температура : -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
IPv6 Applications : Tracert6
Интерфейс : 8× 1/10G SFP+ Slots
Експлоатационни качества : Switching Capacity 640 Gbps
Експлоатационни качества : Jumbo Frame 9 KB
IPv6 : Multicast Listener Discovery (MLD) Snooping
L2 Switching Features : Proxy ARP
Захранване : 100-240 V AC~50/60 Hz
Интерфейс : 1× USB Type C Console Port
Ethernet портове : 1× USB Type C Console Port
IPv6 Applications : Telnet(v6)
Интерфейс : 1× RJ45 Console Port
Сертификати : CE, FCC, RoHS
Сигурност : • IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard: 96 Entries • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard: 95 Entries • DoS Defend • DHCP Filter • Static/D
Тип : Omada
Управление/Management : SNMP v1, v2, and v3
Управление/Management : SDM Template
Управление/Management : Password Recovery
Управление/Management : Dual Image, Dual Configuration
Управление/Management : IEEE 802.3az Energy Efficient Ethernet (EEE)
Управление/Management : DHCP/BOOTP Client
Управление/Management : DHCP AutoInstall
Управление/Management : CPU Monitoring
Управление/Management : Command Line Interface (CLI) through telnet
Тип : Управляем
Управление/Management : Cable Diagnostics
Управление/Management : 802.1ab LLDP/LLDP-MED
Управление/Management : SNTP
Управление/Management : System Log
Управление/Management : Web-based GUI
Наличност : Ограничена – под 10 бр.
