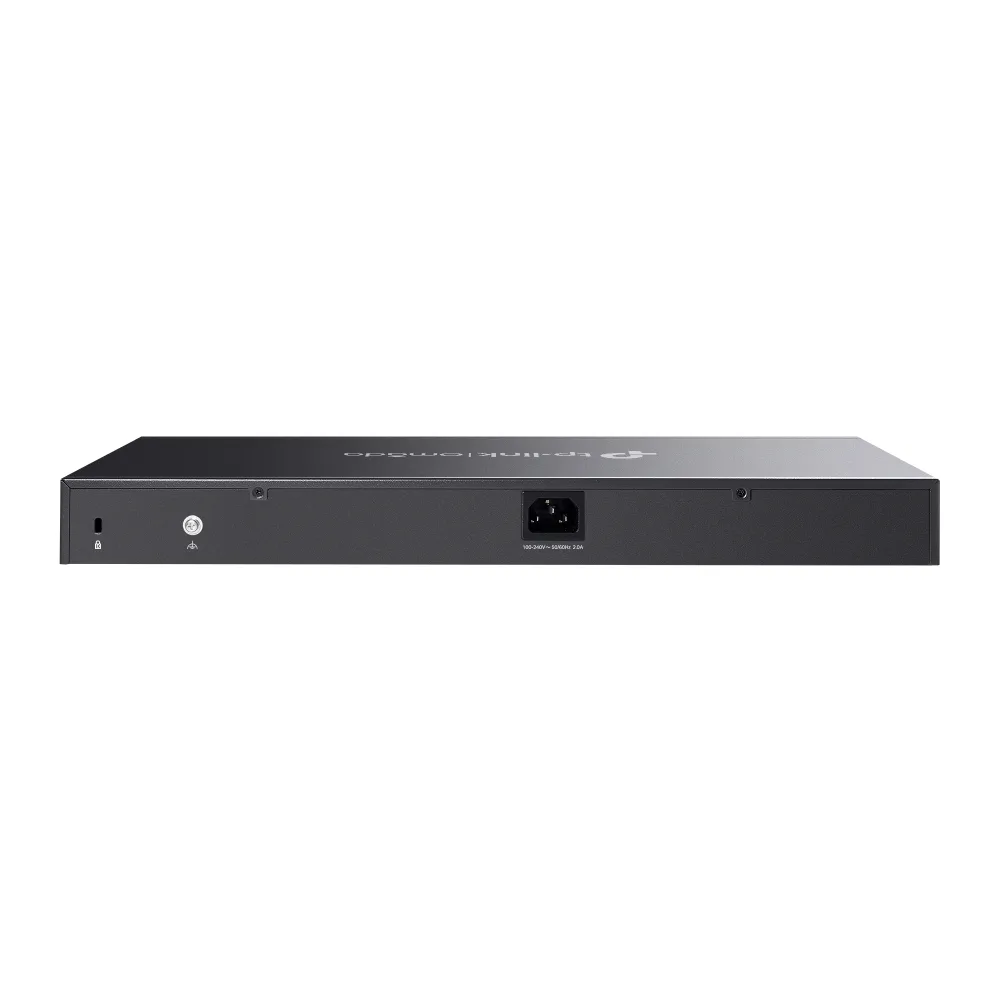

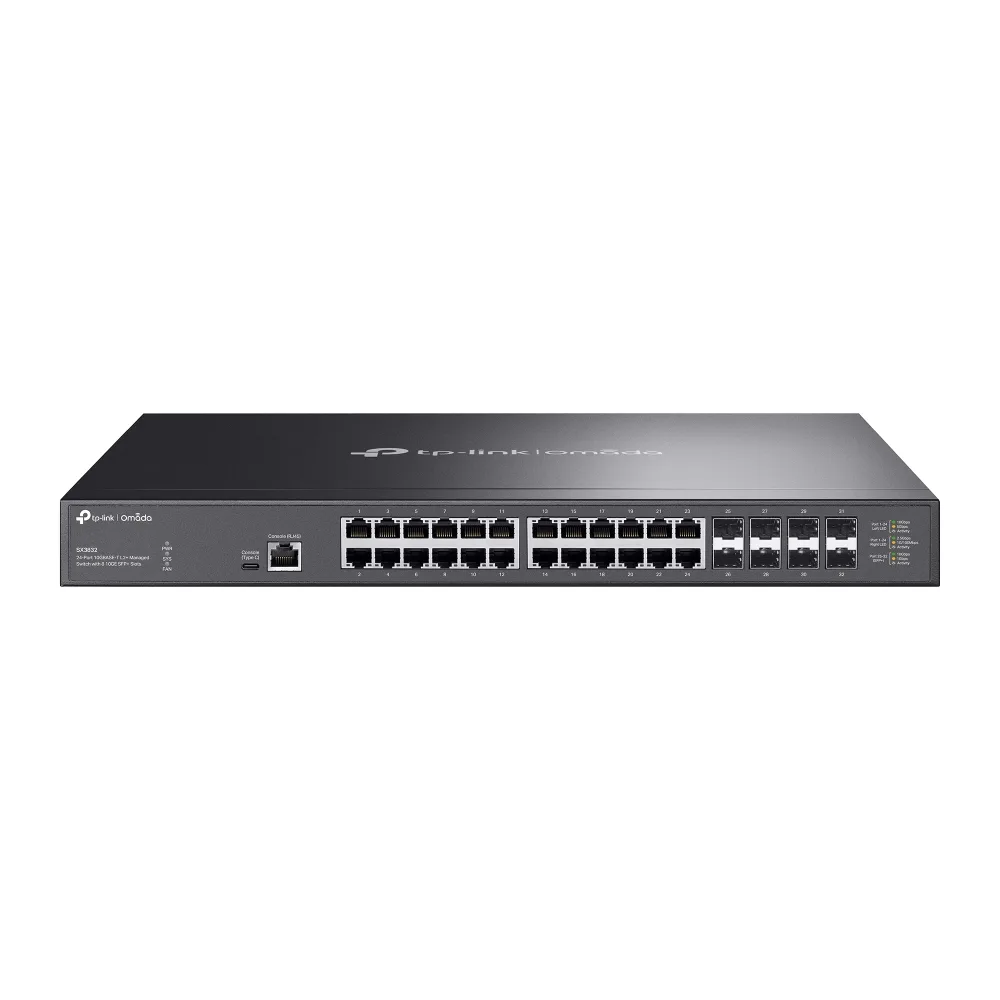

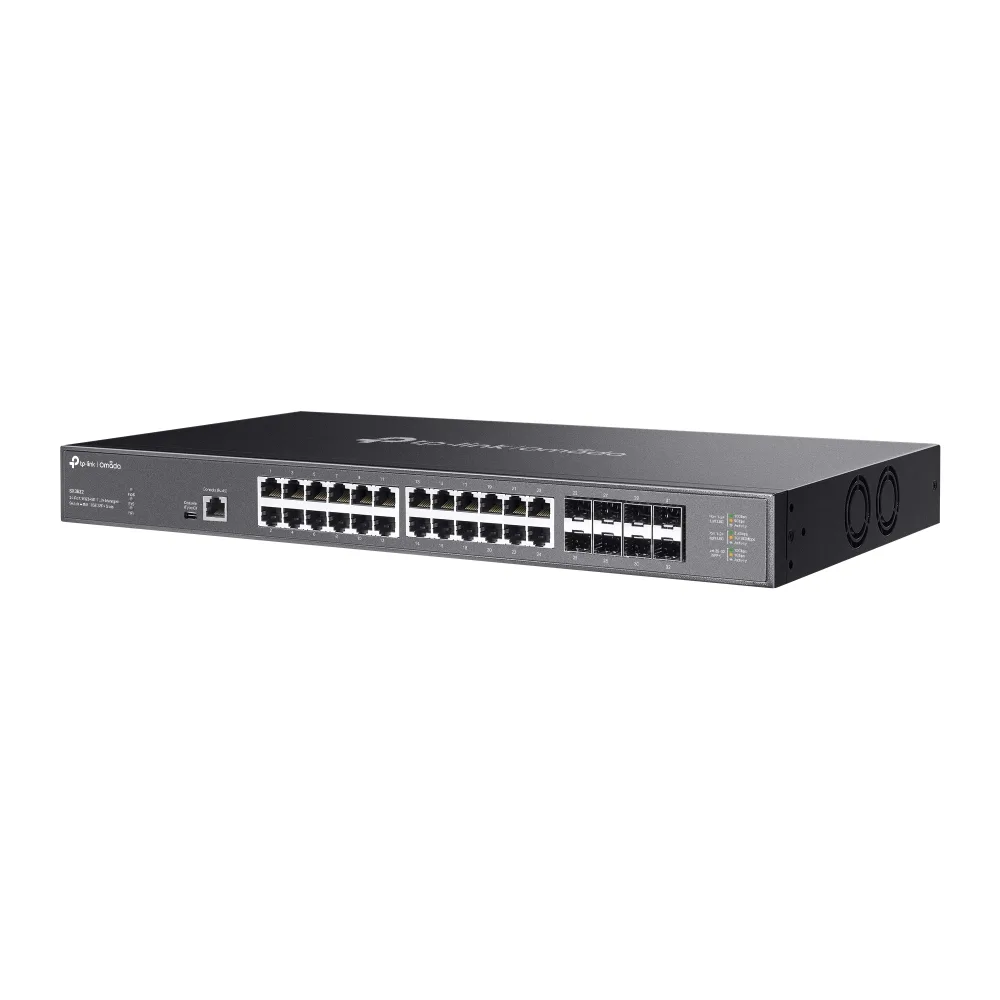

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

24-портов 10GBASE-T L2+ управляем комутатор с 8 10GE SFP+ слота TP-Link Omada SX3832

Версия: 1.0
Управление/Management : System Log
VPN : VLAN Replace
Гаранция : 60 месеца
Quality of Service : Queue scheduling: SP, WRR, SP+WRR
Управление/Management : DHCP AutoInstall
VLAN : VLAN Group
VLAN : GARP/GVRP
Експлоатационни качества : Switching Capacity 640 Gbps
L2 Switching Features : IGMP Snooping Querier
Сигурност : DHCP Snooping
ХИТ : N
Управление/Management : Dual Image, Dual Configuration
Филтър Swich : 24 порта
Управление/Management : Web UI
L3 Switching Features : Static Routing
L2 Switching Features : Static Link Aggregation
Сигурност : IPv4 Source Guard
IPv6 Applications : IPv6 SSL
L2 Switching Features : IGMP Authentication
VLAN : Private VLAN
IPv6 Applications : IPv6 TFTP
Quality of Service : Support 802.1p CoS/DSCP priority
Ethernet портове : 8× 1/10G SFP+ Slots
Охлаждане : Активно
L2 Switching Features : Proxy ARP
Управление/Management : DHCP/BOOTP Client
IPv6 Applications : IPv6 ACL*
Експлоатационни качества : Packet Buffer Memory 24 Mbit
IPv6 Applications : DHCPv6 Client
IPv6 Applications : Http/Https
IPv6 : IPv6 Dual IPv4/IPv6
Quality of Service : Bandwidth Control
IPv6 : IPv6 ACL
Филтър Swich скорост : Switching capacity: 320 Gbps
Интерфейс : 8× 1/10G SFP+ Slots
Софтуерни функции : IEEE 802.3ad: Link Aggregation
Интерфейс : 1× USB Type C Console Port
Тегло, кг. : 4.5 кг
Quality of Service : Smoother Performance
VLAN : Max. 4K VLAN Groups
Тип : Omada
Филтър Swich скорост : 10 Gb SFP+ modules
Сертификати : CE, FCC, RoHS
VLAN : Voice VLAN
L3 Switching Features : DHCP Server/Relay
Захранване : 100-240 V AC~50/60 Hz
Софтуерни функции : Password Recovery*
VLAN : MAC VLAN: 256 Entries
Вид на монтаж : Rackmount
IPv6 : Path maximum transmission unit (MTU) discovery
Управление/Management : EEE
Quality of Service : Support 8 priority queues
L2 Switching Features : CPU Mirroring
Работна влажност : 10%~90% без кондензация
Сигурност : ARP Inspection
Brand : TP-LINK
Validity criteria warranty card : Гаранционна карта/Сериен номер
Съвместимост с мрежови стандарти : IEEE 802.3x Flow Control
Размери дълбочина : 220 mm
Сигурност : Port isolation
IPv6 Applications : IPv6 Interface*
L2 Switching Features : Cable Diagnostics
Софтуерни функции : Omada Software Controller
IPv6 : IPv6 neighbor discovery (ND)
L2 Switching Features : Port Mirroring
Сигурност : Static/Dynamic Port Security
Софтуерни функции : Omada App
Сигурност : Broadcast/Multicast/Unknown-unicast Storm Control
IPv6 : Internet Control Message Protocol (ICMP) version 6
Управление/Management : SNTP
IPv6 Applications : Ping6
Quality of Service : Cable Diagnostics
Ethernet портове : 1× RJ45 Console Port
IPv6 : Multicast Listener Discovery (MLD) Snooping
Сигурност : IP-MAC-Port Binding
VPN : VLAN Mapping
Управление/Management : SDM Template
Управление/Management : Web-based GUI
Размери ширина : 440 mm
Системни изисквания : Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Color : Черен
L2 Switching Features : 802.3x Flow Control
Софтуерни функции : IEEE 802.3x: Flow Control
L3 Switching Features : Static ARP
Сигурност : Secure web management through HTTPS with SSLv3/TLS1.0
L2 Switching Features : MVR
Температура на съхранение : -40℃~70℃ (-40℉~158℉)
Филтър Swich скорост : 10G (100Mbps/1G/2.5G/5G/10G) RJ45
Quality of Service : Action for Flows
L2 Switching Features : Static Routing
Софтуерни функции : Omada Hardware Controller (OC300)
IPv6 Applications : IPv6 SNMP
Експлоатационни качества : Packet Forwarding Rate 240 Mpps
Съвместимост с мрежови стандарти : IEEE 802.1w
Наличност : Ограничена – под 10 бр.
L2 Switching Features : 802.3ad LACP (Up to 8 aggregation groups, containing 8 ports per group)
In stock : LIMITED STOCK
Влажност на съхранение : 5%~90% без кондензация
Филтър Swich – PoE, SFP : SFP+ slots
Софтуерни функции : CPU Monitoring
VLAN : VLAN VPN (QinQ)
L3 Switching Features : DHCP L2 Relay
L2 Switching Features : Multicast Filtering: 256 profiles and 16 entries per profile
Сигурност : IP/Port/MAC based access control
Сигурност : AAA
L3 Switching Features : Proxy ARP
VLAN : Protocol VLAN: Protocol Template 16, Protocol VLAN 16
Сигурност : Access Control List • Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL
Софтуерни функции : Port Mirroring
Сигурност : IEEE 802.1X Port/MAC Based authentication, Radius,Guest VLAN
Тип : Управляем
Софтуерни функции : Omada Hardware Controller (OC200)
L3 Switching Features : 16 IPv4/IPv6 Interfaces
L2 Switching Features : 510 ARP Entries
Управление/Management : Command Line Interface (CLI) through telnet
Интерфейс : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
Работна температура : 0℃~45℃ (32–113 ℉)
Приложение : Rackmount
L3 Switching Features : Gratuitous ARP
Експлоатационни качества : MAC Address Table 32 K
Съвместимост с мрежови стандарти : IEEE 802.1p
Софтуерни функции : Omada Cloud-Based Controlle
Ethernet портове : 24× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
IPv6 Applications : Telnet(v6)
IPv6 : TCPv6/UDPv6
Сигурност : DoS Defence
Интерфейс : 1× RJ45 Console Port
Сигурност : Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6 Applications : IPv6 SSH
Съвместимост с мрежови стандарти : IEEE 802.3ad
L2 Switching Features : MLD v1/v2 Snooping
Размери височина : 44 mm
Съвместимост с мрежови стандарти : IEEE 802.1x
Софтуерни функции : IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
Управление/Management : 802.1ab LLDP/LLDP-MED
VLAN : 802.1q Tagged VLAN
L2 Switching Features : 128 IP Interfaces: Support IPv4/IPv6 Interface
Quality of Service : Rate Limit
L2 Switching Features : Link Aggregation
Управление/Management : RMON (1,2,3,9 groups)
IPv6 : Static IPv6 Routing
Съвместимост с мрежови стандарти : IEEE 802.1d
Управление/Management : SNMP Trap/Inform
IPv6 Applications : Tracert6
VLAN : Selective QinQ
L2 Switching Features : IGMP Snooping V1/V2/V3
