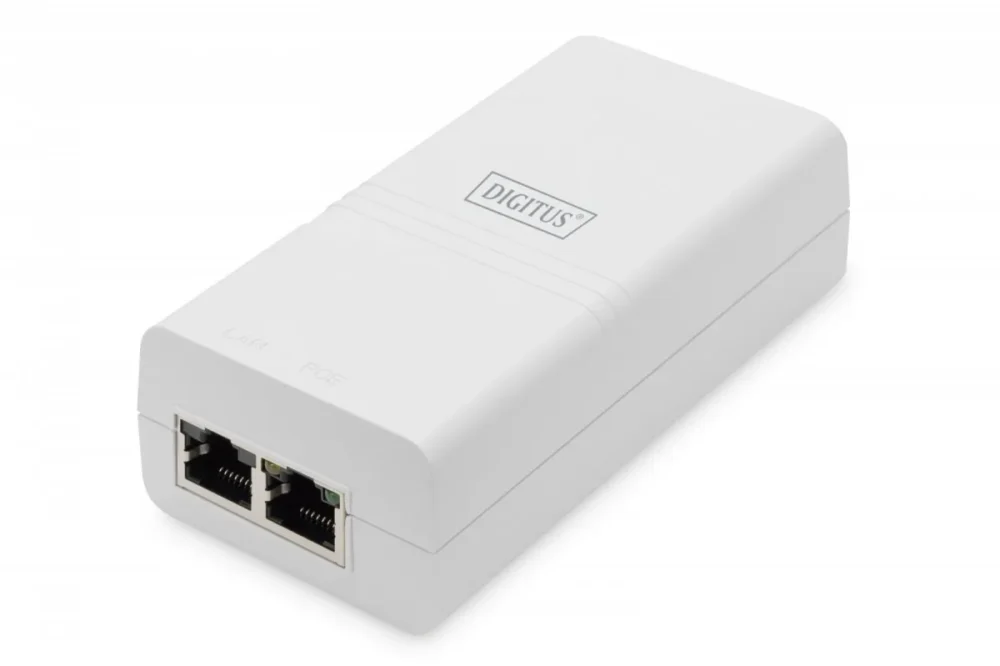

Digitus PoE Injector, 802.3af DN-95131

Digitus PoE Injector, 802.3af DN-95131

Description:

The effective connection distance is 100 meters on Cat5e/Cat6 cable. The solution is small in size and offers high efficiency.

The DN-95131 is an active indoor PoE midspan injector power supply designed specifically for complex backhaul and networking applications. Provides 48V DC, 0.32A power for external devices requiring PD power through 2 pairs of output sockets. The solution supports both 10/100 Base-T and Gigabit compatible devices. Suitable for devices that support 15.4W Power over Ethernet PD, such as wireless access points, WLAN routers, network cameras, IP phones, radios and other end devices compatible with Power over Ethernet. The solution is fully compliant with the IEEE802.3af PoE standard. The device has a fireproof plastic housing with protection class IP40. Supports a wide input voltage range of 100-240 VAC, 50 or 60 Hz. Inside there is a chip with a detection function that recognizes and classifies the device requiring power (PD) before power is supplied to the device. Provides power only when a device supporting the PD (Power Delivery) standard is detected.

• Provides 48V DC, 0.32A power to external PD-compatible devices via 2 pairs of outputs
• Support for both 10/100 Base-T and Gigabit compatible devices
• The solution supports a wide input voltage range of 100-240 V AC, 50 or 60 Hz
• Conveniently combine power and data cables in one cable
• Each output port offers output current limiting, short circuit protection, full power-demanding device (PD) detection and classification.
• Injector can be used regardless of the operating system

I/O ports: 1 x 10/100/1000 Mbit/s PoE
I/O ports: 1 x 10/100/1000 Mbit/s
Output voltage: 48 Volt
Rated current: 320 mA
Input voltage range: 100~240 VAC 47~63 Hz
Accessories included:

• 1 x network cable
• 1 x User Manual

Height: 30 Millimetre
Width: 46 Millimetre
Depth: 85 Millimetre
Weight: 100 gram
Other features:

• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-Tx Fast Ethernet
• IEEE802.3ab 1000Base-T Gigabit Ethernet
• Full compatibility with the IEEE802.3af PoE standard
• RoHS compliant
• WEEE compliant
• Input: 100-240 V AC 0.5 A 50/60 Hz
• Output: 48V DC 320mA
• Current connectors: 4/5(+), 7/8(-)
• Data transfer rate: 10/100/1000 Mbps
• Operating temperature: 0 to 40
• Air humidity during operation: from 20% to 80%, non-condensing
• Storage/storage temperature: -20 to 70
• Permissible air humidity in the storage place: from 10% to 90%, without condensation
• Working altitude: up to 2000 meters
• Safety approvals: CE/FCC
• Body: Plastic
• White color
• IP protection class: IP40
• Operating mode indicator light: Yellow
• PoE load indicator light: Green
